Electrode Layouts

EegFun.jl includes a comprehensive collection of electrode layout files that define the spatial positions of EEG channels for various montage systems. These layouts are essential for topographic plotting, channel interpolation, and spatial analyses.

Overview

Layout files are stored in CSV format with three required columns:

• label: Channel name (Symbol)

• inc: Incidence angle in degrees (vertical angle from vertex)

• azi: Azimuth angle in degrees (horizontal angle)

The polar coordinates (inc, azi) serve as the Source of Truth for electrode positions. Cartesian coordinates (2D and 3D) are computed on-demand from these polar coordinates.

Sources

The electrode layout files included in EegFun.jl were obtained from the following sources:

• BioSemi: Downloaded from BioSemi Head Cap Specifications

• BrainProducts actiCap: Downloaded from BrainProducts Cap Montages

• EasyCap: Generated with reference to:

  • FieldTrip template layouts (fieldtrip/template/layout/)

  • MNE-Python channel montages (mne-python/mne/channels/data/montages)

  • EasyCap electrode layout documentation (PDF) - Converted to polar coordinates (label, inc, azi) for consistency with BioSemi format

Usage

# Load a layout file
layout = EegFun.read_layout("./resources/layouts/biosemi/biosemi72.csv")

# Convert to 2D Cartesian coordinates (preserving radial distances)
EegFun.polar_to_cartesian_xy!(layout)

# Calculate neighbors
EegFun.get_neighbours_xy!(layout, 0.3)

# Plot the layout with neighbours; hover over electrodes to see neighbours
EegFun.plot_layout_2d(layout; neighbours=true)

EegFun.get_neighbours_xyz!(layout, 0.5)
EegFun.plot_layout_3d(layout; neighbours=true)

Available Layouts

BioSemi

Standard BioSemi ActiveTwo electrode caps and extended montages:

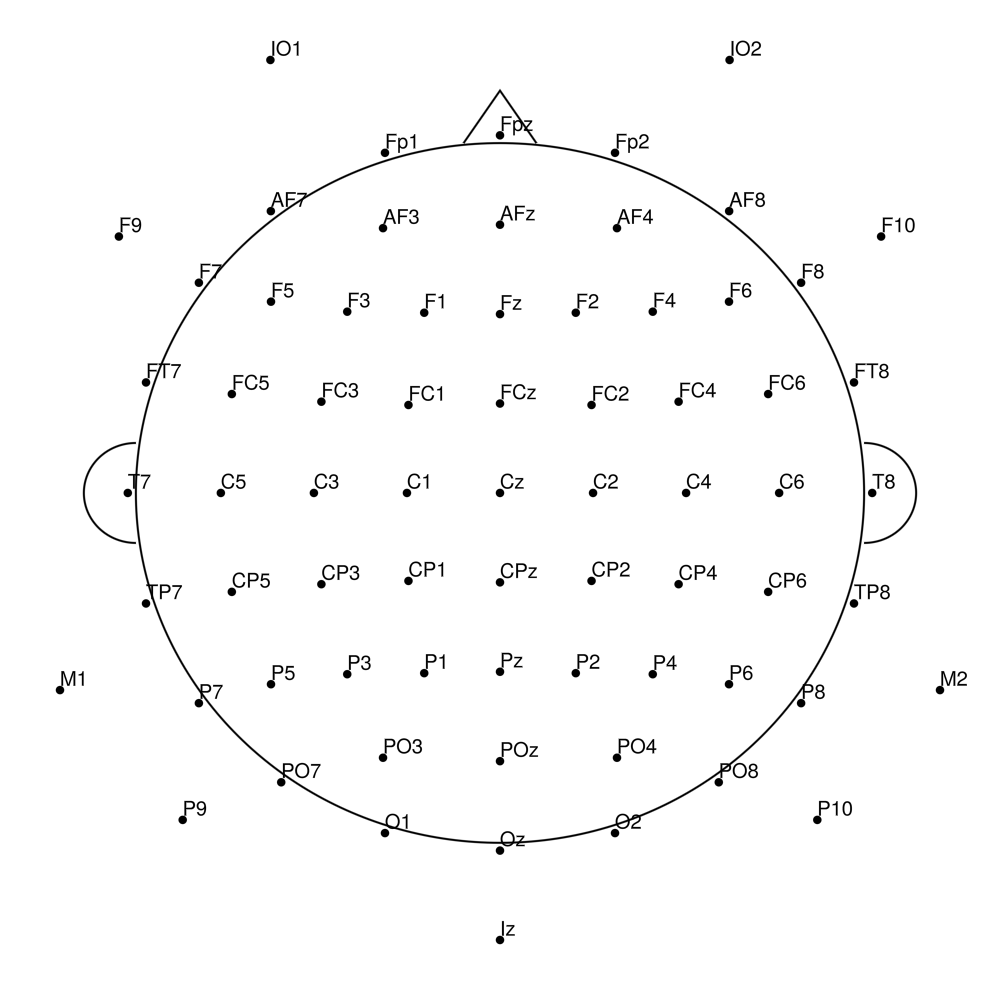

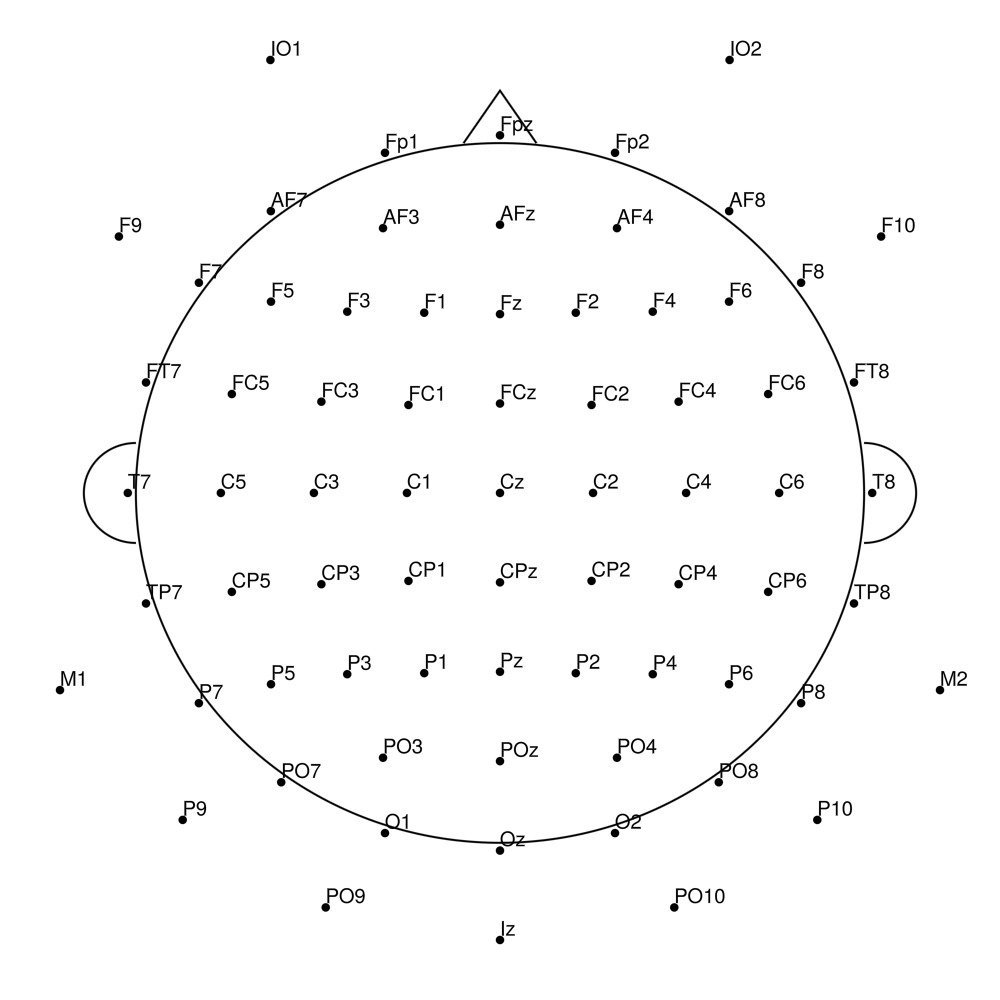

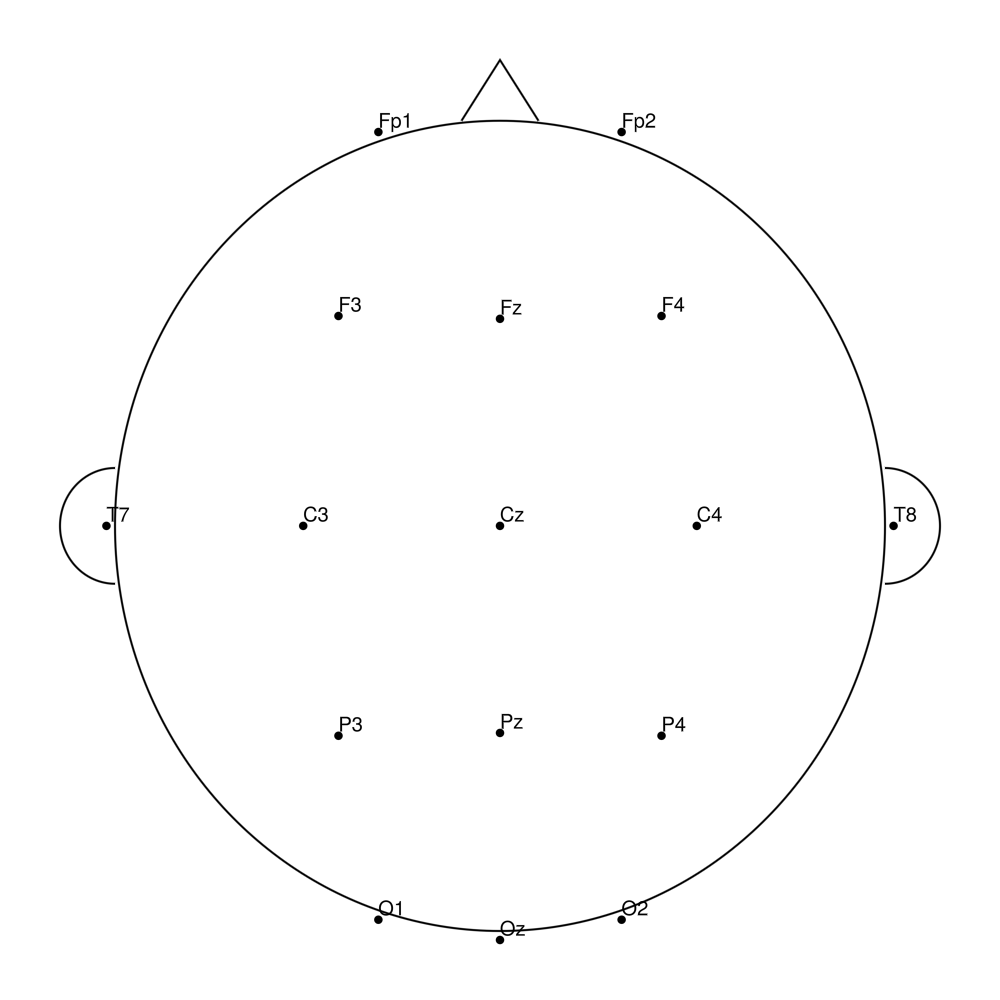

biosemi16 (16 channels) - Standard 16-channel montage

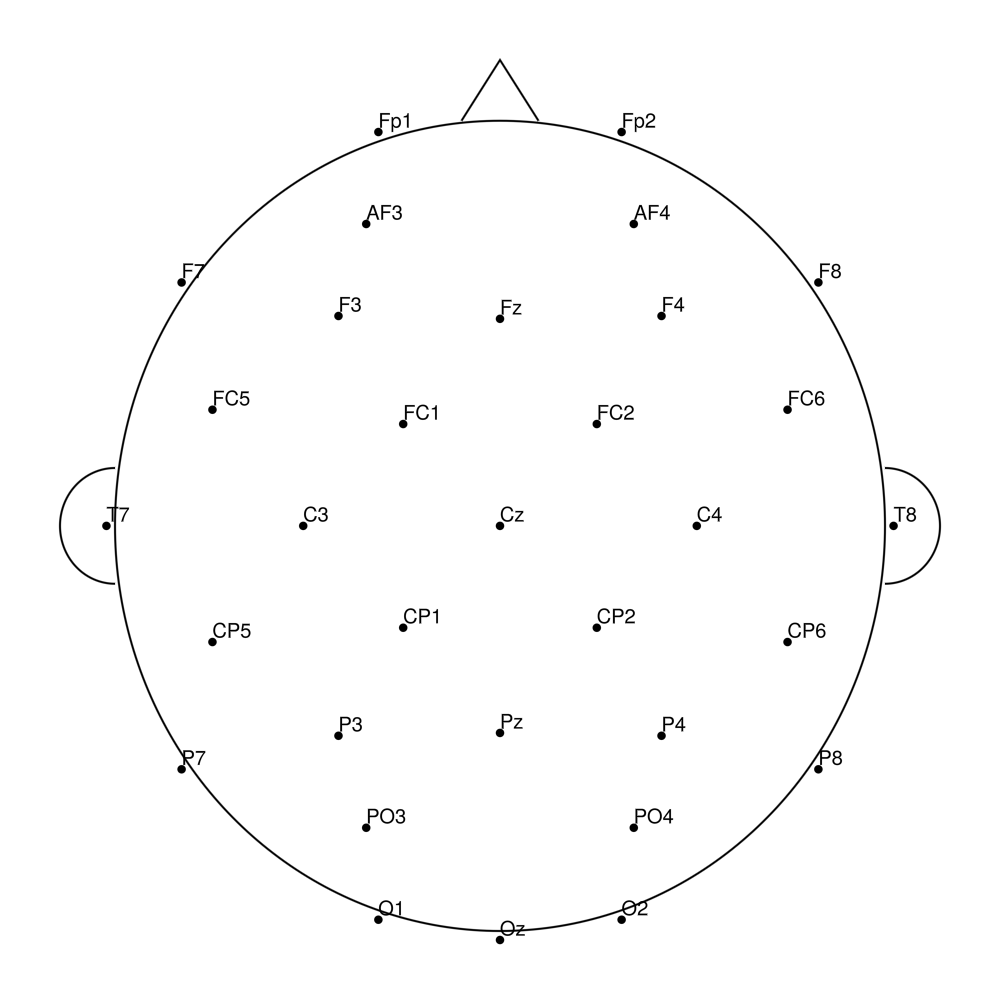

biosemi32 (32 channels) - Standard 32-channel montage

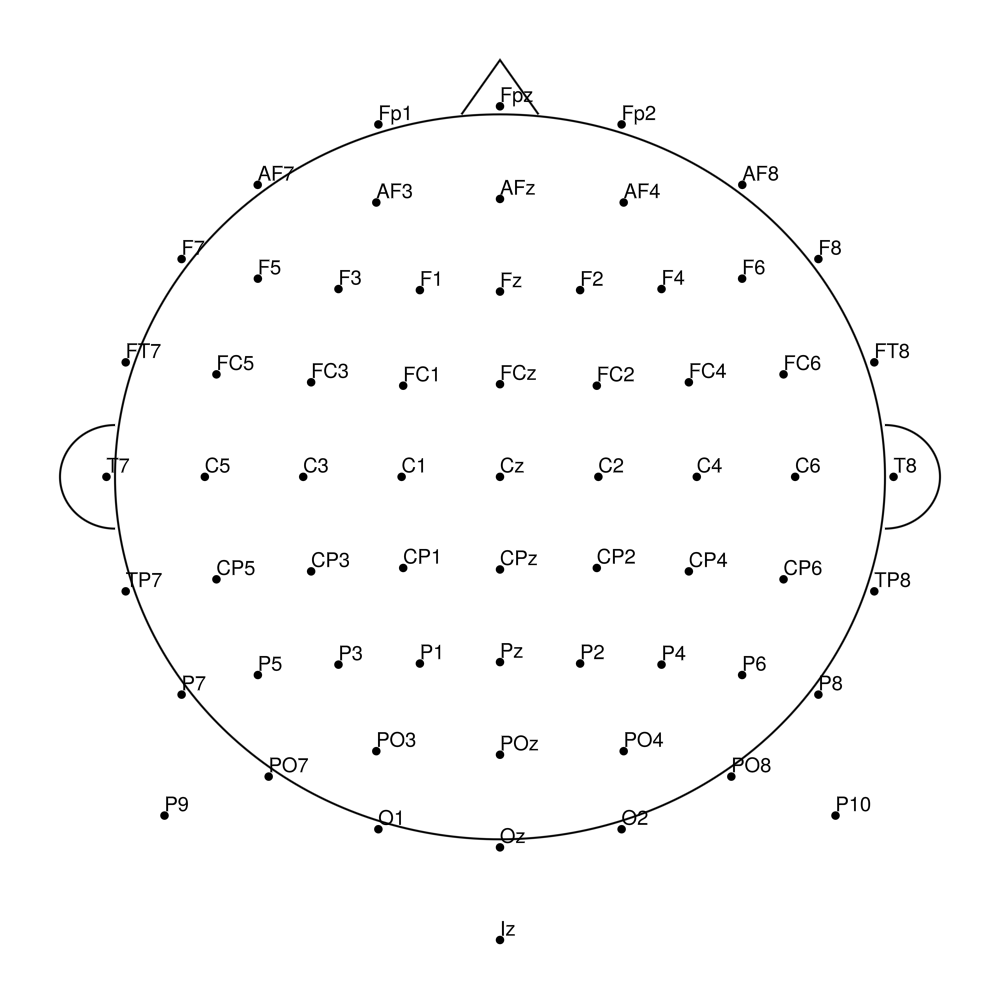

biosemi64 (64 channels) - Standard 64-channel montage

biosemi70 (70 channels) - 64 + 6 external channels

biosemi72 (72 channels) - 64 + 8 external channels

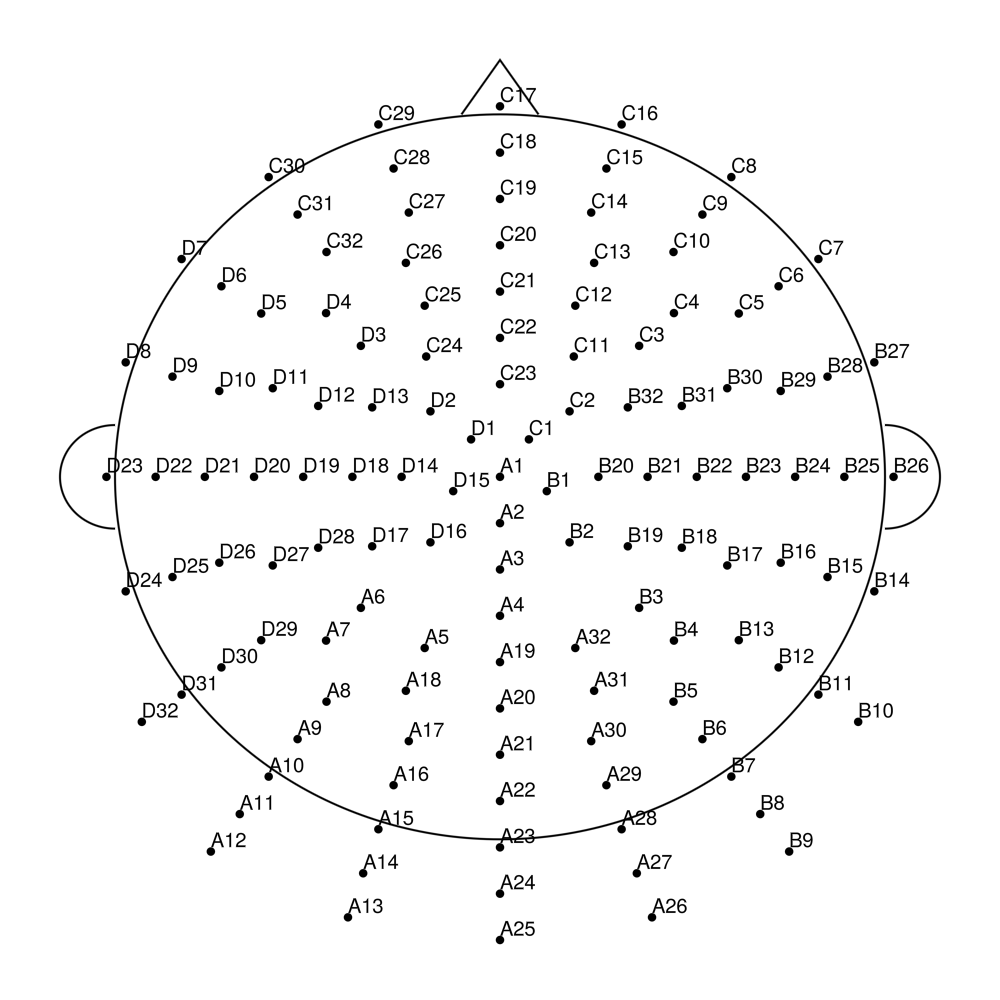

biosemi128 (128 channels) - Standard 128-channel montage

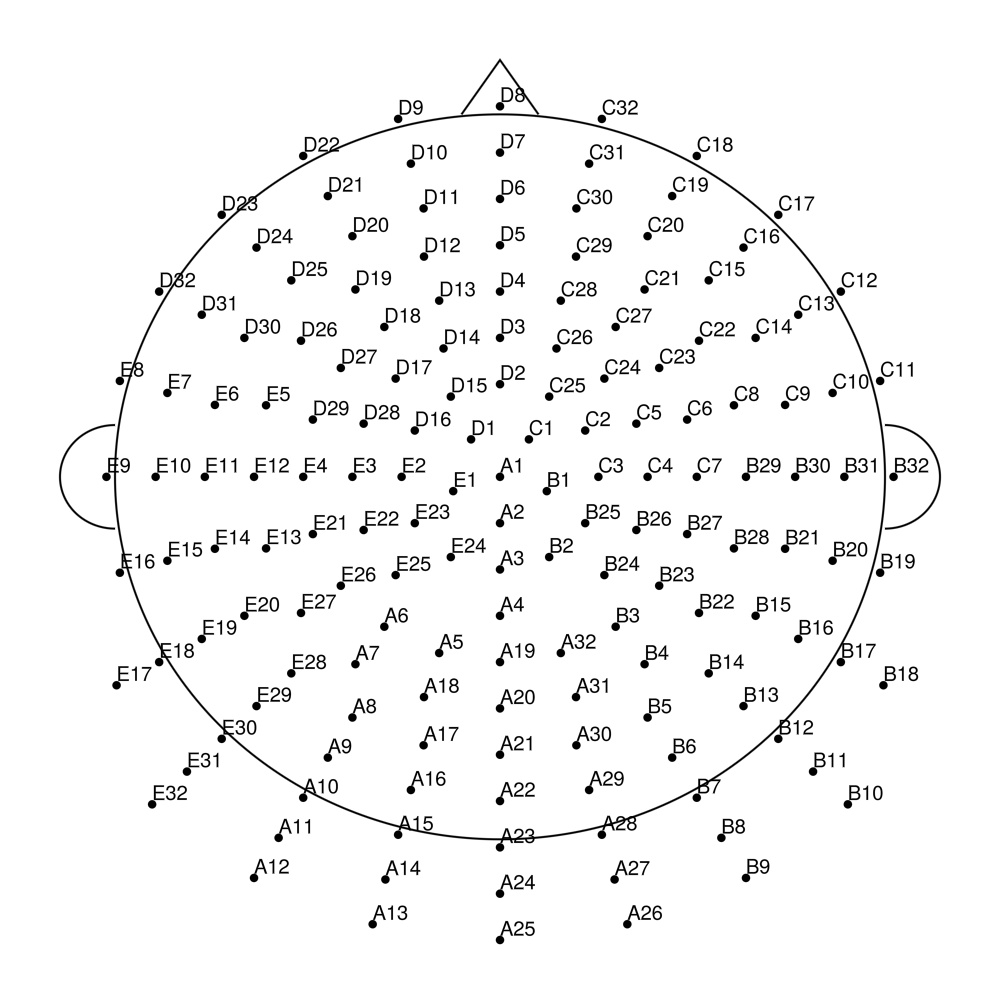

biosemi160 (160 channels) - Extended high-density montage

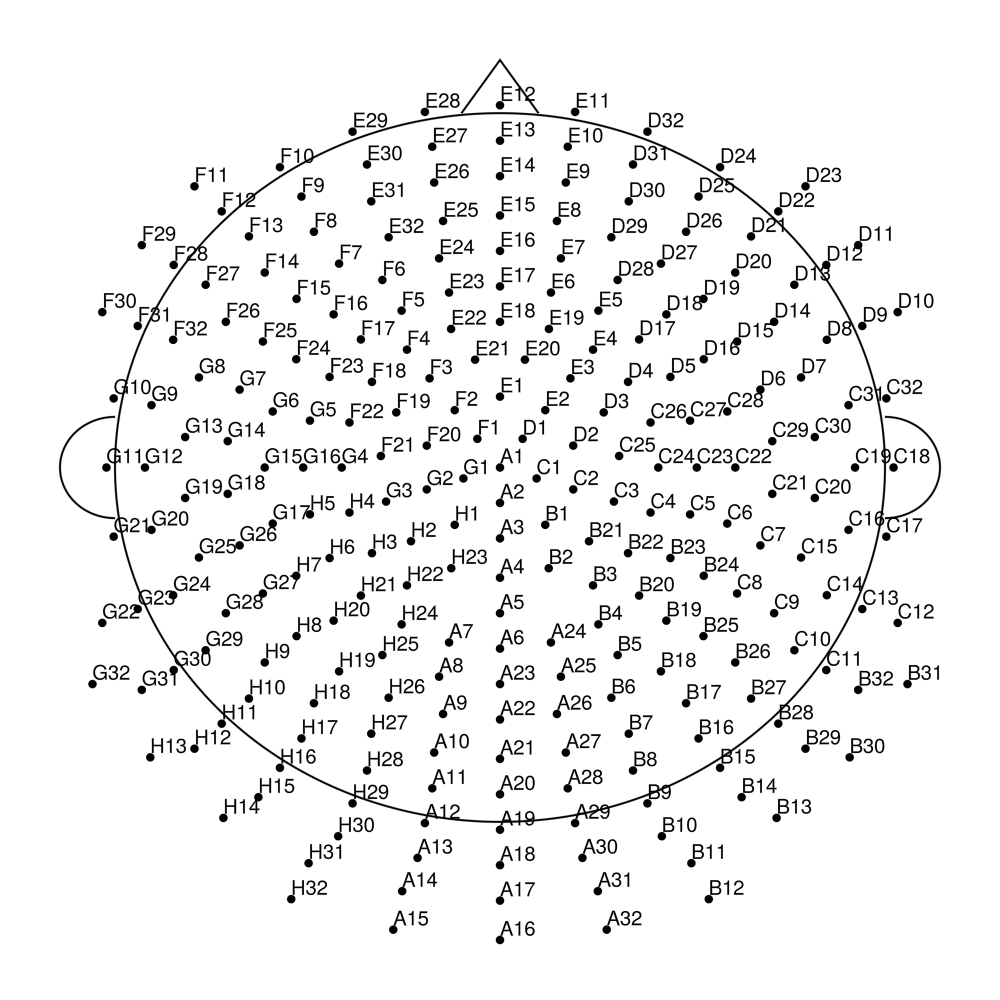

biosemi256 (256 channels) - Ultra high-density montage

BrainProducts actiCap

BrainProducts electrode caps organized by product line:

Standard BrainCap

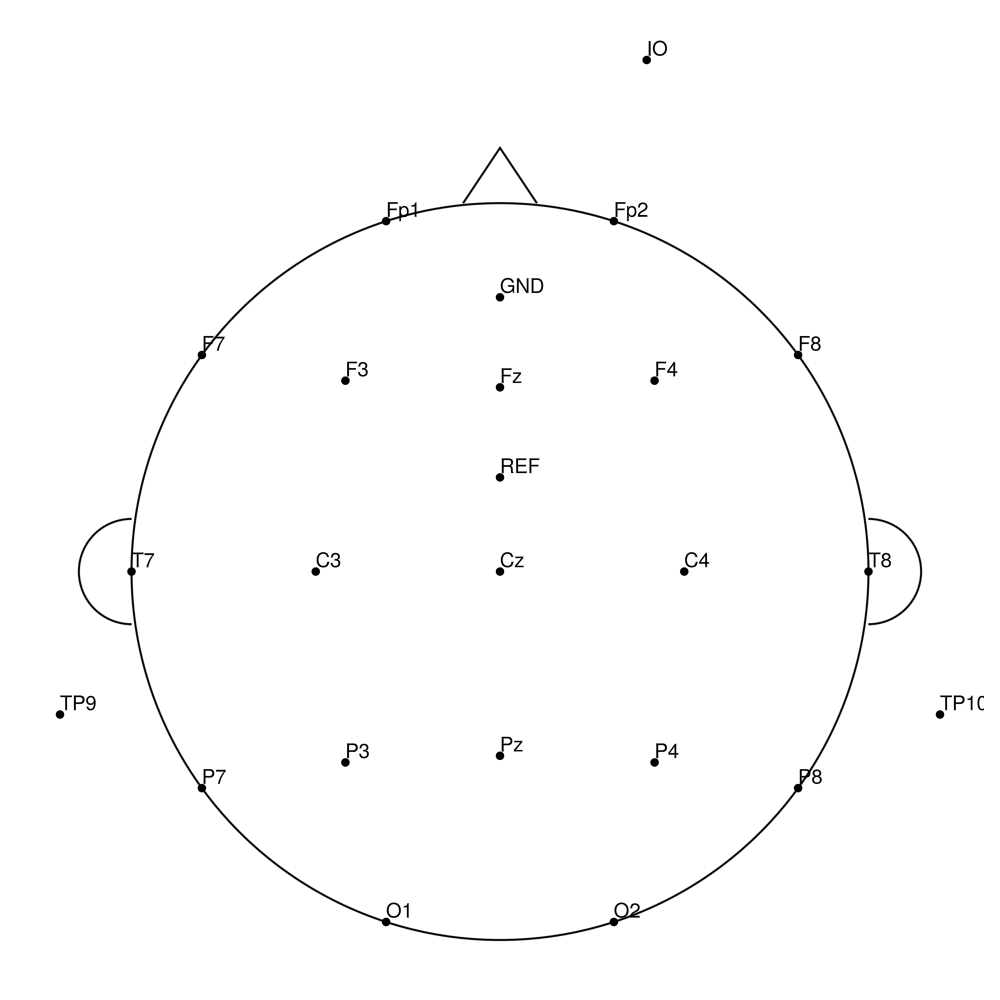

BC-22 (22 channels) - 22-channel clinical montage

BC-32 (32 channels) - Standard 32-channel montage

BC-64 (64 channels) - Standard 64-channel montage

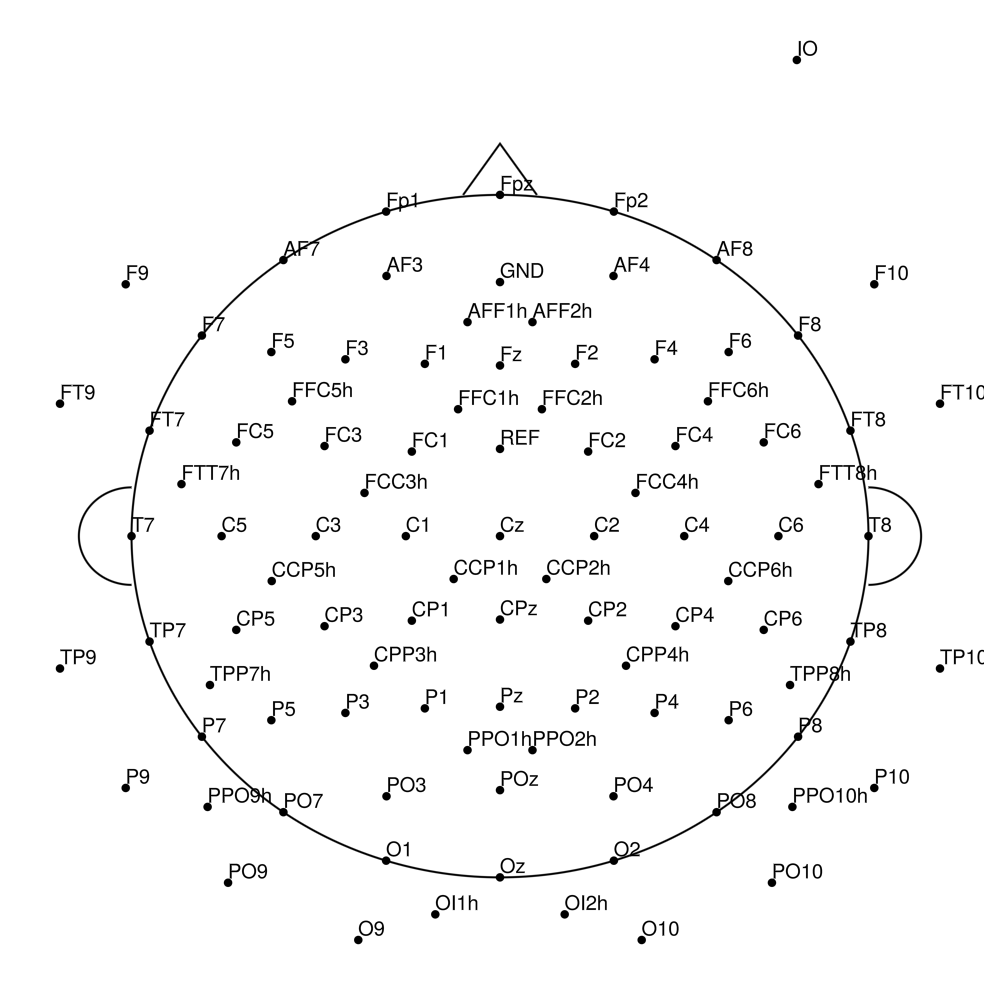

BC-96 (96 channels) - High-density 96-channel montage

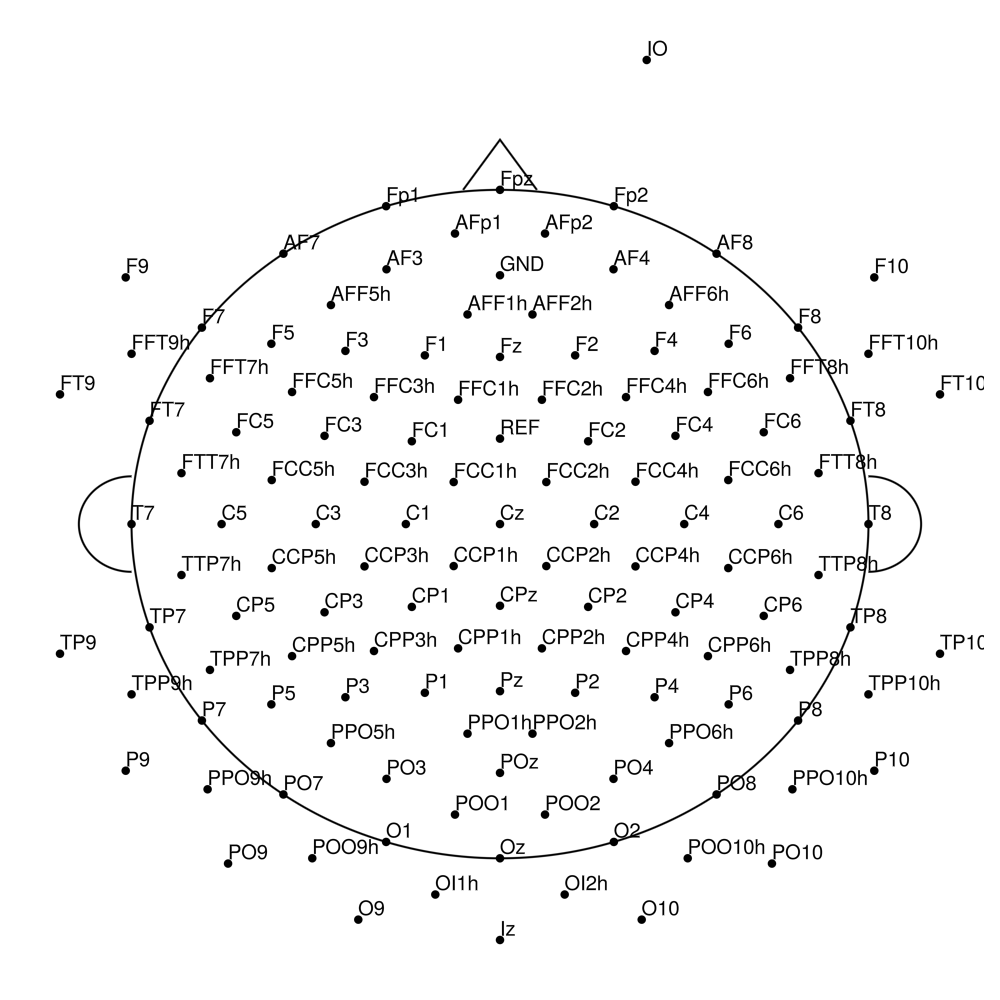

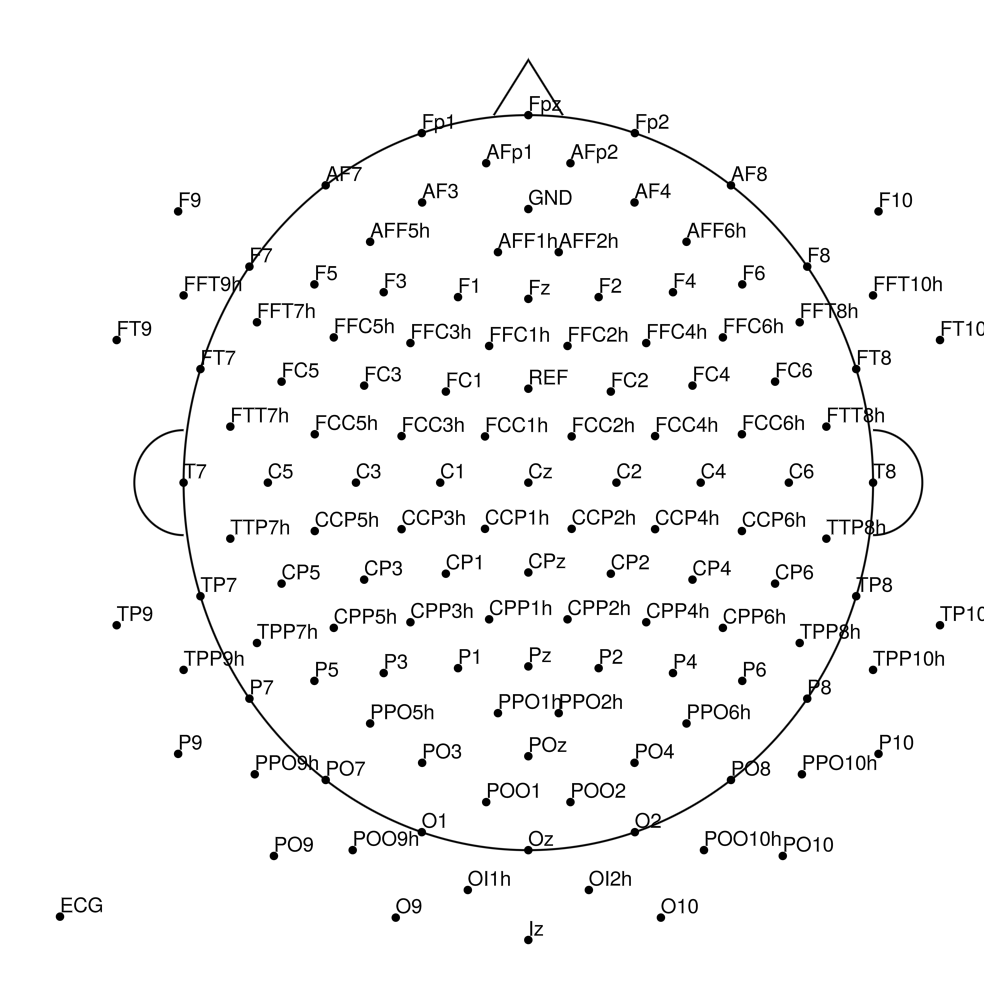

BC-128 (128 channels) - High-density 128-channel montage

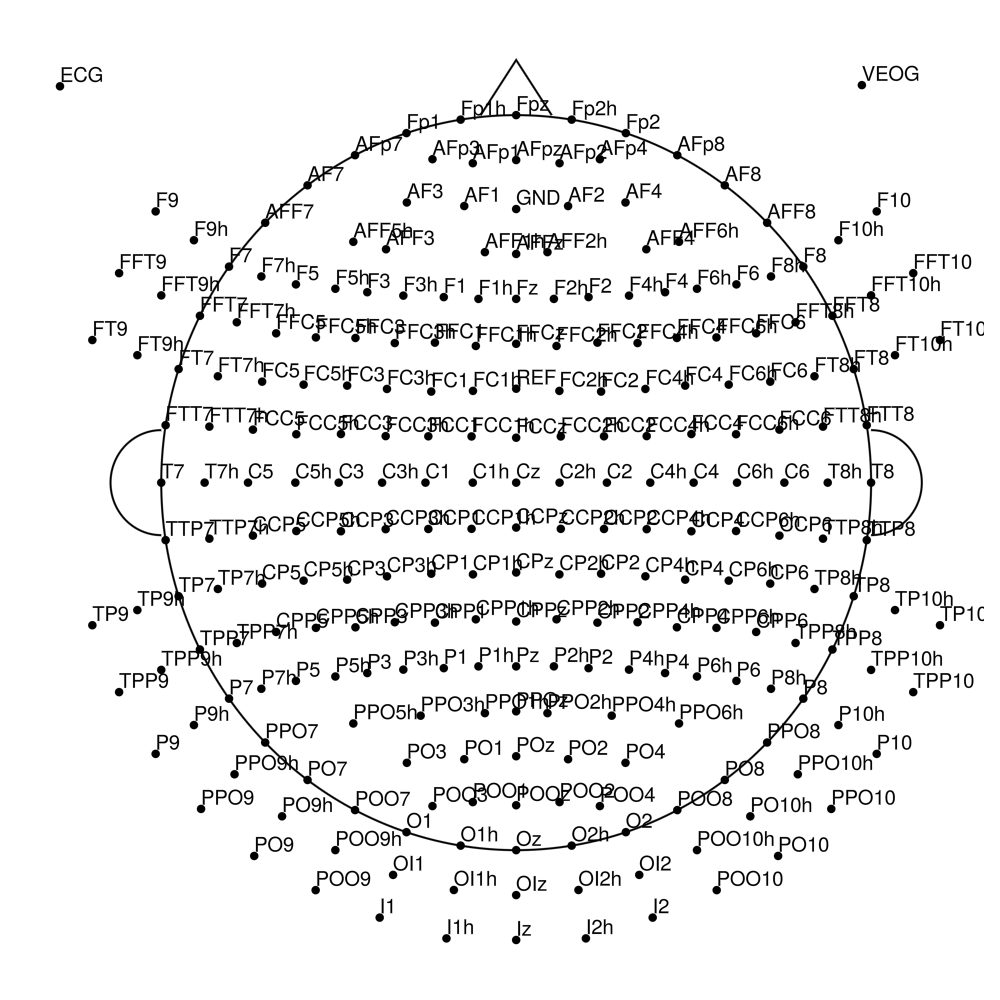

BC-256 (256 channels) - Ultra high-density montage

BrainCap MR (MRI-compatible)

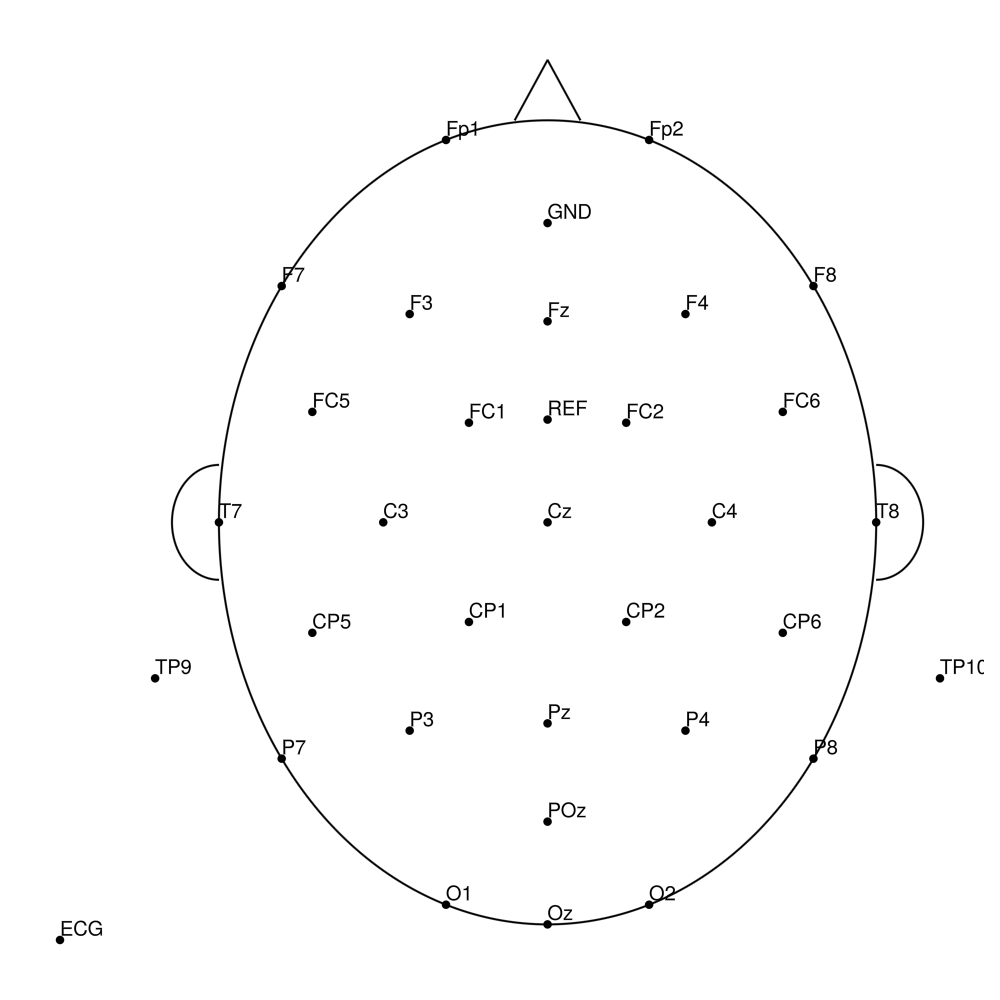

BC-MR-32 (32 channels)

BC-MR-64 (64 channels)

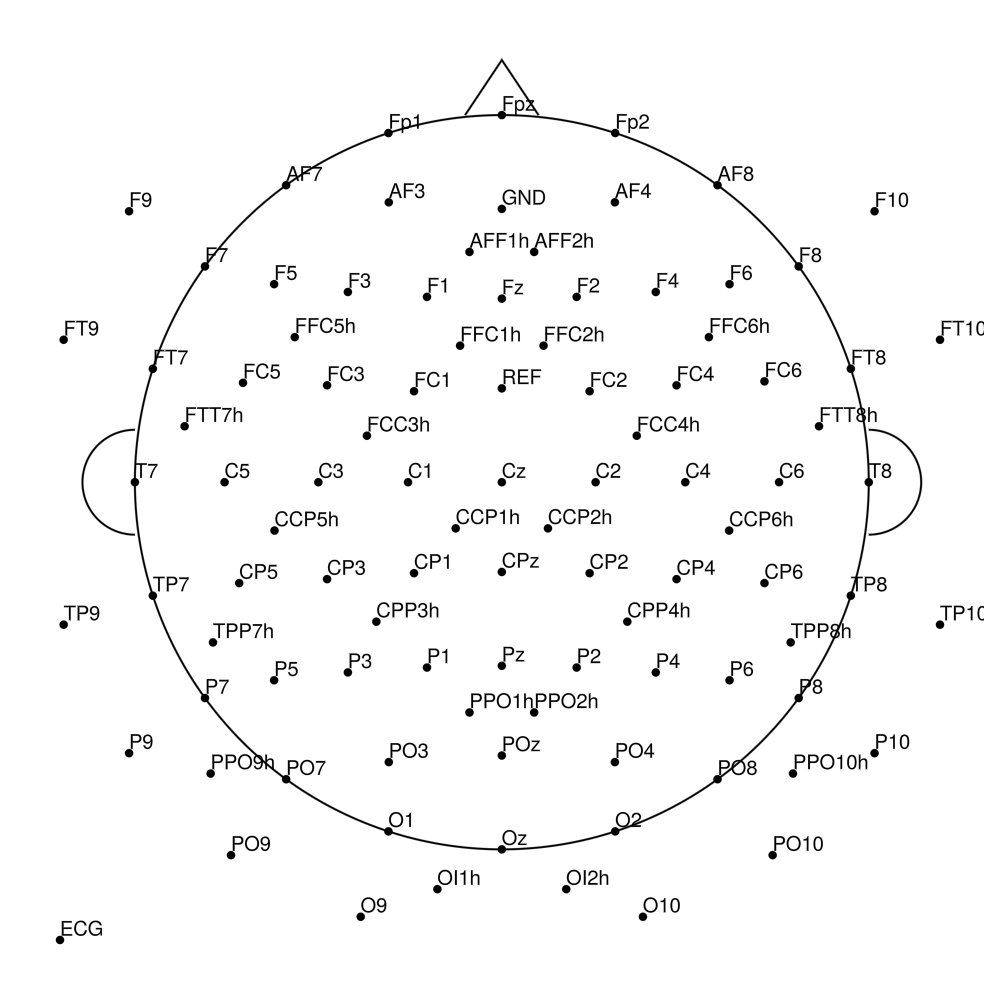

BC-MR-96 (96 channels)

BC-MR-128 (128 channels)

BrainCap MR3 (3T MRI-compatible)

BC-MR3-32 (32 channels)

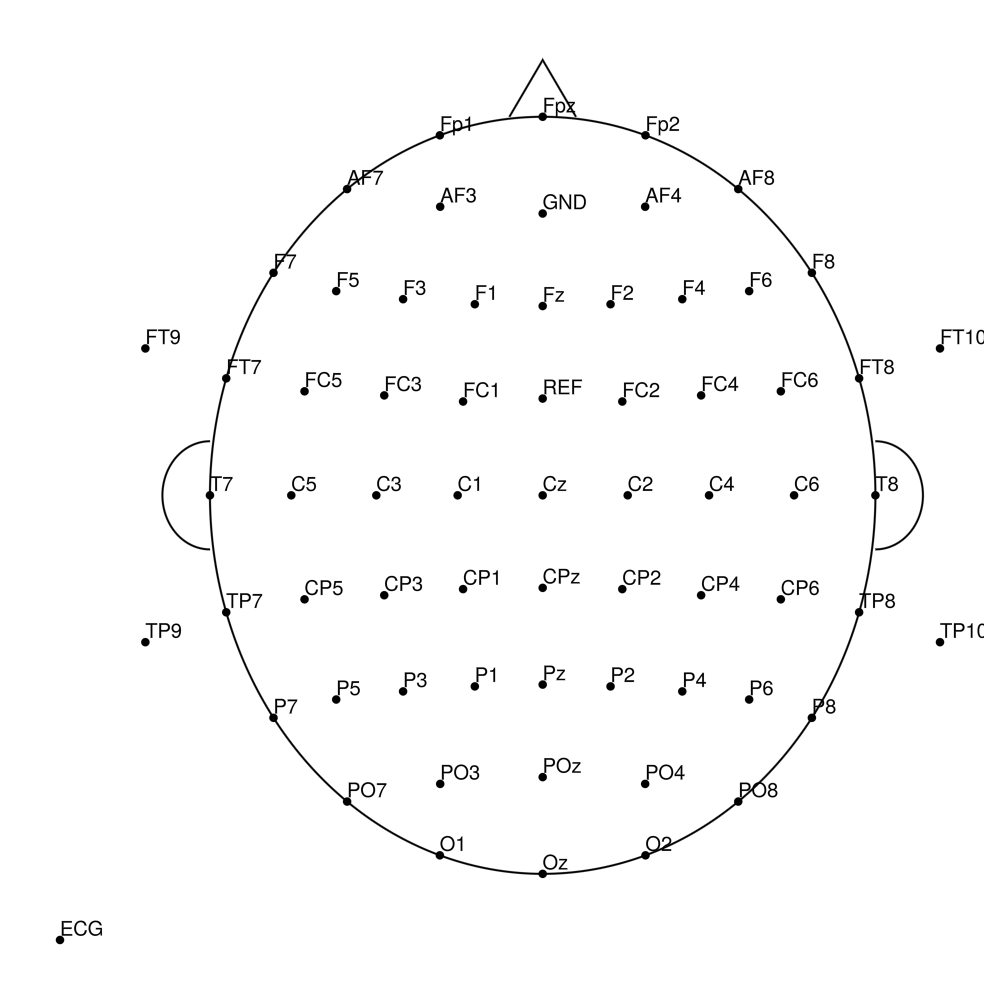

BC-MR3-64 (64 channels)

BC-MR3-96 (96 channels)

BC-MR3-128 (128 channels)

BrainCap MEG (MEG-compatible)

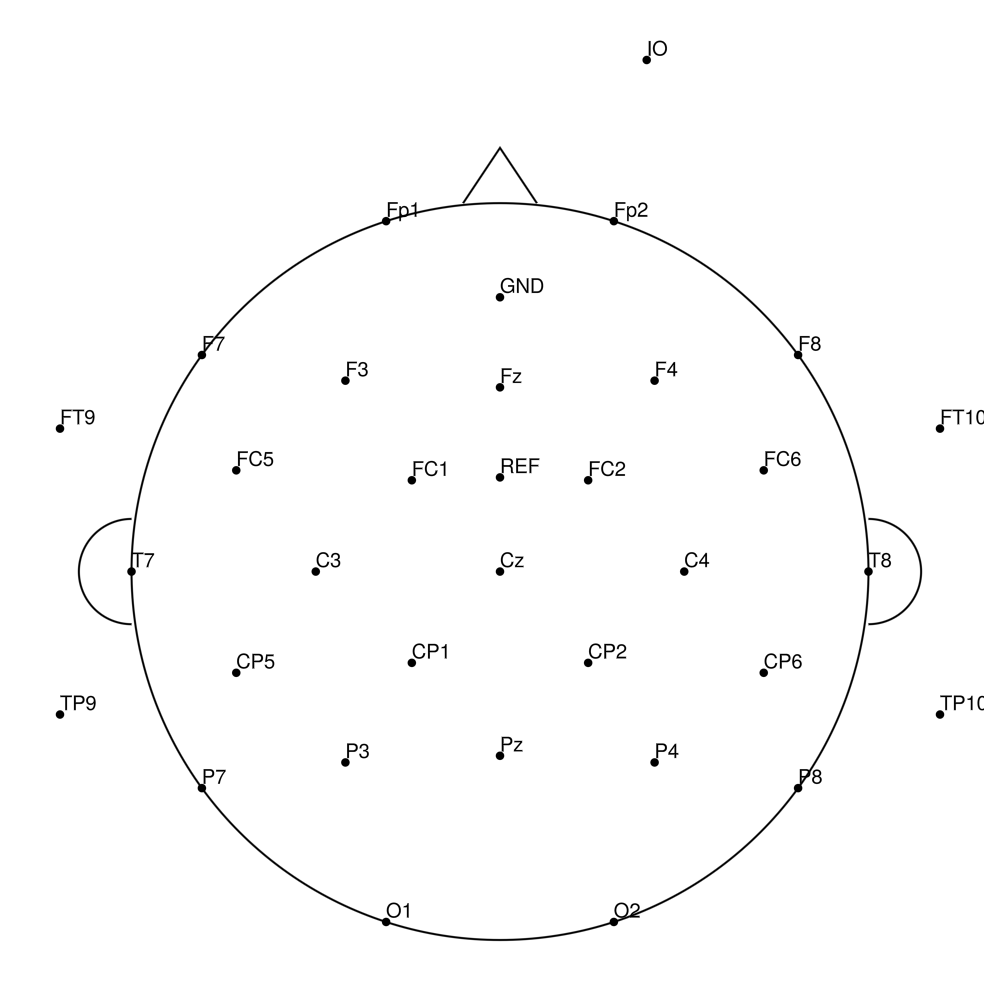

BC-MEG-32 (32 channels)

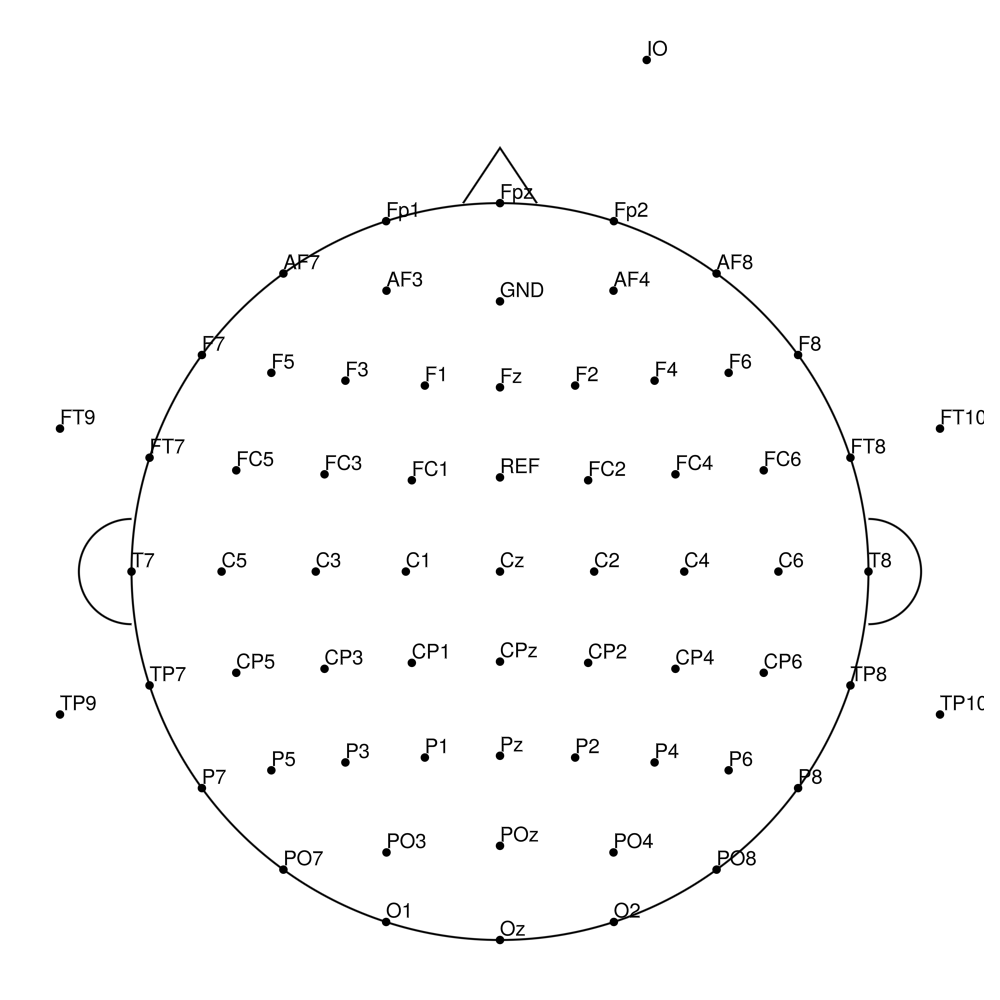

BC-MEG-64 (64 channels)

BC-MEG-128 (128 channels)

BrainCap TMS (TMS-compatible)

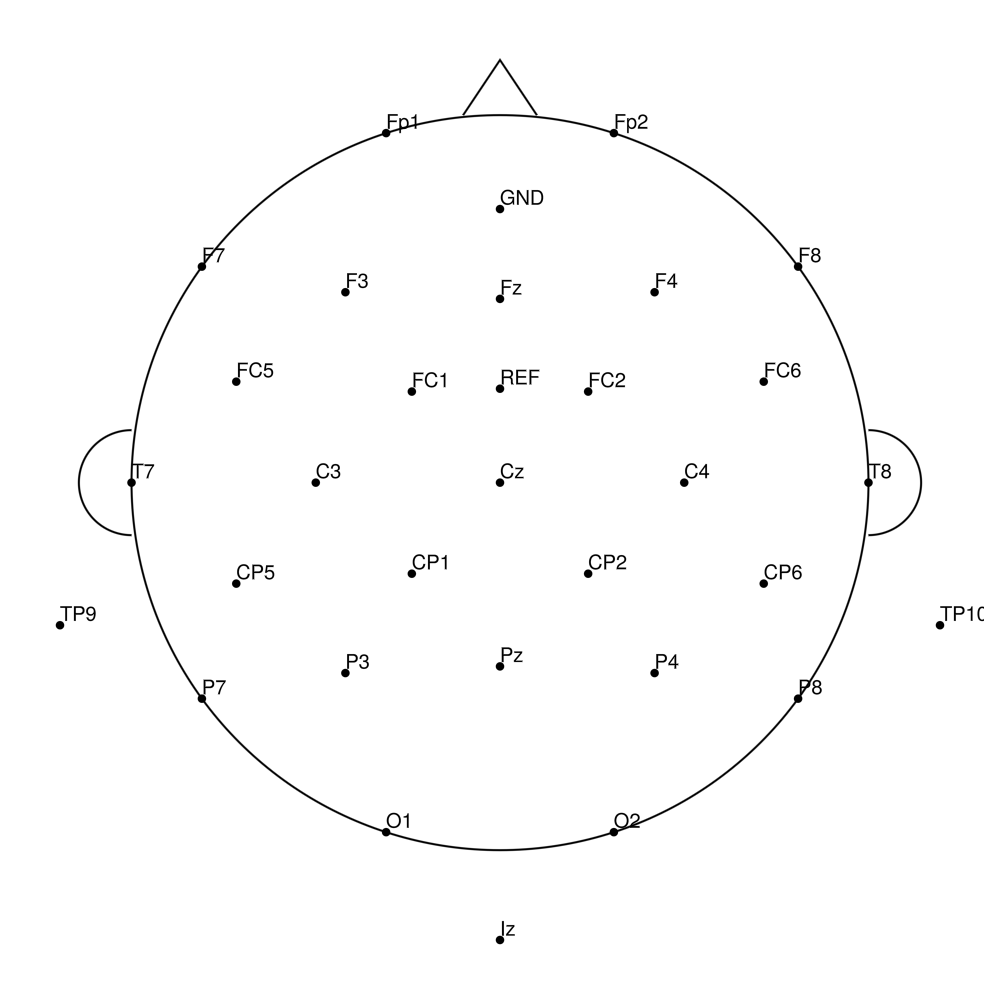

BC-TMS-32 (32 channels)

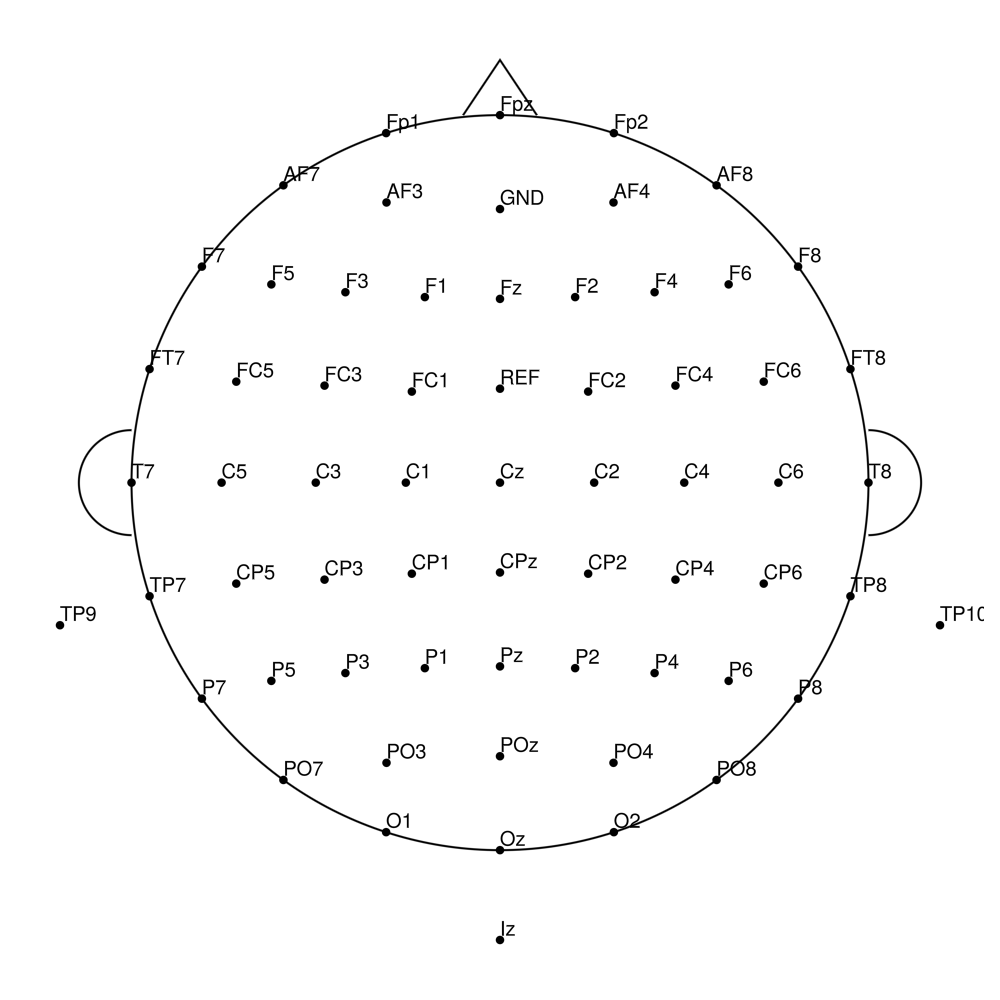

BC-TMS-64 (64 channels)

BC-TMS-96 (96 channels)

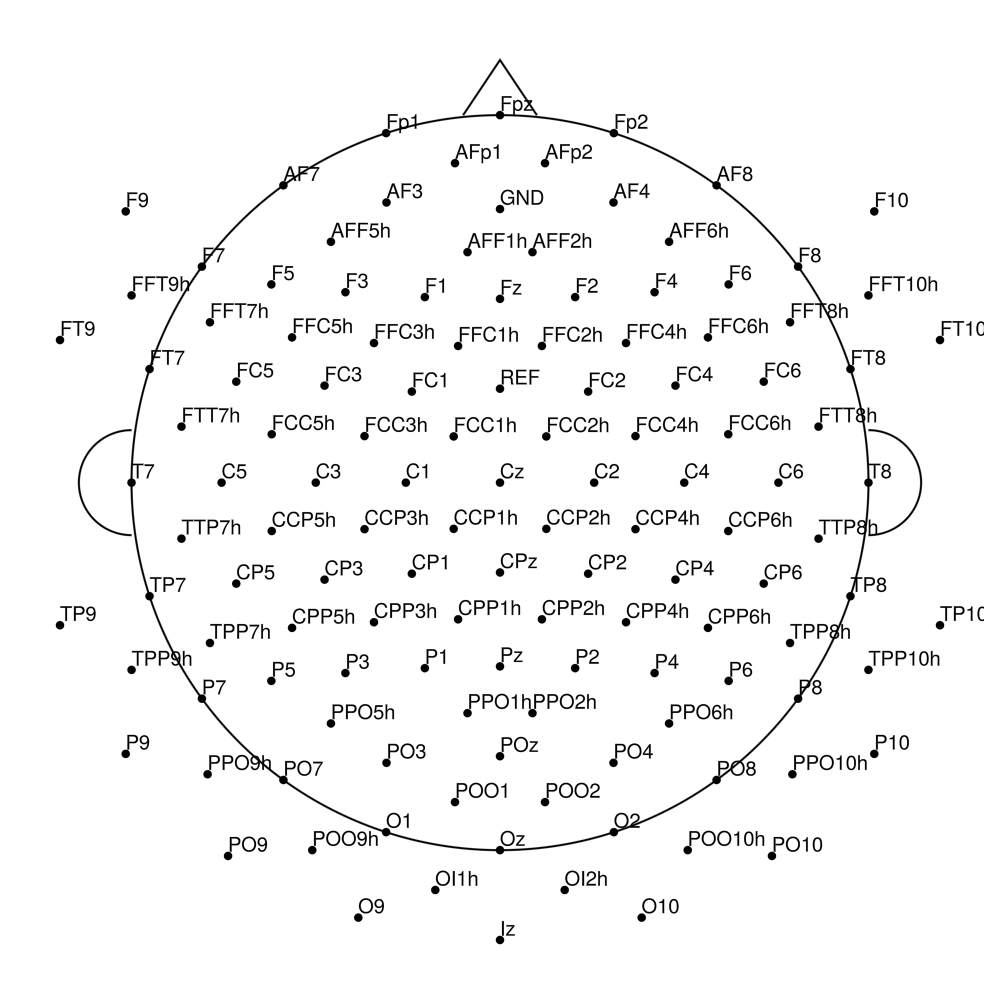

BC-TMS-128 (128 channels)

BrainCap Sleep

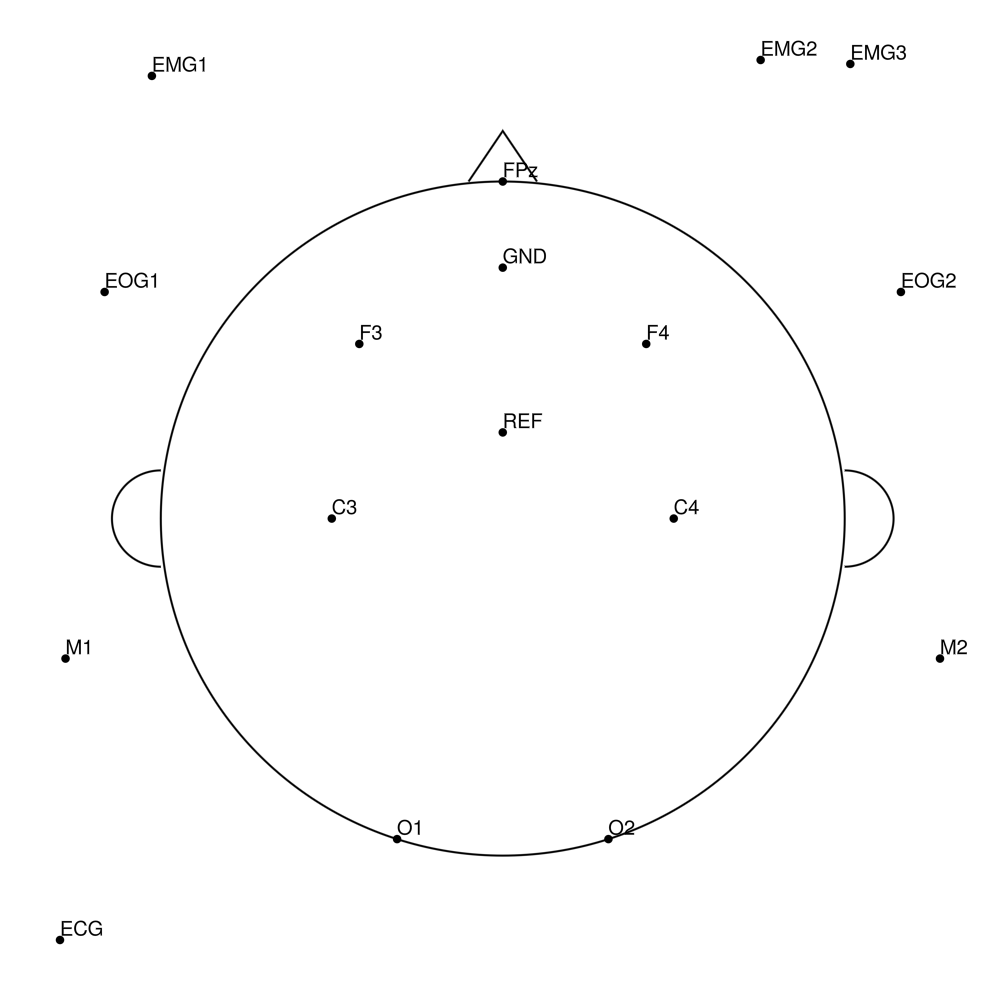

BC-MRS-15 (15 channels) - MR sleep - AASM standard

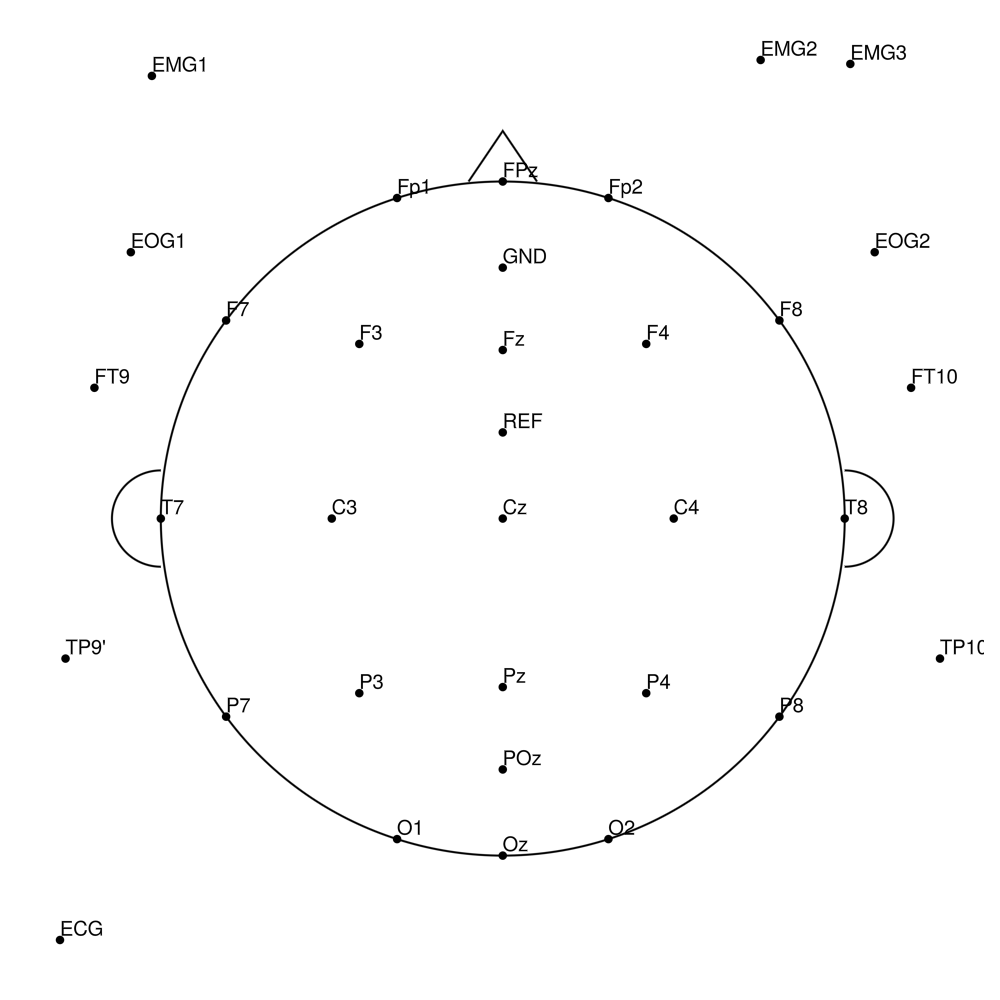

BC-MRS-32 (32 channels) - MR sleep montage

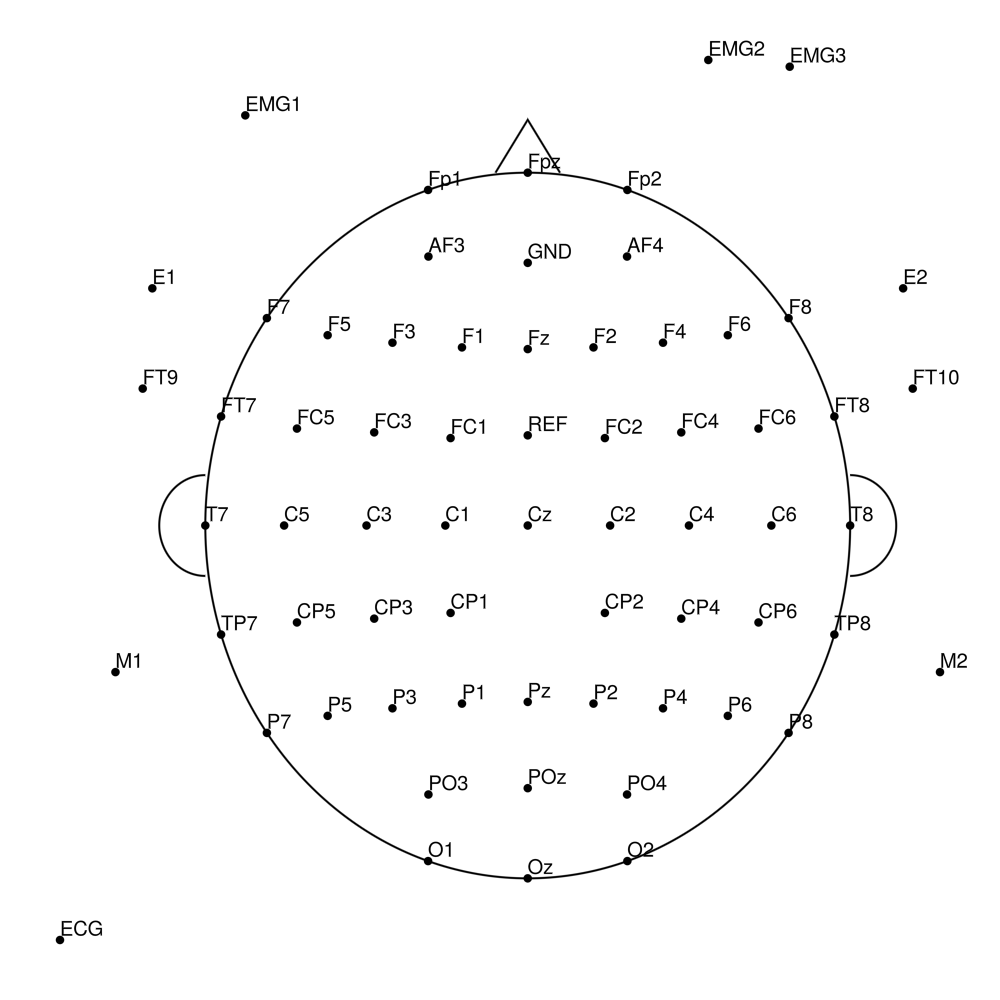

BC-MRS-64 (64 channels) - MR sleep montage

BC-MRS3-15 (15 channels) - MR3 sleep - AASM standard

BC-MRS3-32 (32 channels) - MR3 sleep montage

BC-MRS3-64 (64 channels) - MR3 sleep montage

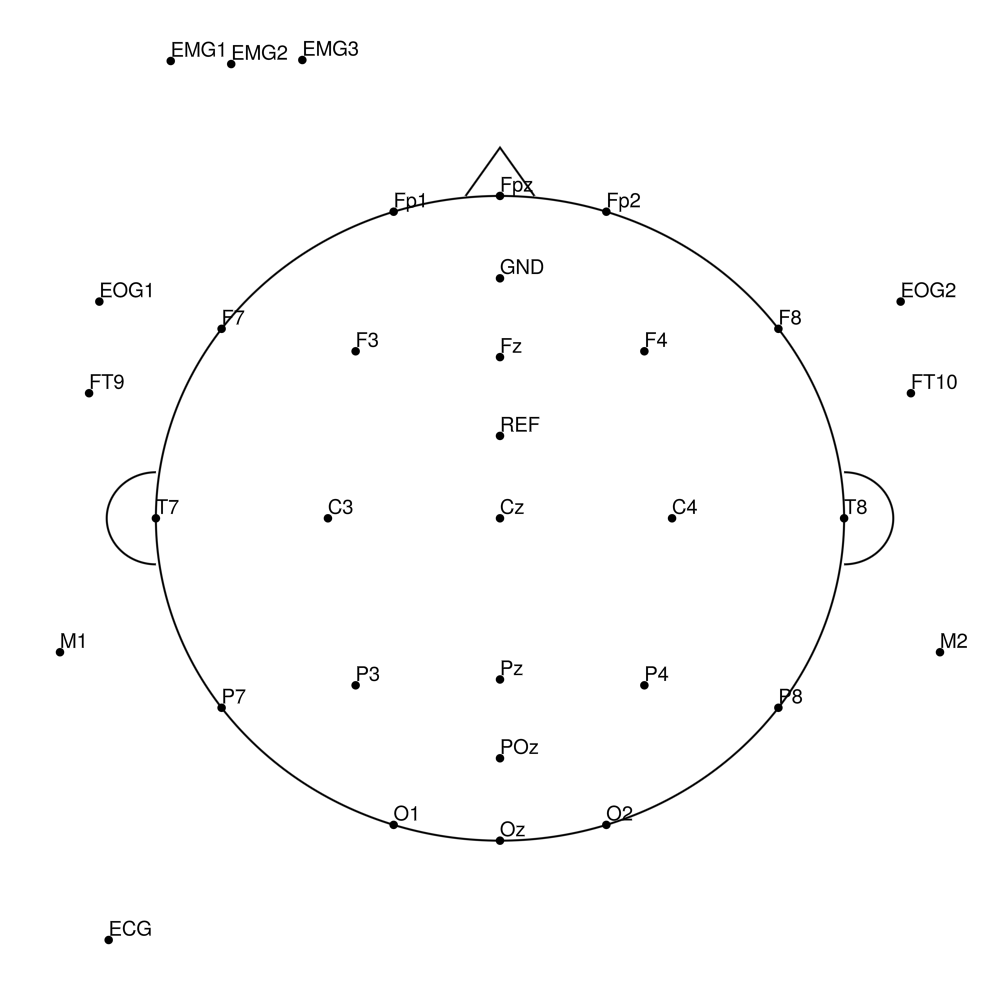

BC-SL-32 (32 channels) - BrainAmp sleep

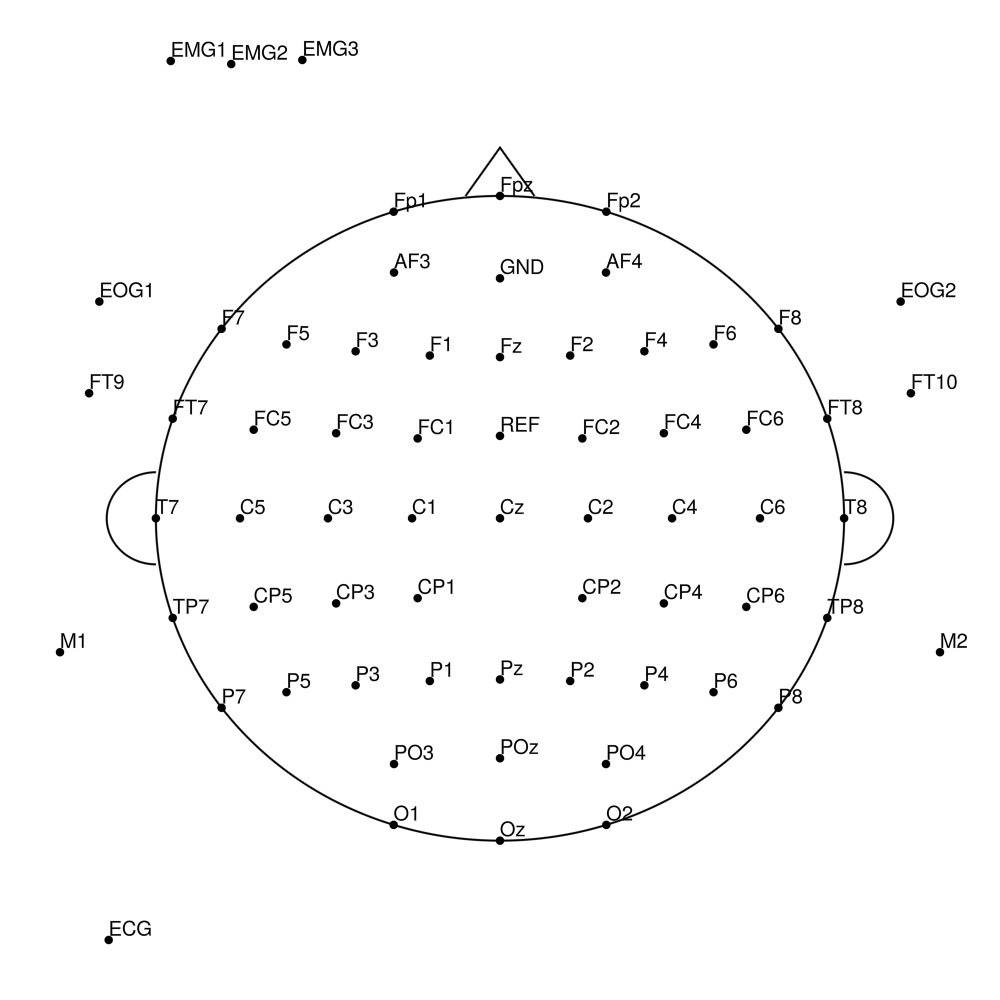

BC-SL-64 (64 channels) - BrainAmp sleep

BC-SL-128 (128 channels) - BrainAmp sleep

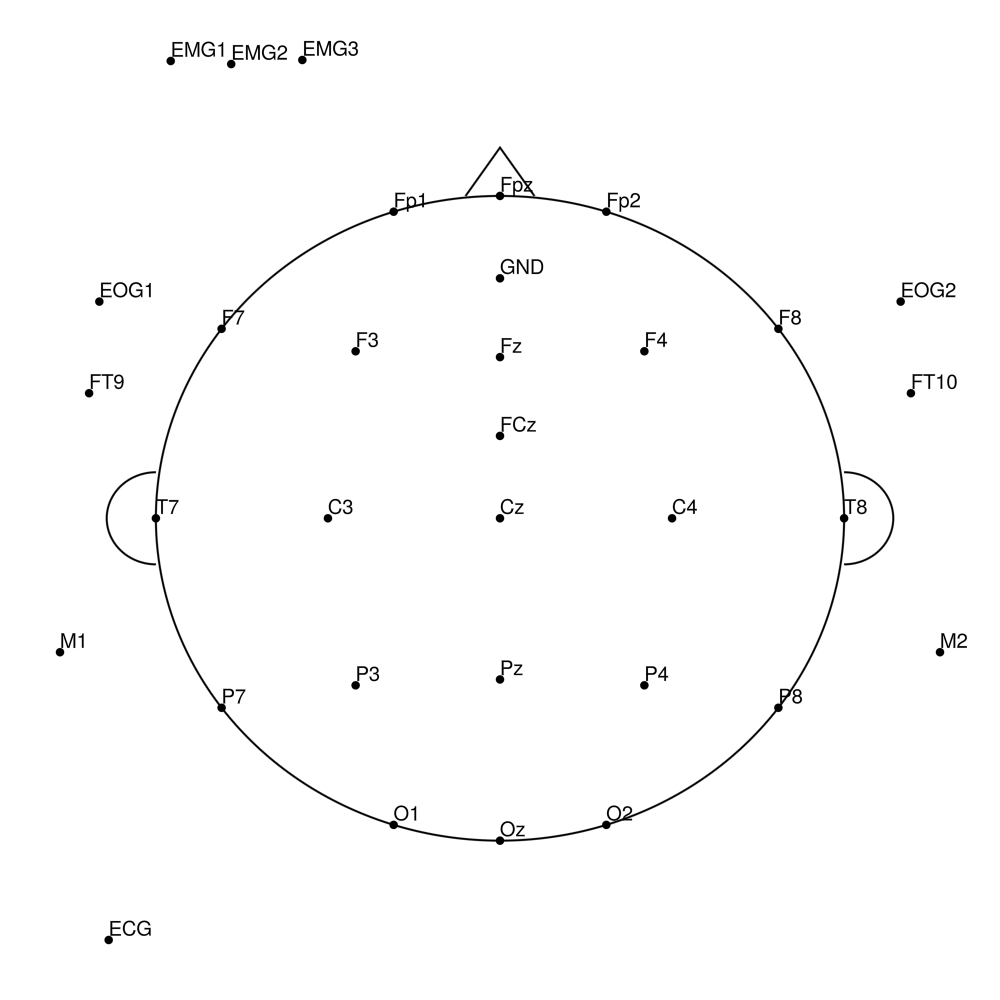

BCA-SL-32 (32 channels) - actiCHamp sleep

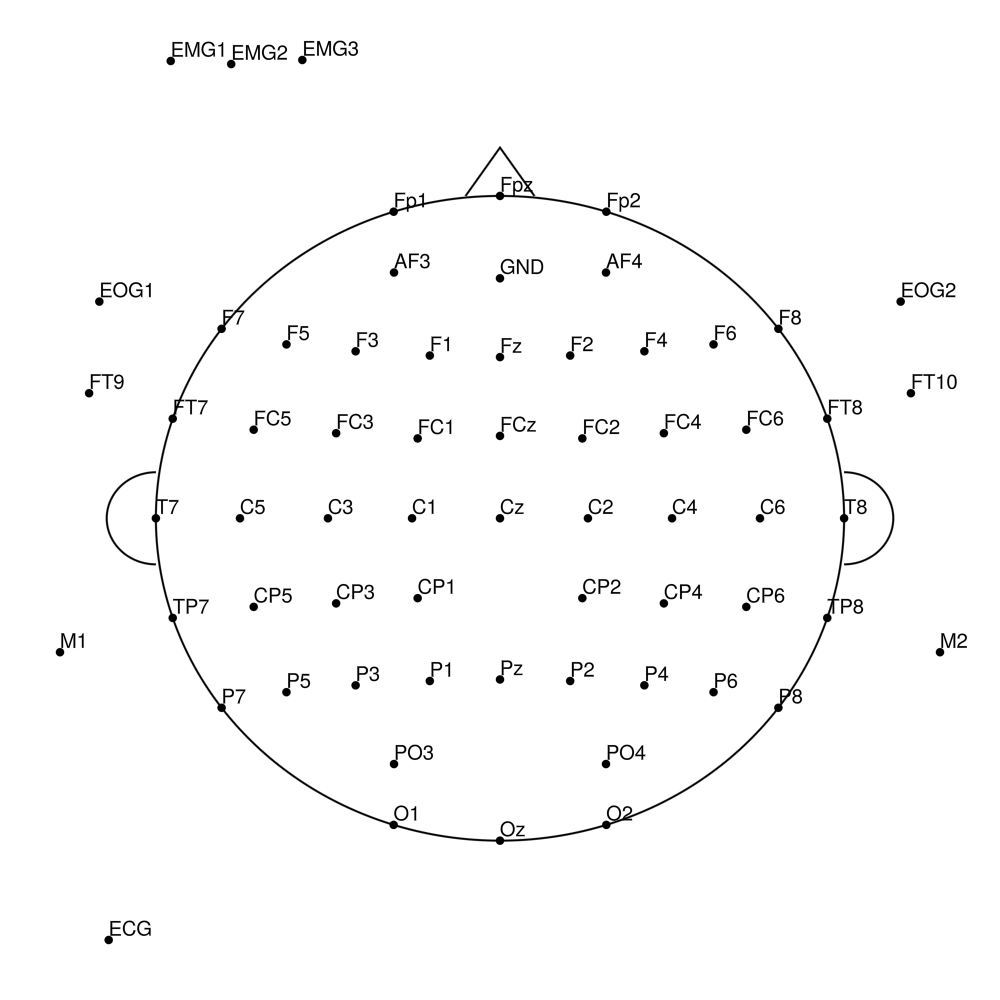

BCA-SL-64 (64 channels) - actiCHamp sleep

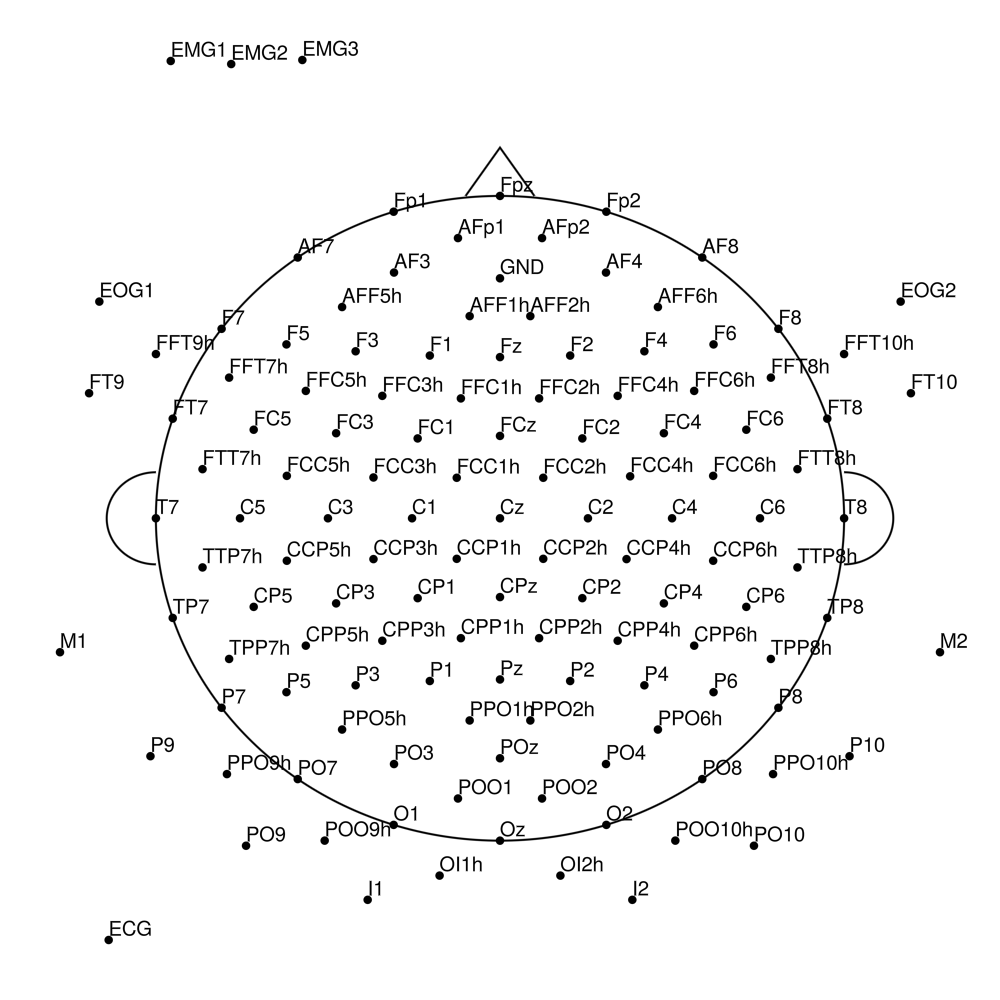

BCA-SL-128 (128 channels) - actiCHamp sleep

LiveCap

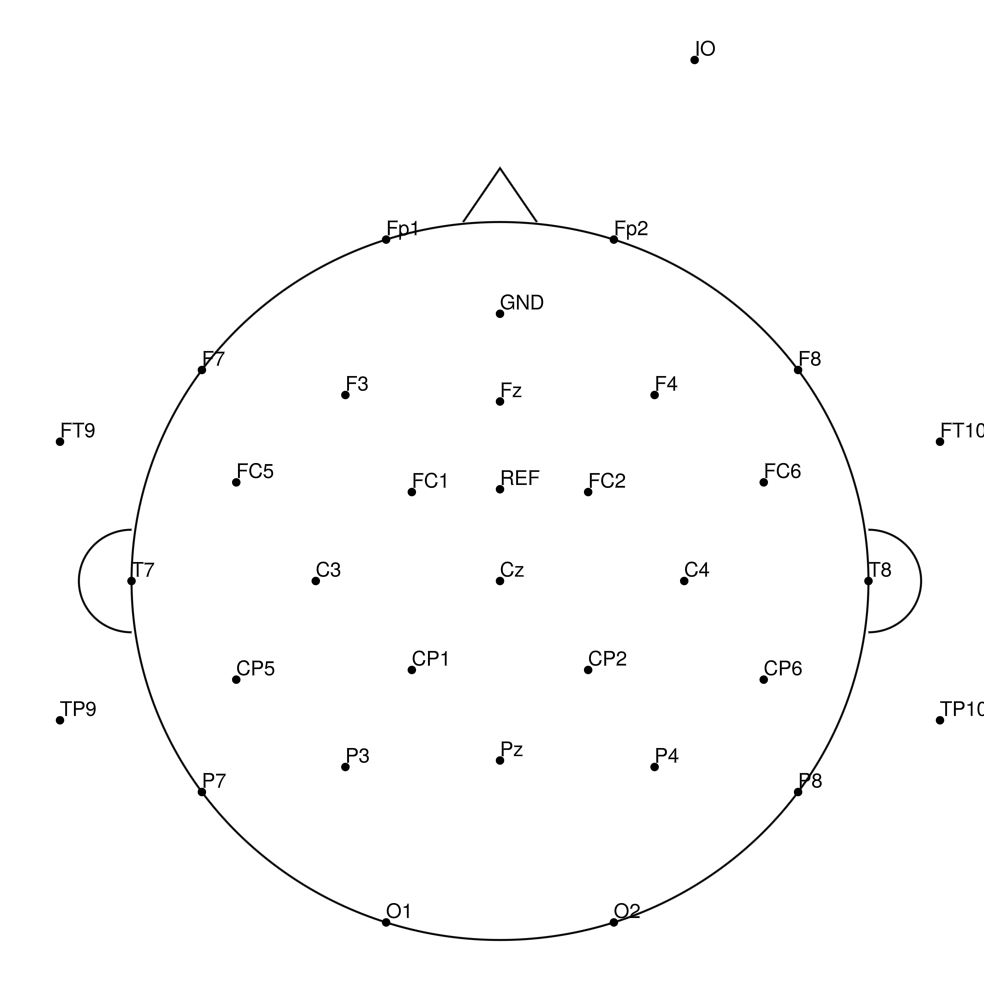

LC-32 (32 channels) - LiveAmp 32-channel

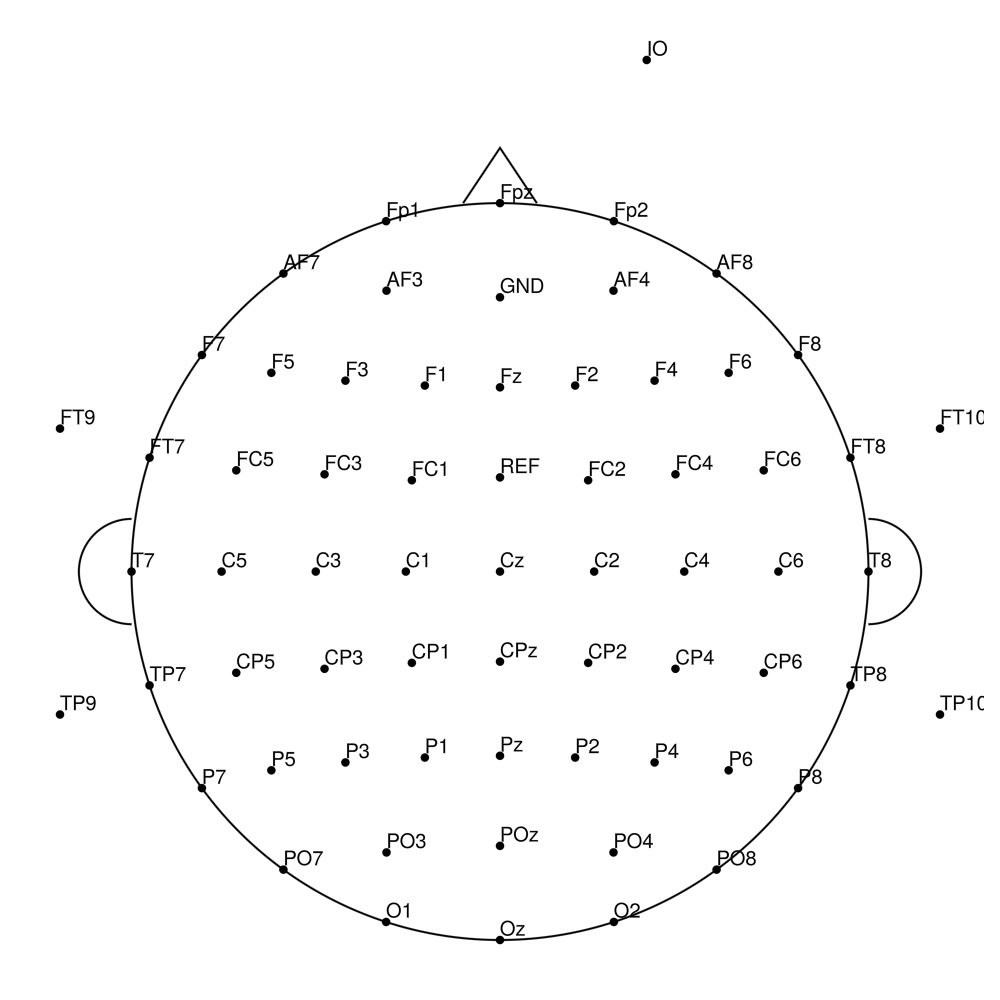

LC-64 (64 channels) - LiveAmp 64-channel

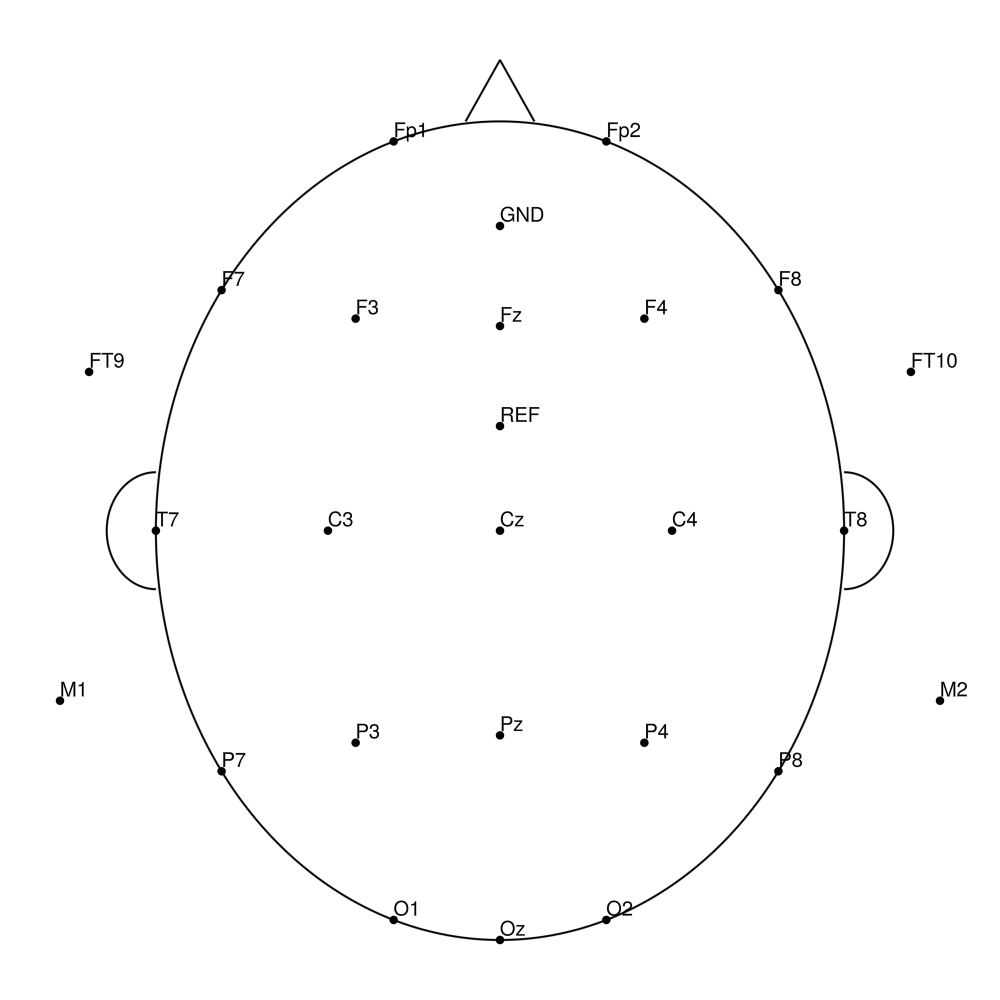

LC-SL-32_Ch1-24 (32 channels) - LiveCap sleep (24 + 8)

R-Net

RNP-BA-32 (32 channels) - R-Net for BrainAmp

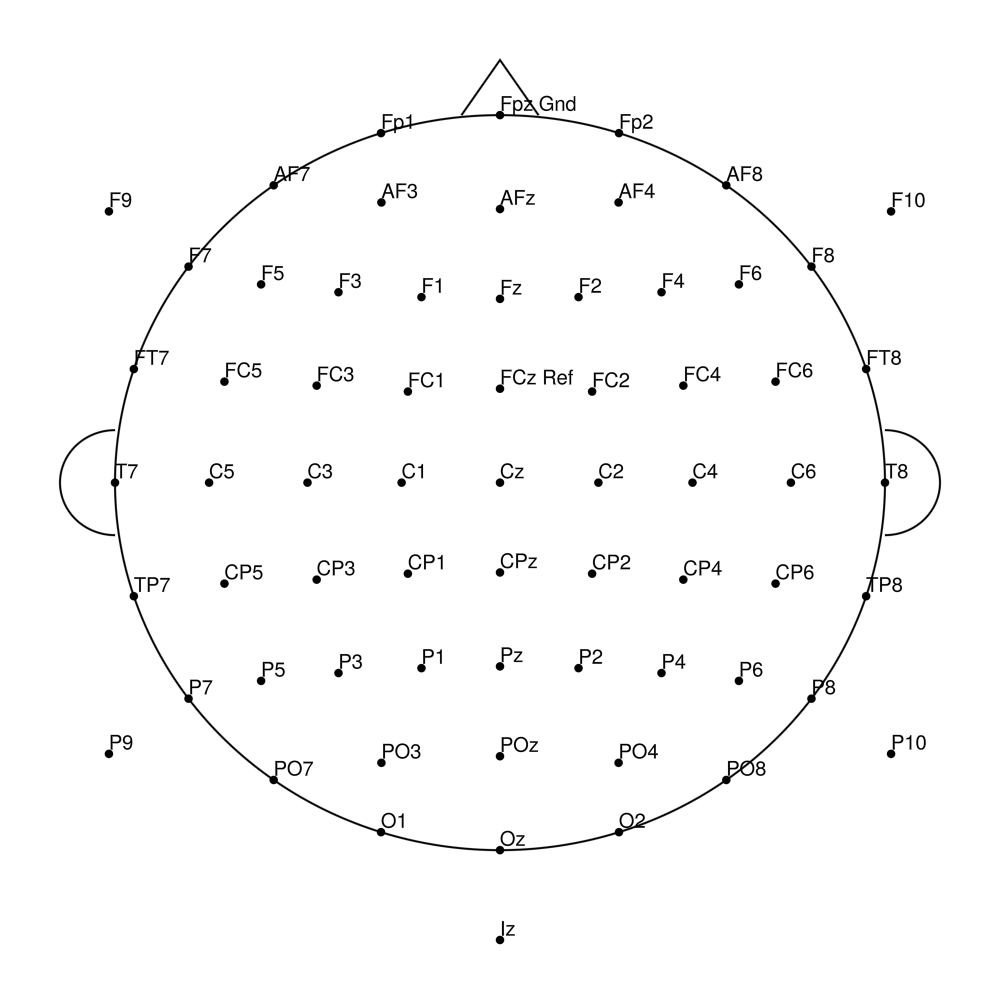

RNP-BA-64 (64 channels) - R-Net for BrainAmp

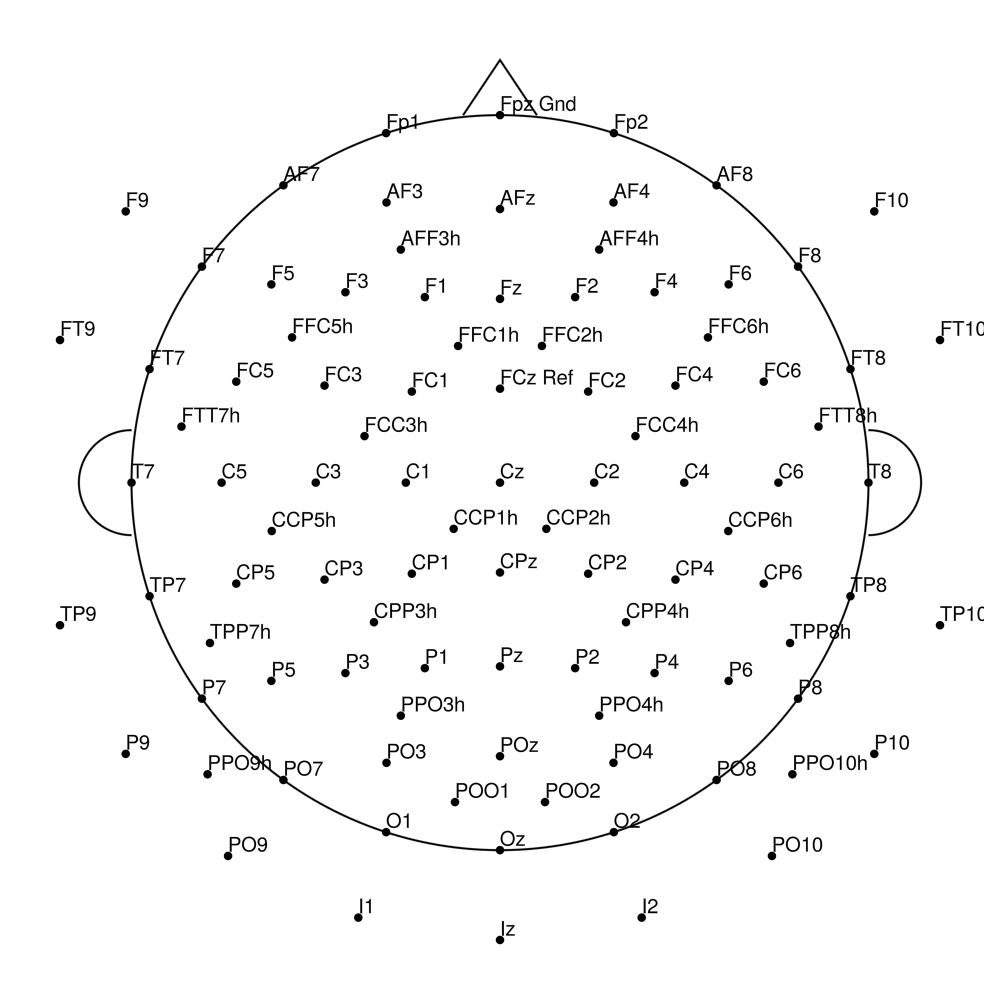

RNP-BA-96 (96 channels) - R-Net for BrainAmp

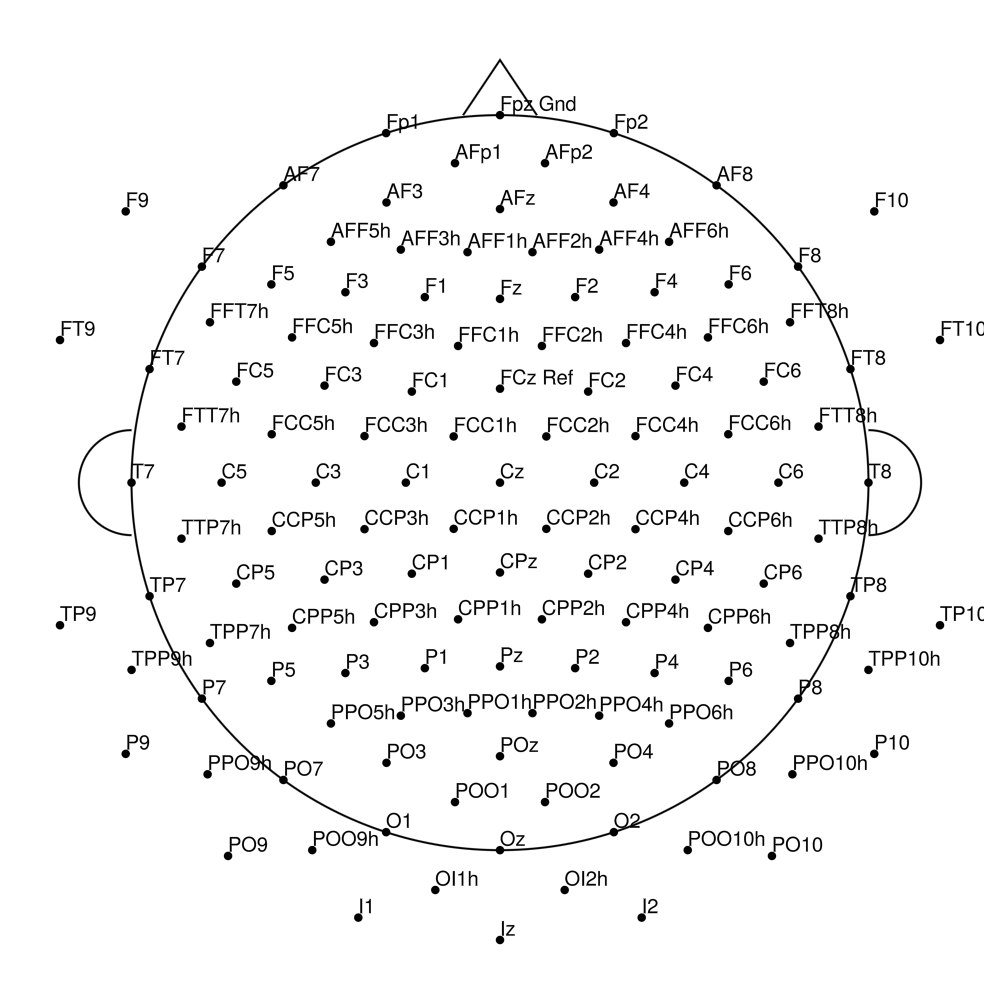

RNP-BA-128 (128 channels) - R-Net for BrainAmp

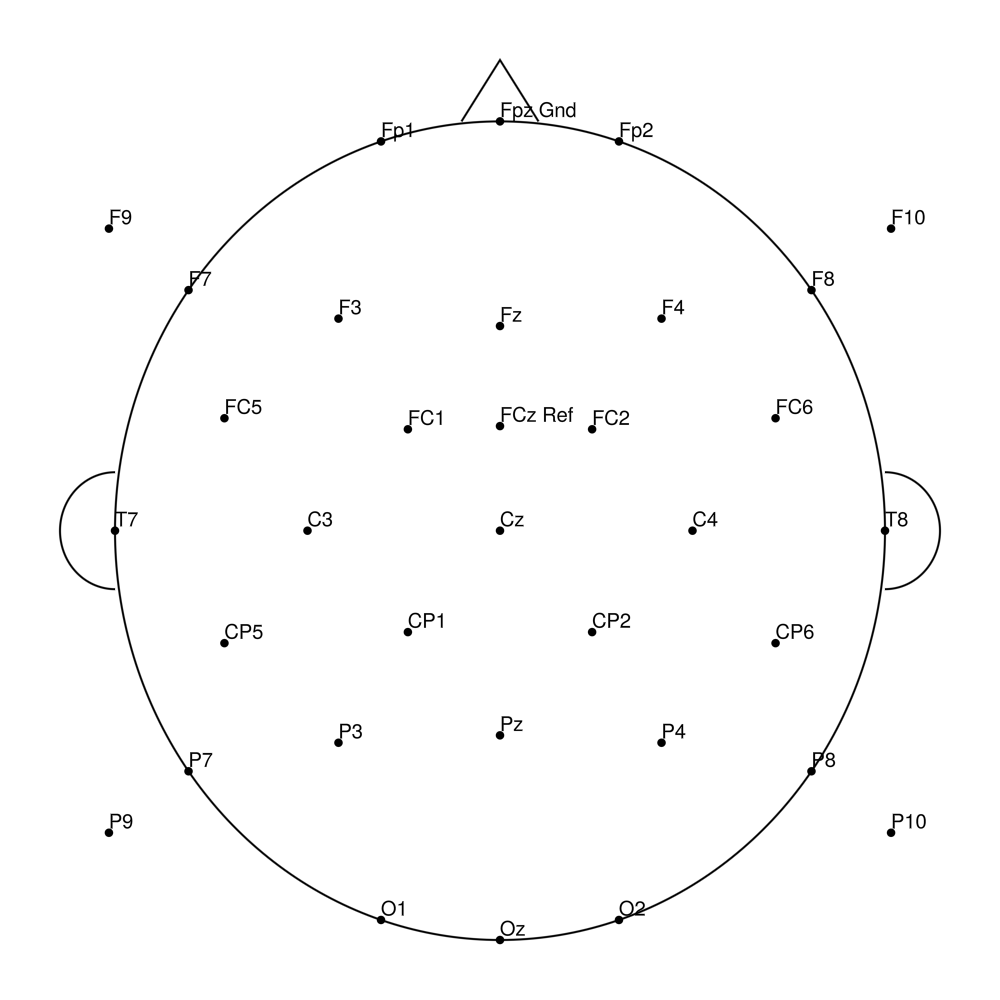

RNP-LA-32 (32 channels) - R-Net for LiveAmp

RNP-LA-64 (64 channels) - R-Net for LiveAmp

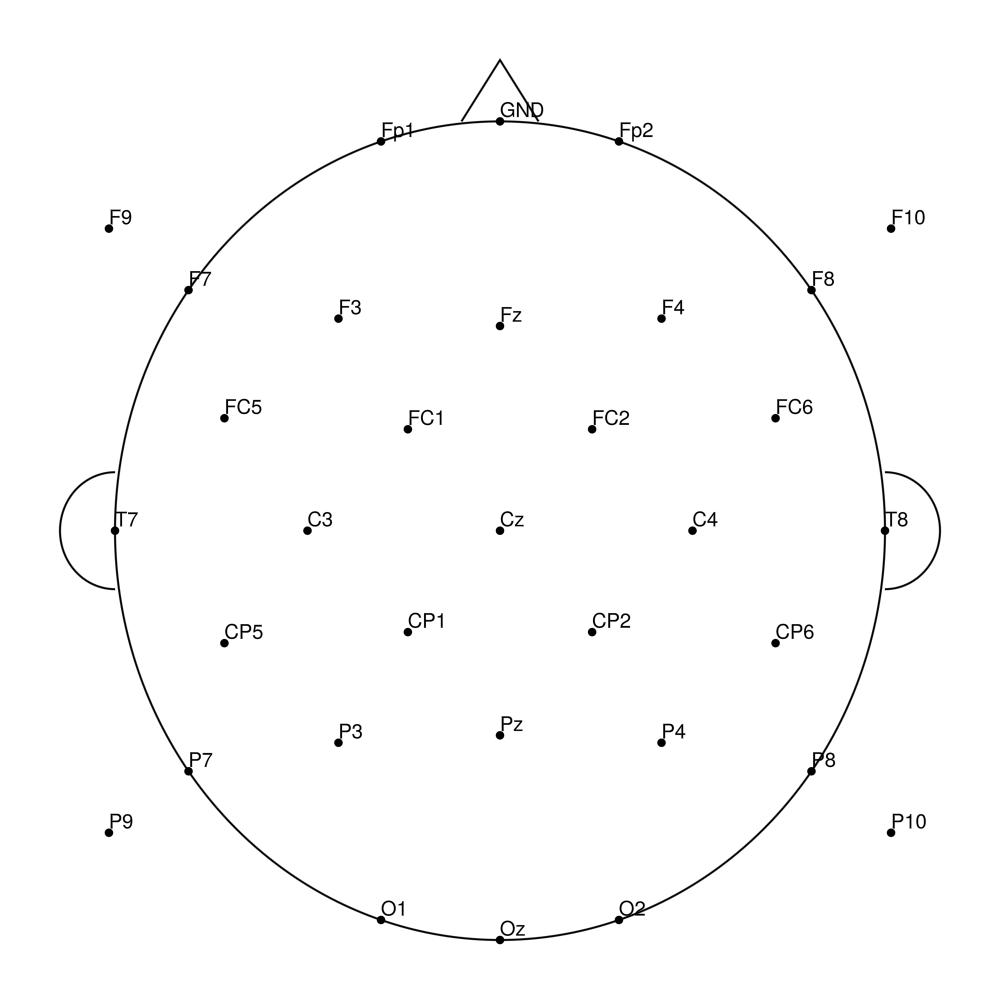

RNP-AC-32 (32 channels) - R-Net for actiCHamp Plus

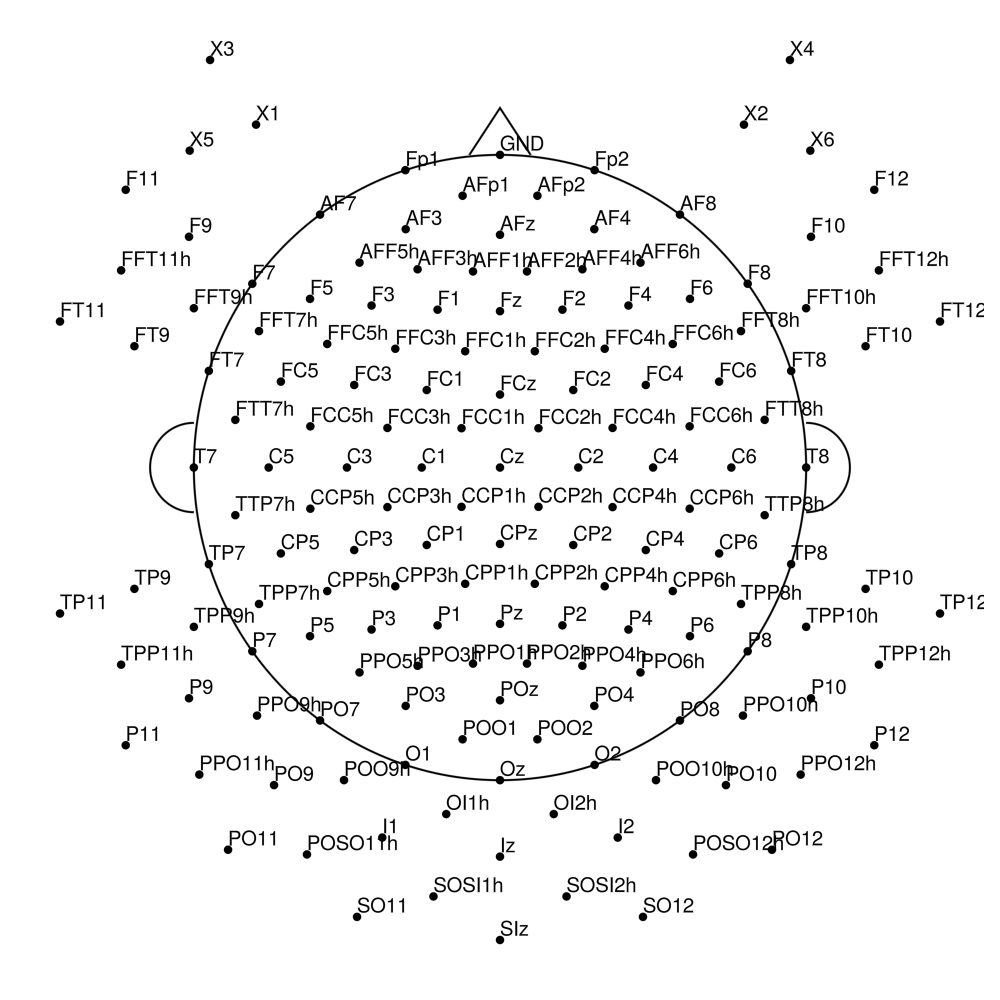

RNP-AC-64 (64 channels) - R-Net for actiCHamp Plus (with Iz)

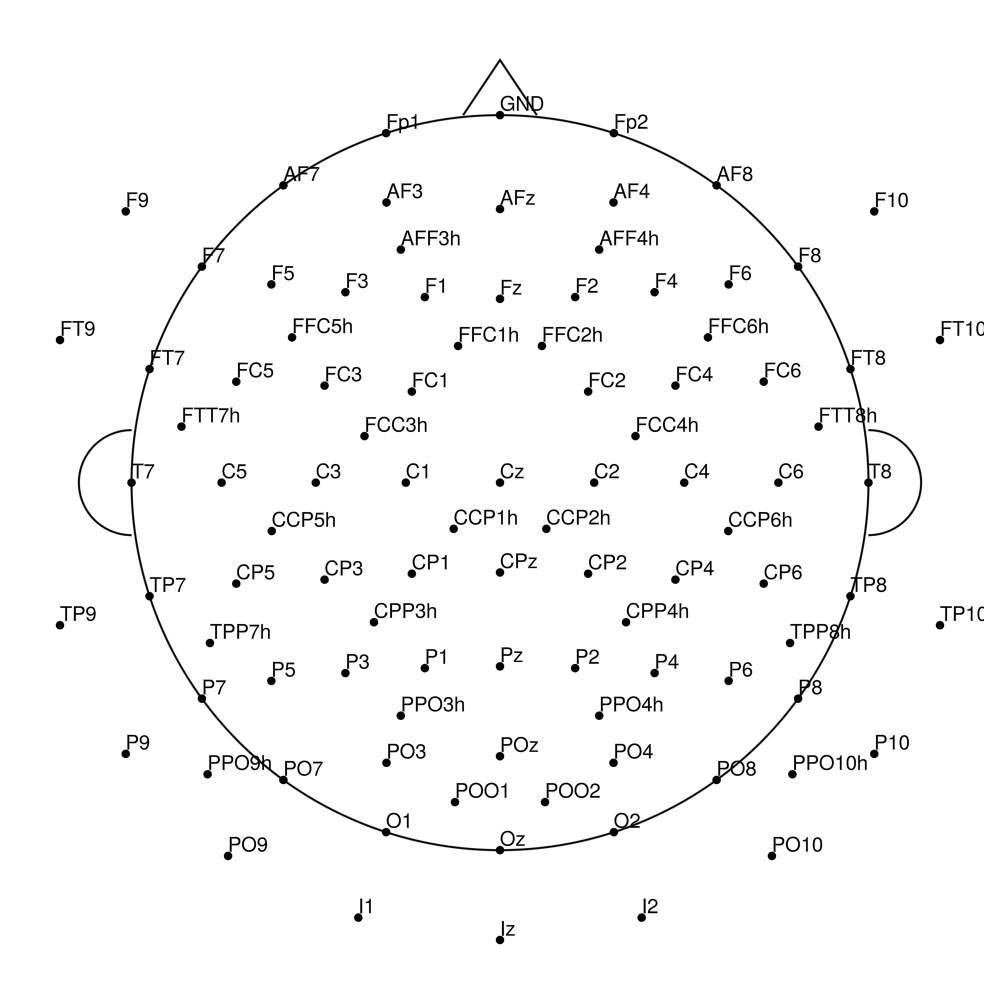

RNP-AC-96 (96 channels) - R-Net for actiCHamp Plus (with Iz)

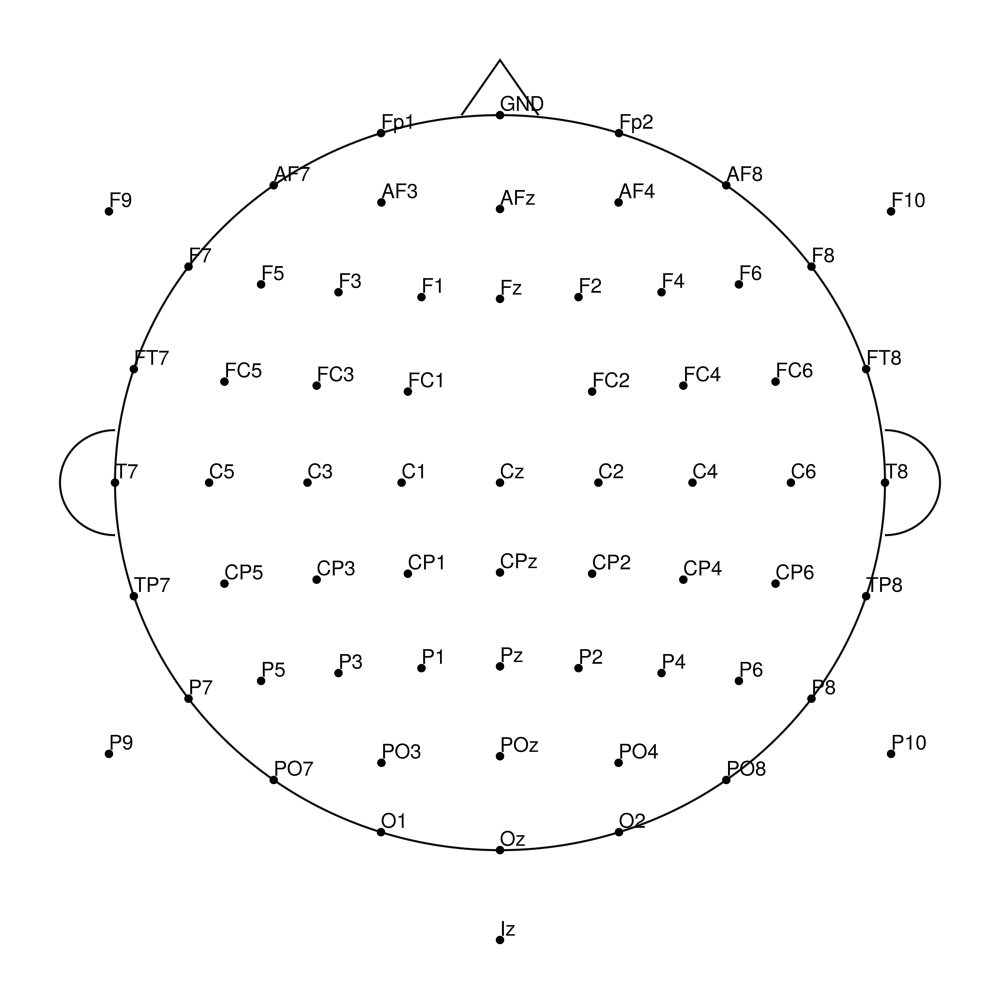

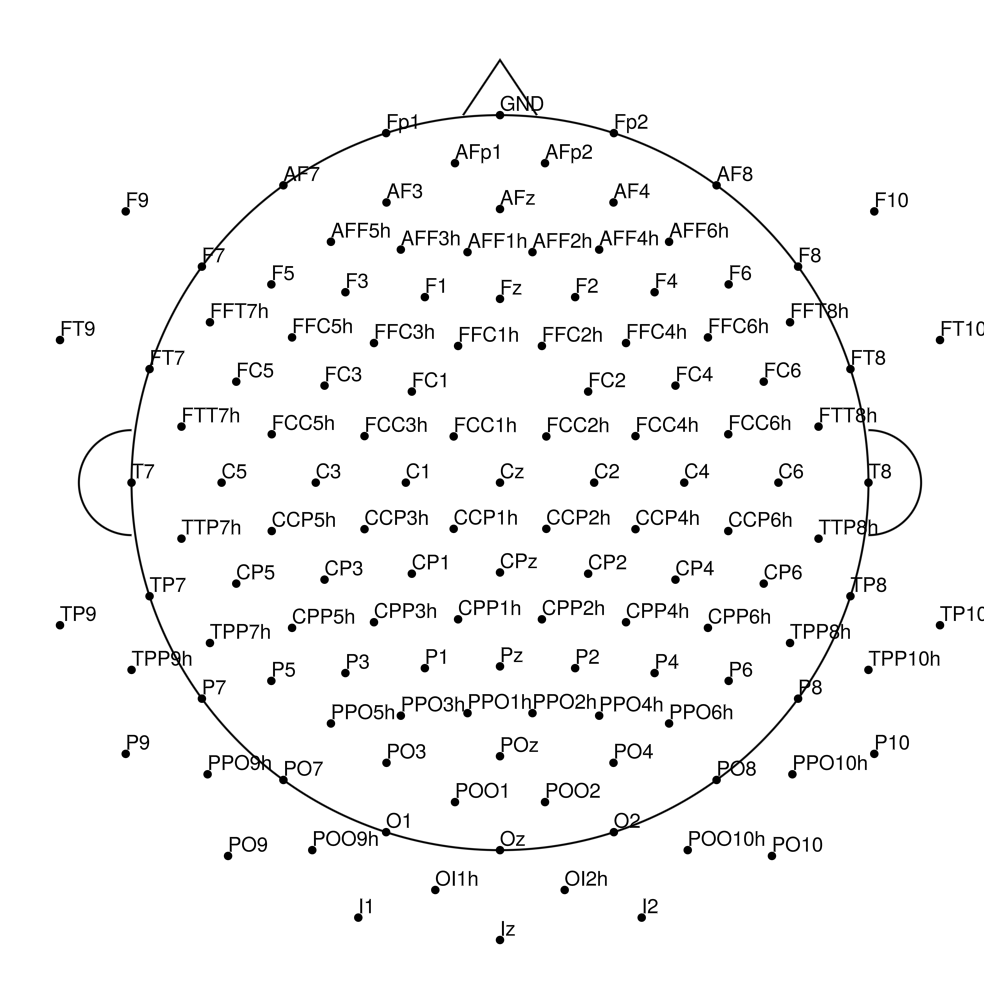

RNP-AC-128 (128 channels) - R-Net for actiCHamp Plus (with Iz)

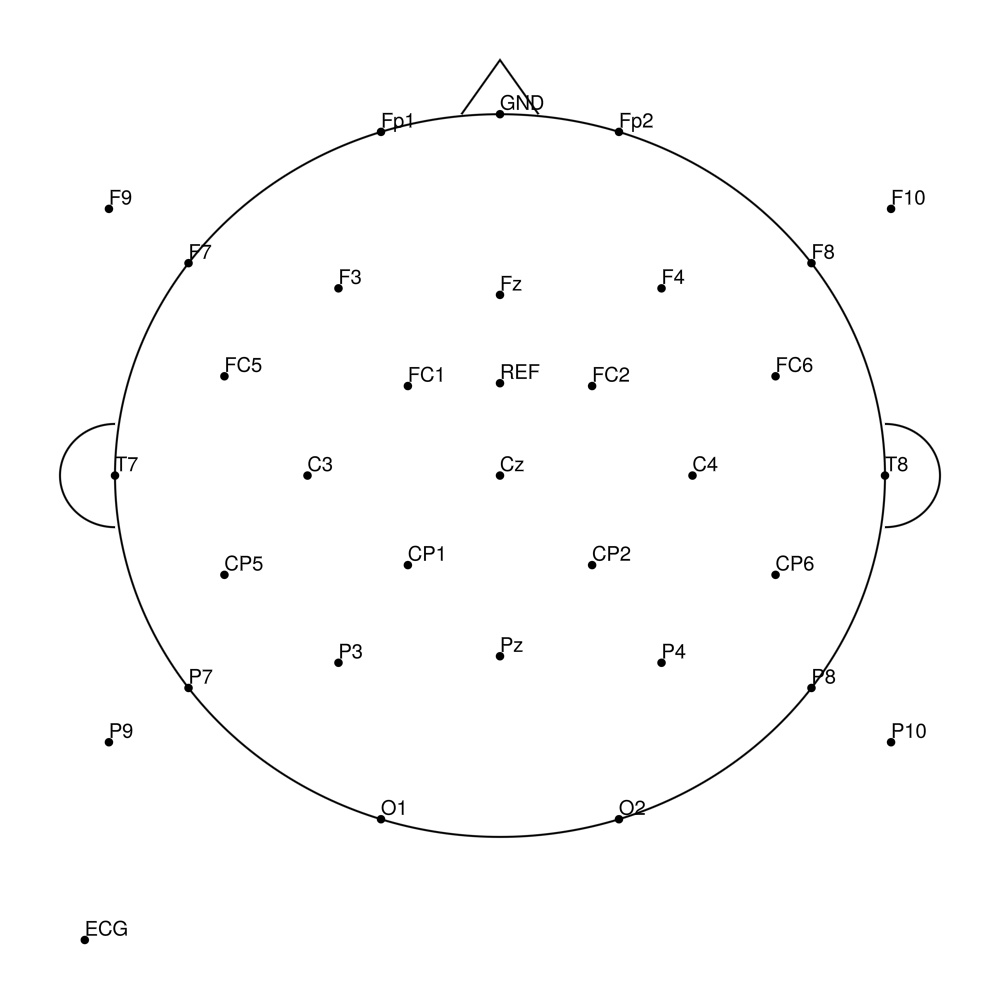

RNP-BA-MR3-32 (32 channels) - R-Net MR3

RNP-BA-MR3-64 (64 channels) - R-Net MR3

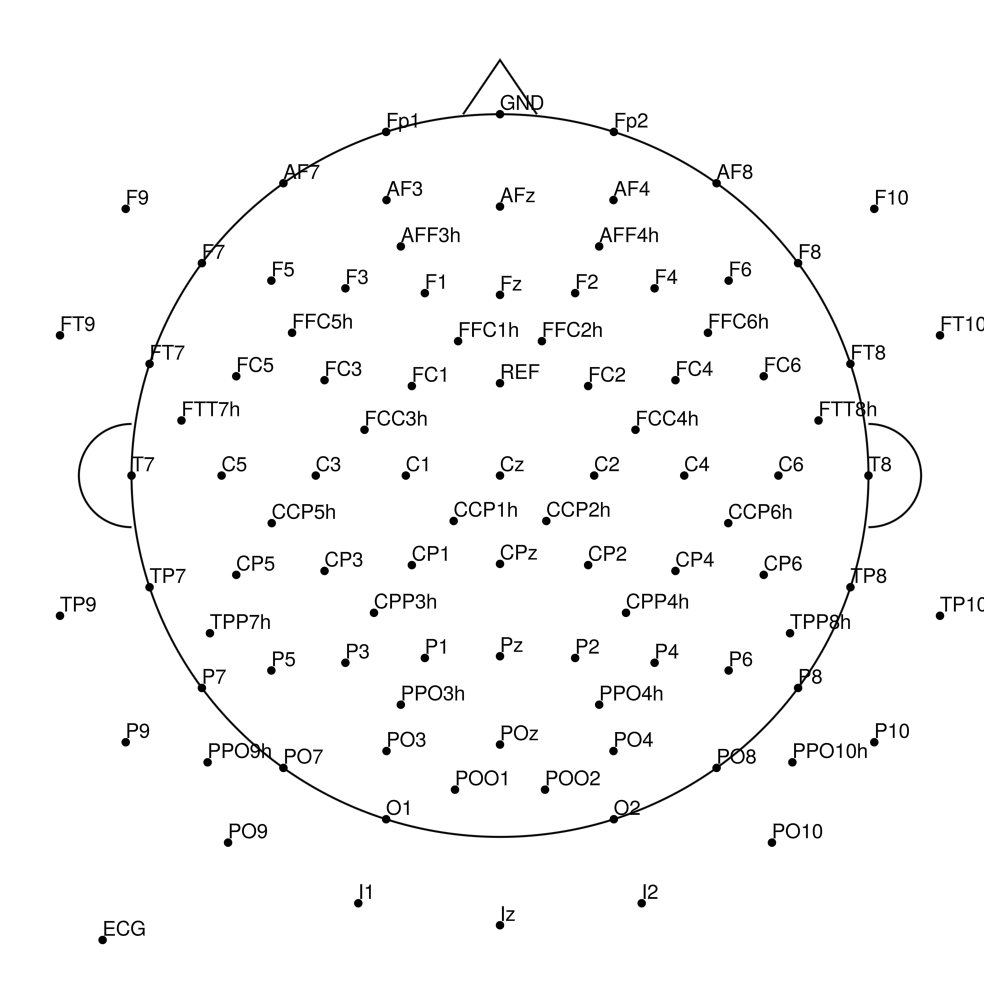

RNP-BA-MR3-96 (96 channels) - R-Net MR3

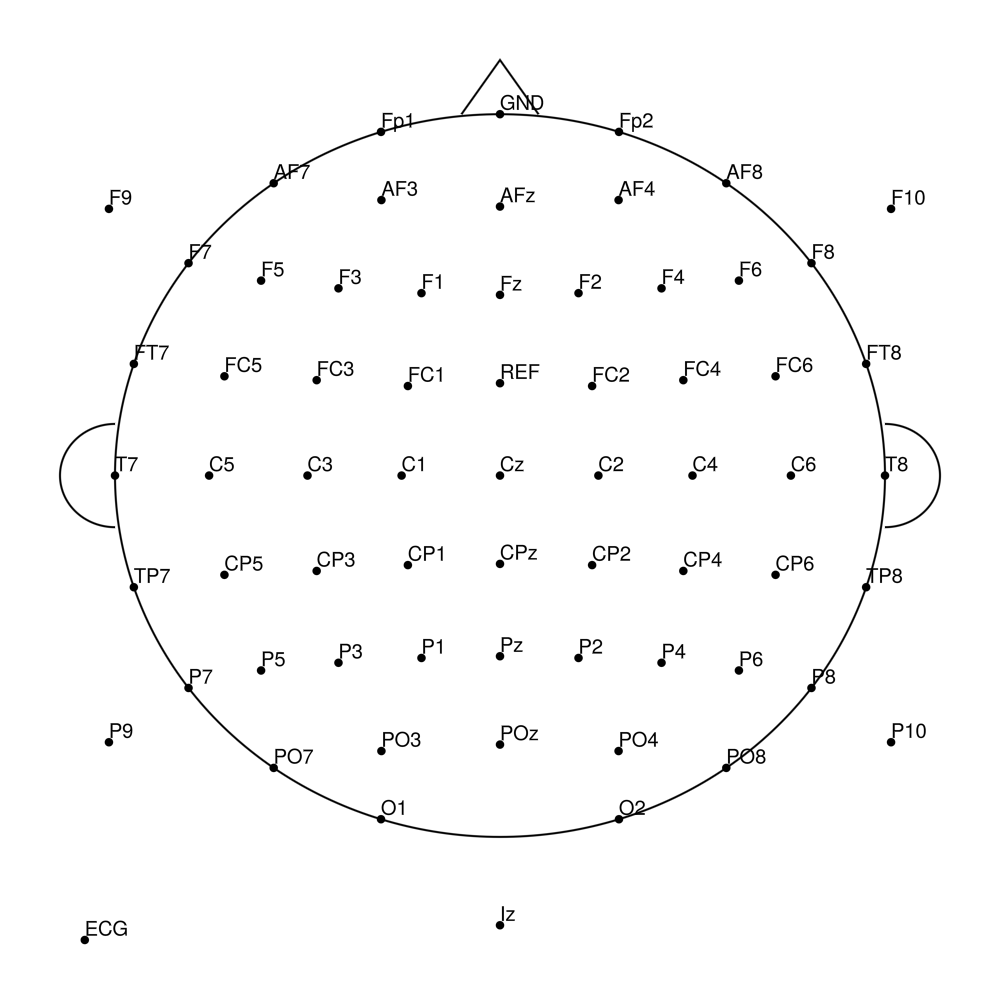

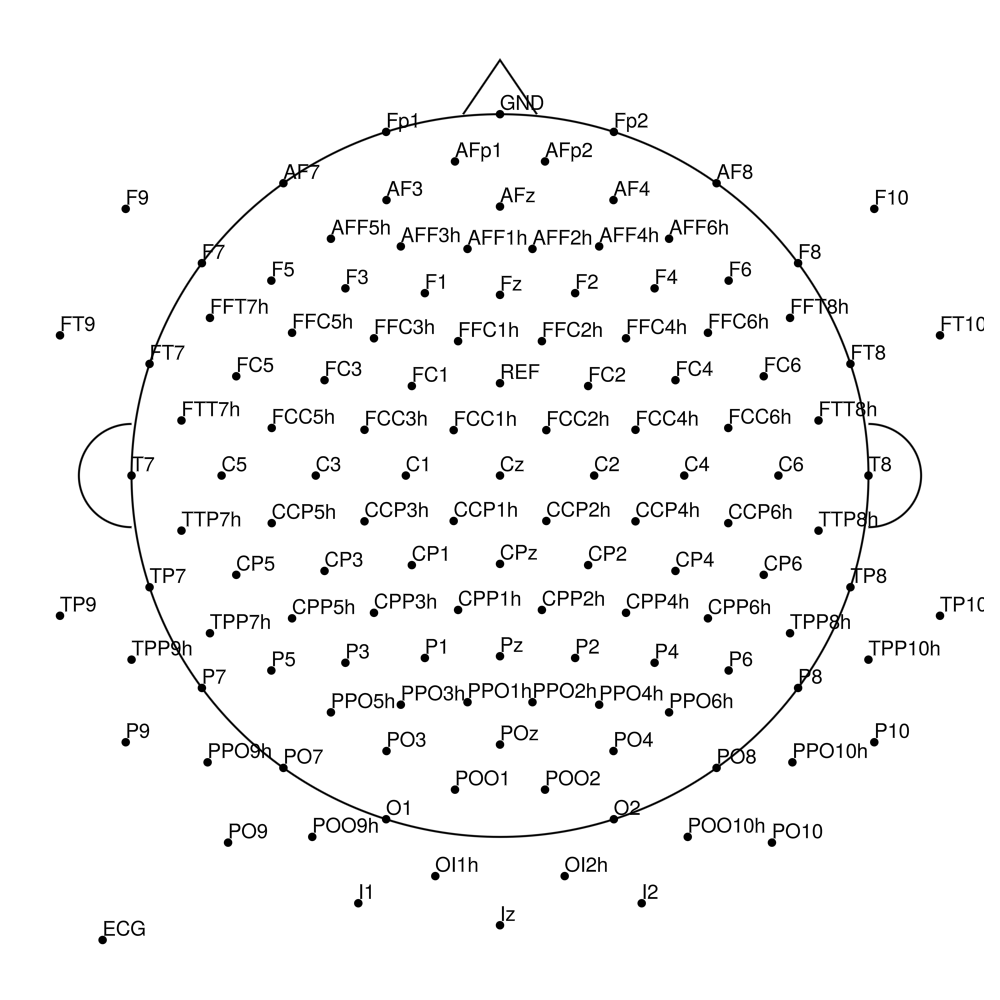

RNP-BA-MR3-128 (128 channels) - R-Net MR3

RNP-AP-32 (32 channels) - R-Net for actiCHamp Plus

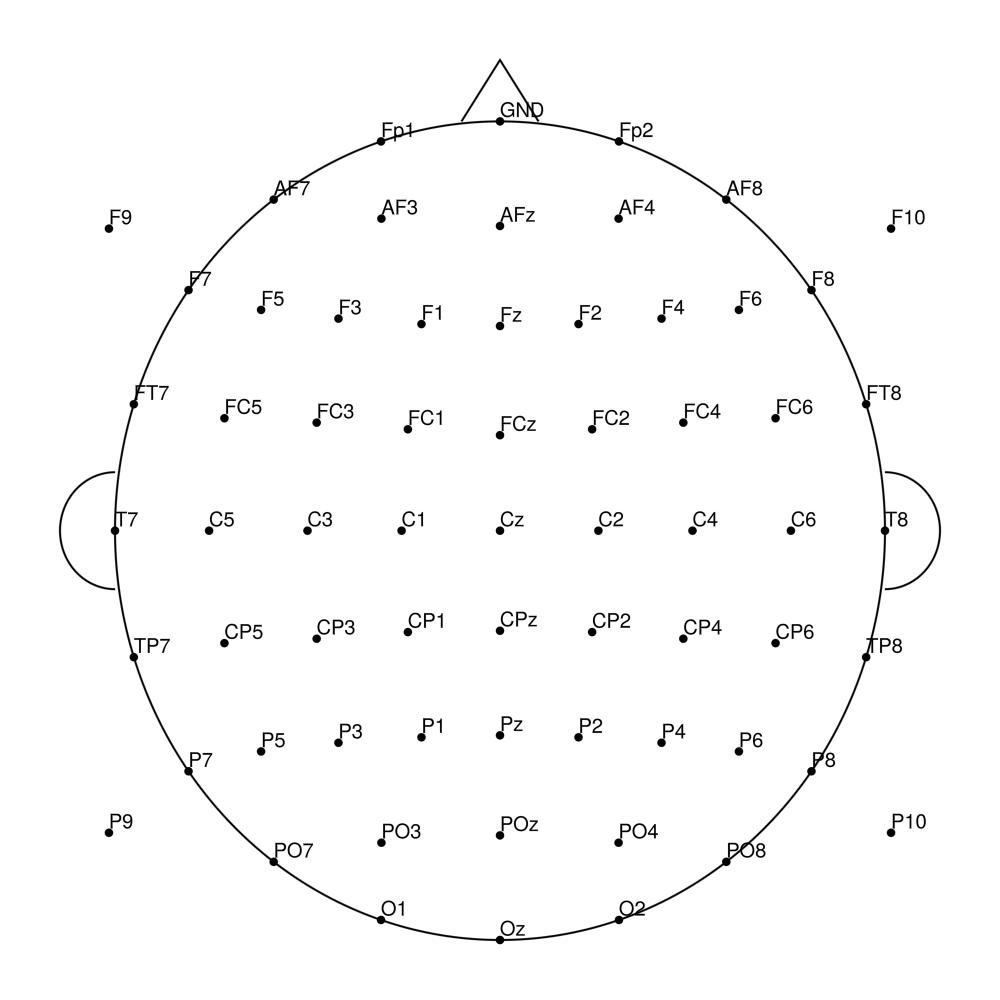

RNP-AP-64 (64 channels) - R-Net for actiCHamp Plus (with FCz)

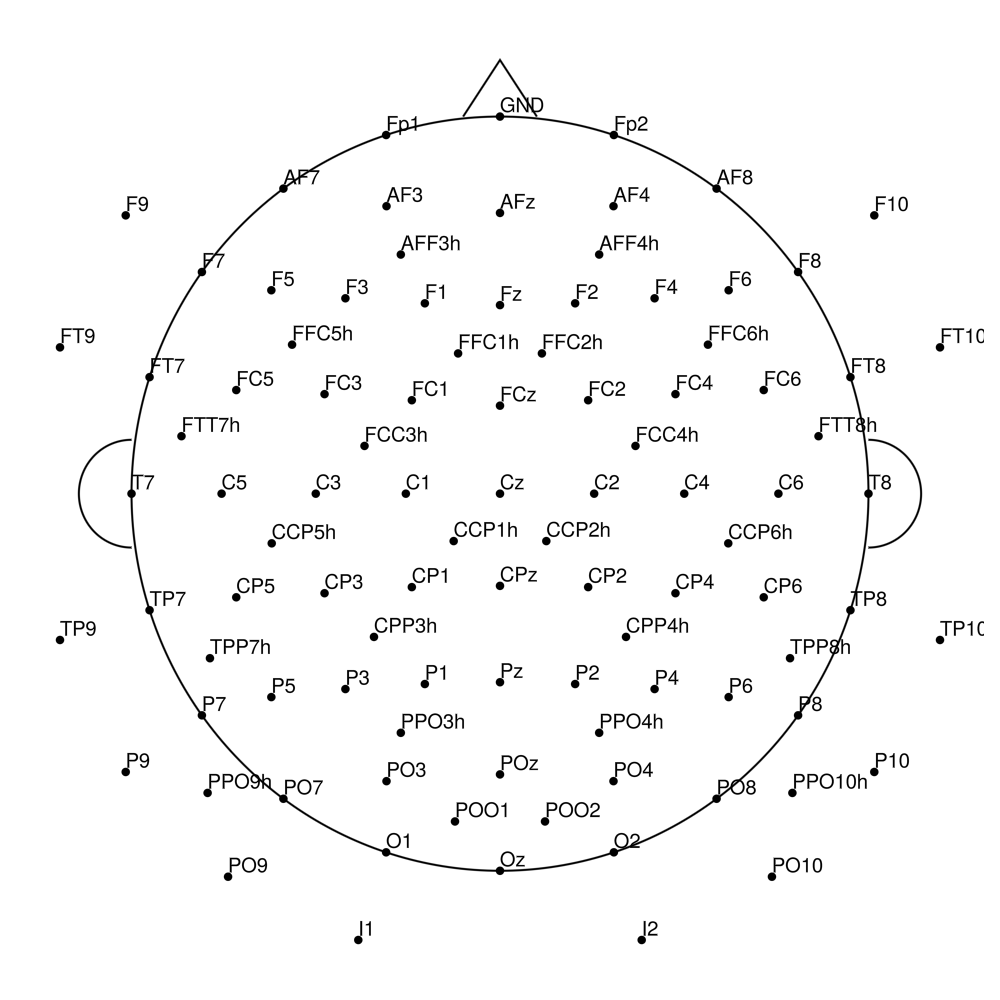

RNP-AP-96 (96 channels) - R-Net for actiCHamp Plus (with FCz)

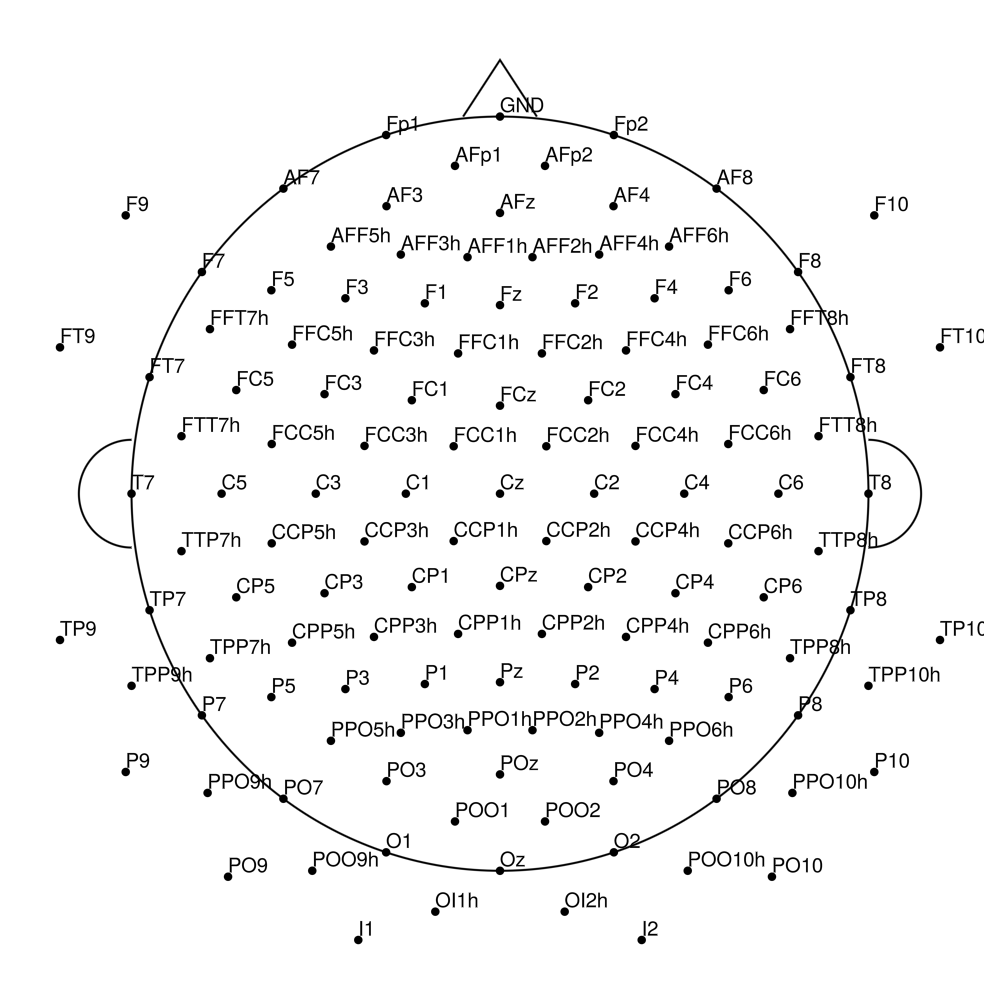

RNP-AP-128 (128 channels) - R-Net for actiCHamp Plus (with FCz)

RNP-AP-160 (160 channels) - R-Net for actiCHamp Plus (with FCz, Iz)

actiCAP (Standard)

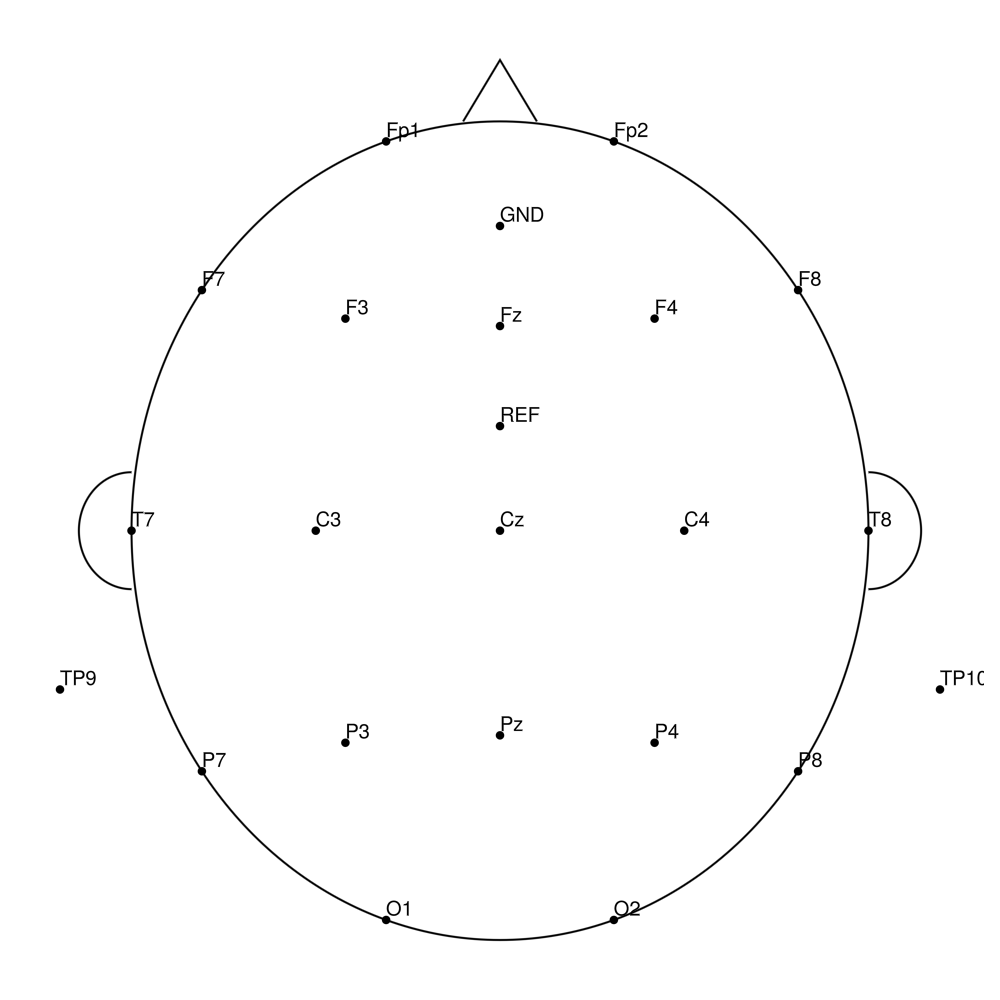

AC-21 (21 channels)

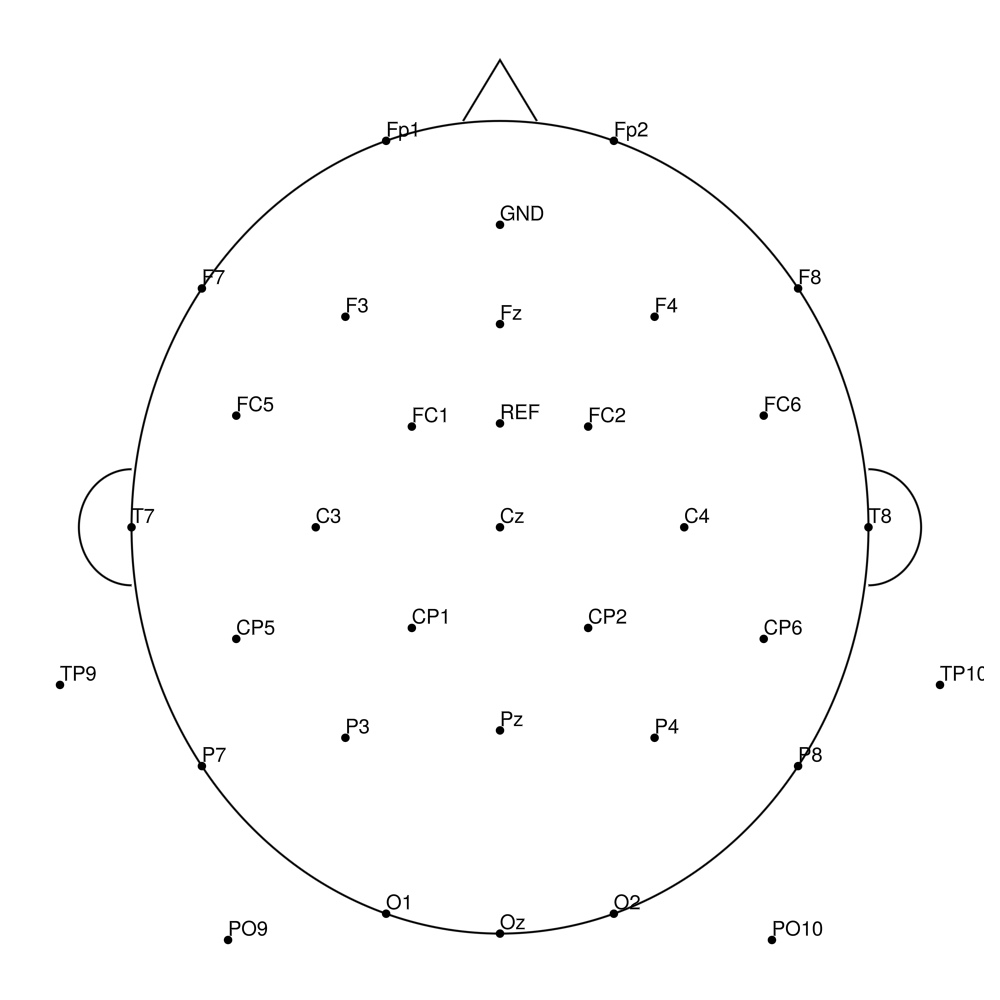

AC-32 (32 channels)

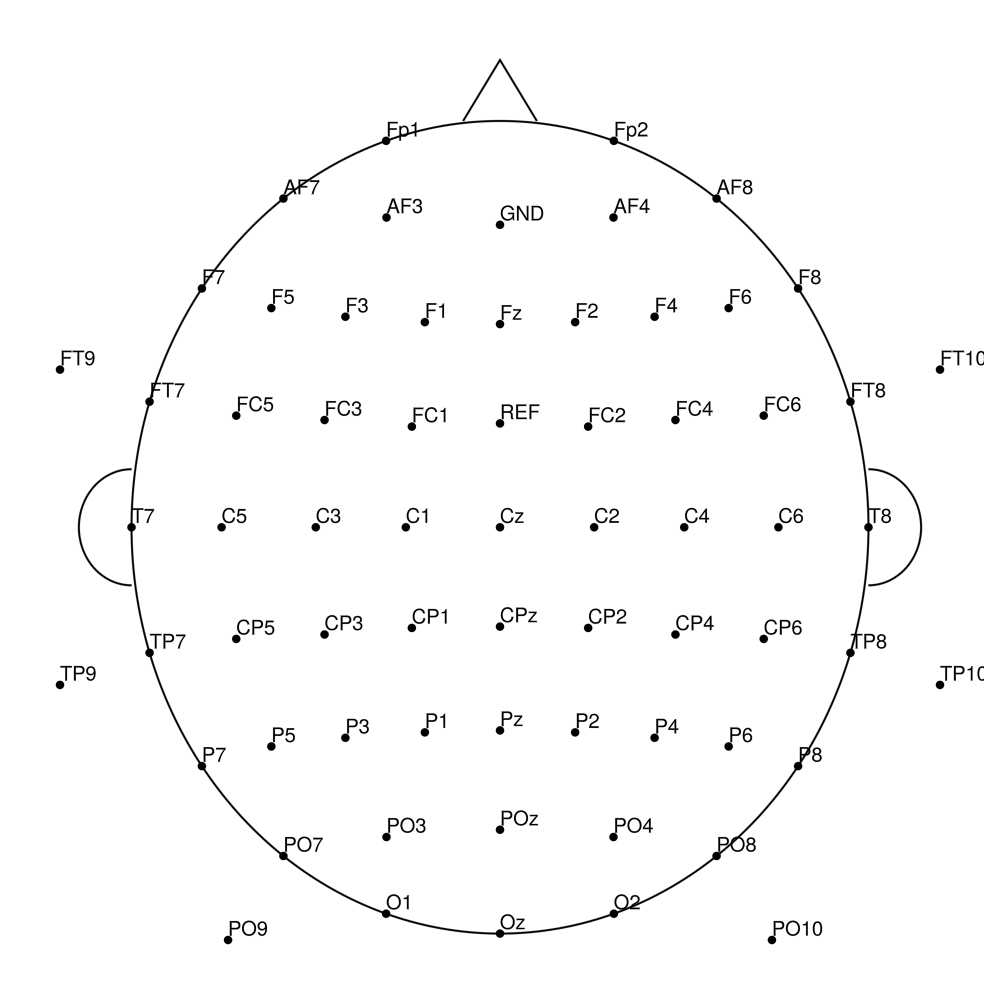

AC-64 (64 channels)

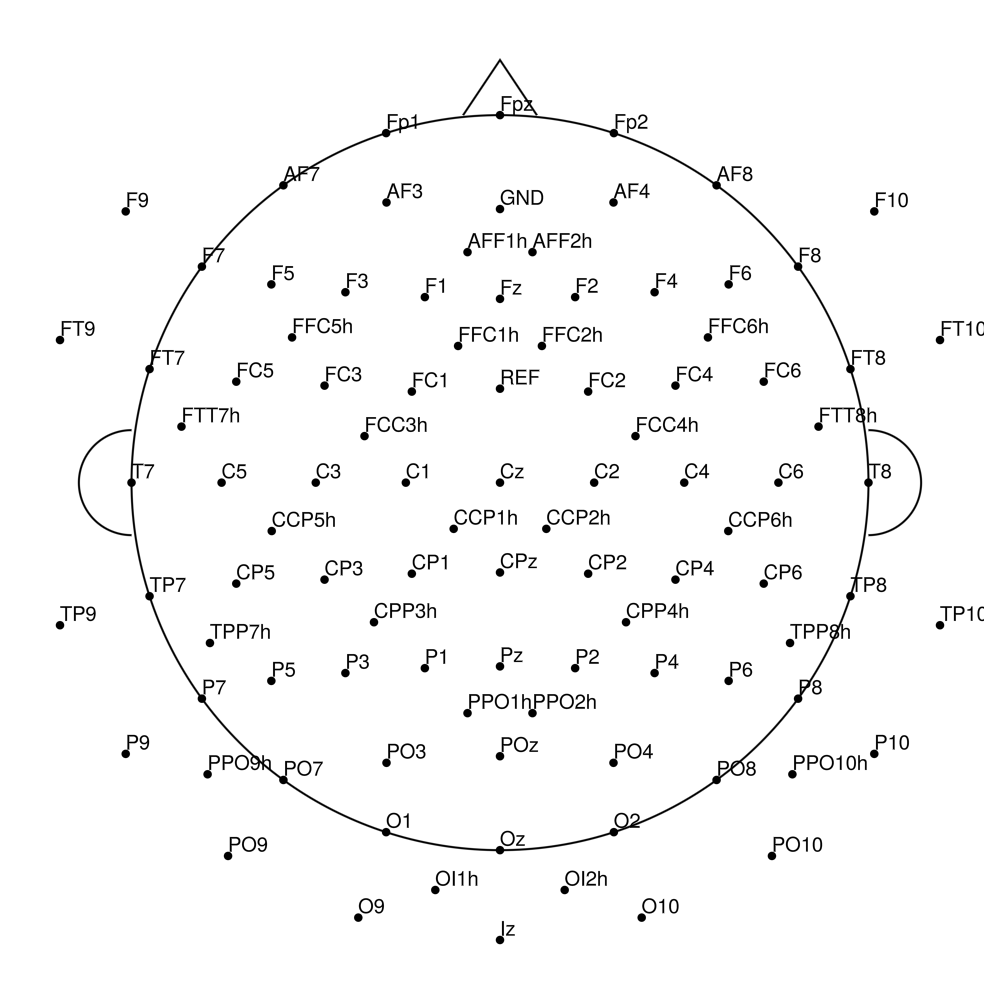

AC-96 (96 channels)

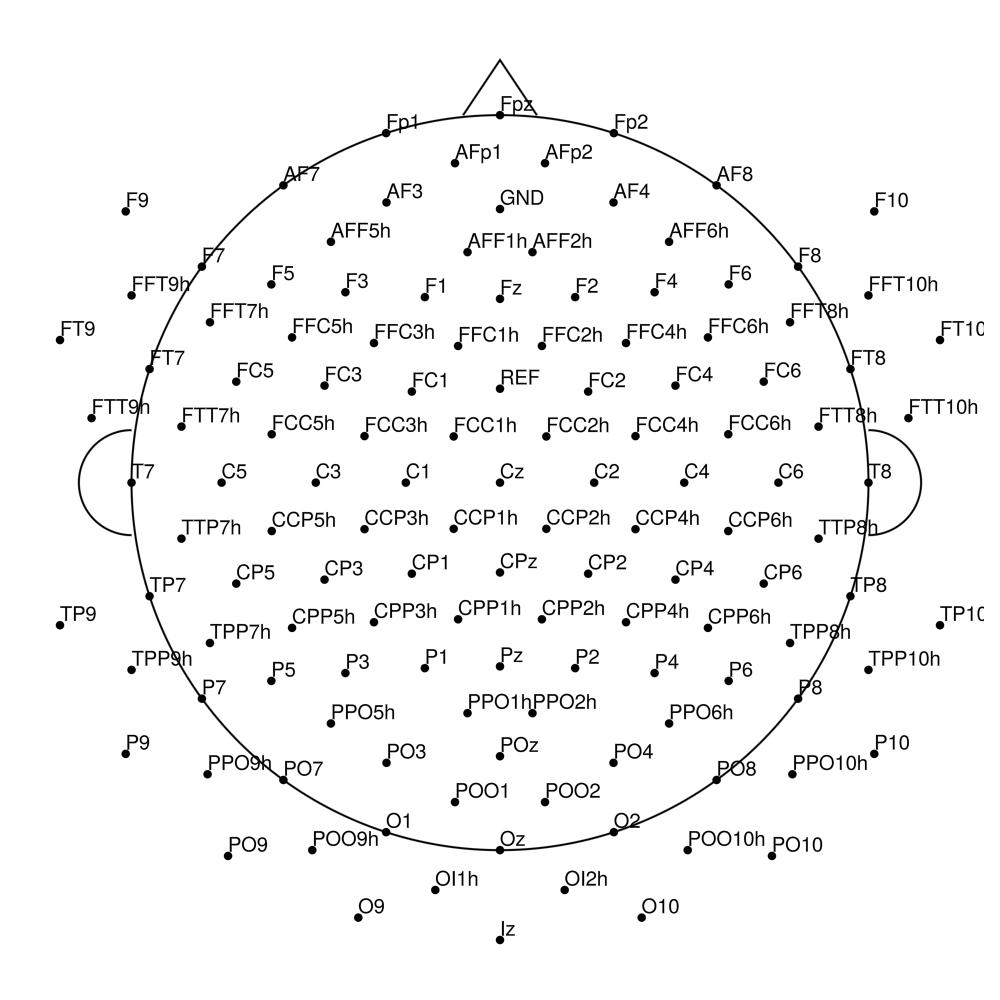

AC-128 (128 channels)

actiCAP Xpress Twist

Twist-32 (32 channels) - for BrainAmp (with REF)

Twist-32 (32 channels) - for LiveAmp (with REF)

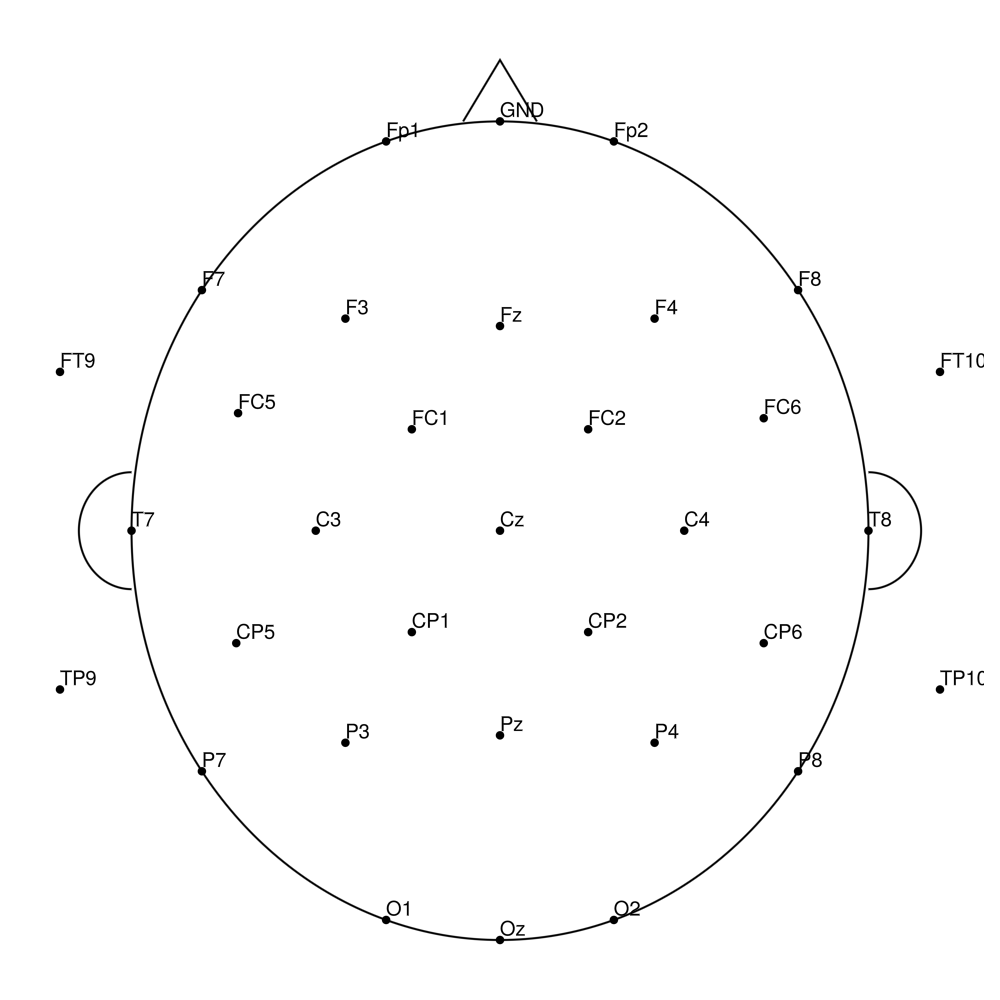

Twist-32 (32 channels) - for actiCHamp (no REF)

actiCHamp Electrode Cap (CAP)

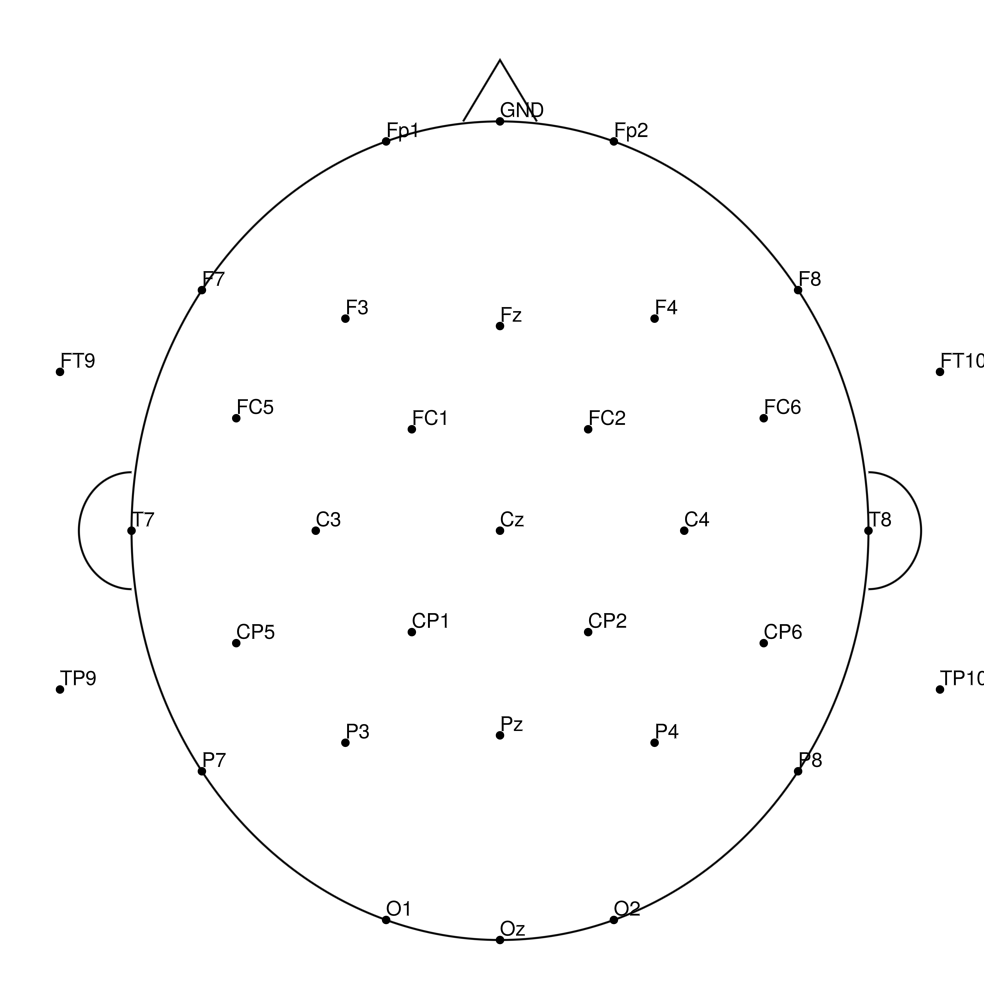

AP-32 (32 channels) - actiCHamp electrode cap

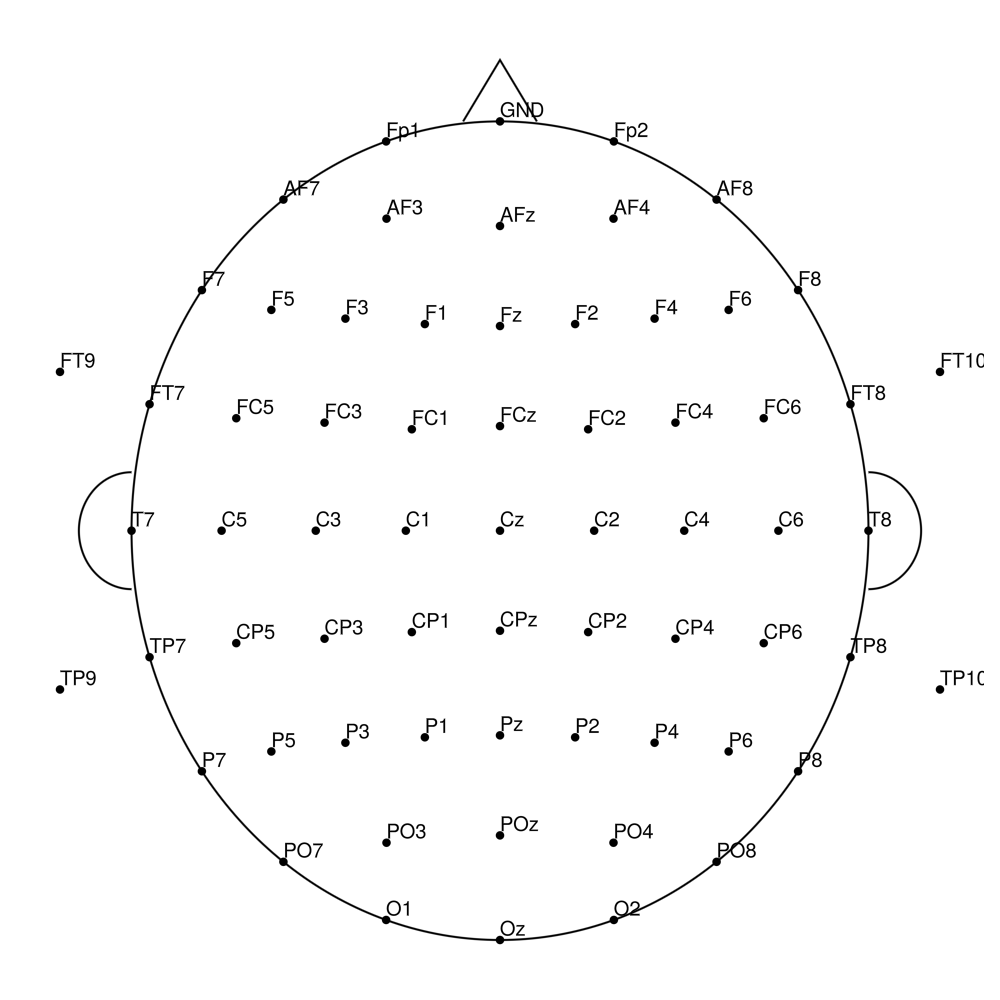

AP-64 (64 channels) - actiCHamp electrode cap

AP-96 (96 channels) - actiCHamp electrode cap

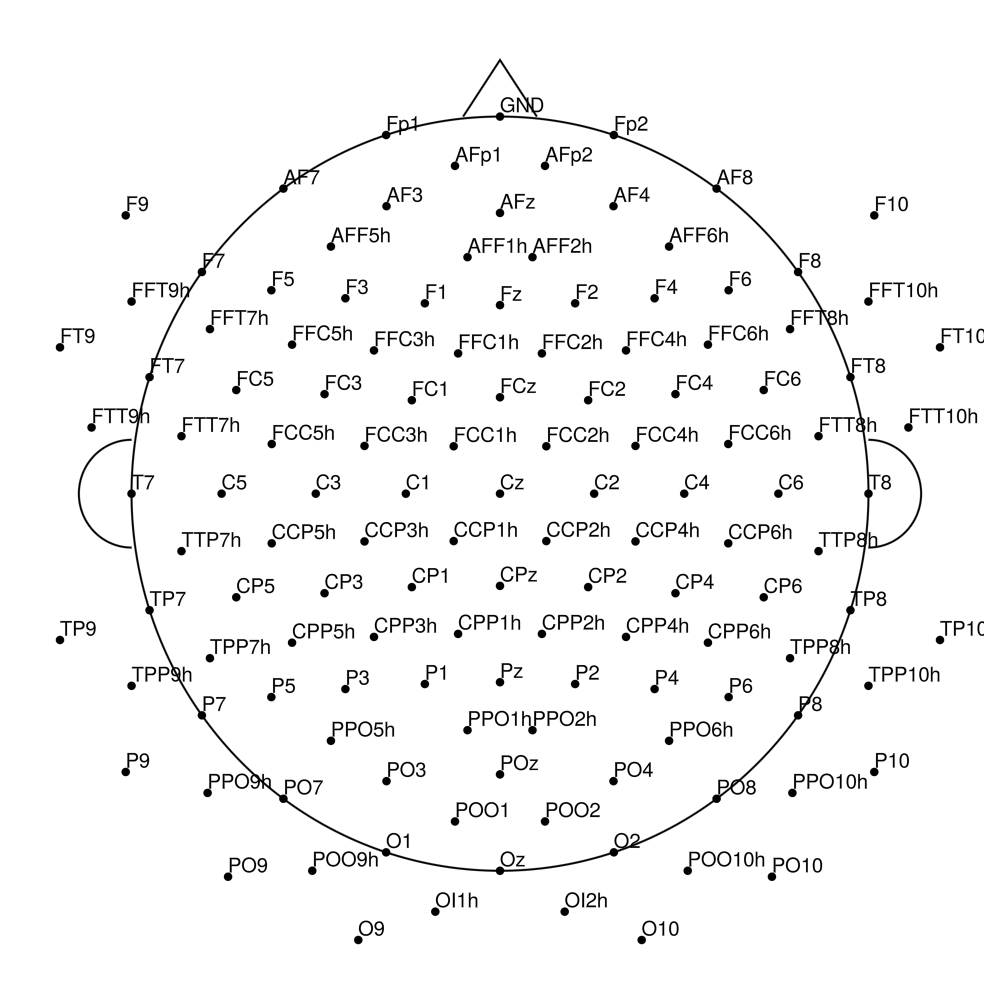

AP-128 (128 channels) - actiCHamp electrode cap

AP-160 (160 channels) - actiCHamp electrode cap

actiCAP UOL (CMA)

CMA-21 (21 channels) - BrainAmp (with REF)

CMA-21 (21 channels) - actiCHamp (no REF)

CMA-21 (21 channels) - actiCHamp Plus (no REF)

CMA-32 (32 channels) - BrainAmp (with REF)

CMA-32 (32 channels) - actiCHamp (no REF)

CMA-32 (32 channels) - actiCHamp Plus (no REF)

CMA-64 (64 channels) - BrainAmp (with REF)

CMA-64 (64 channels) - actiCHamp (no REF)

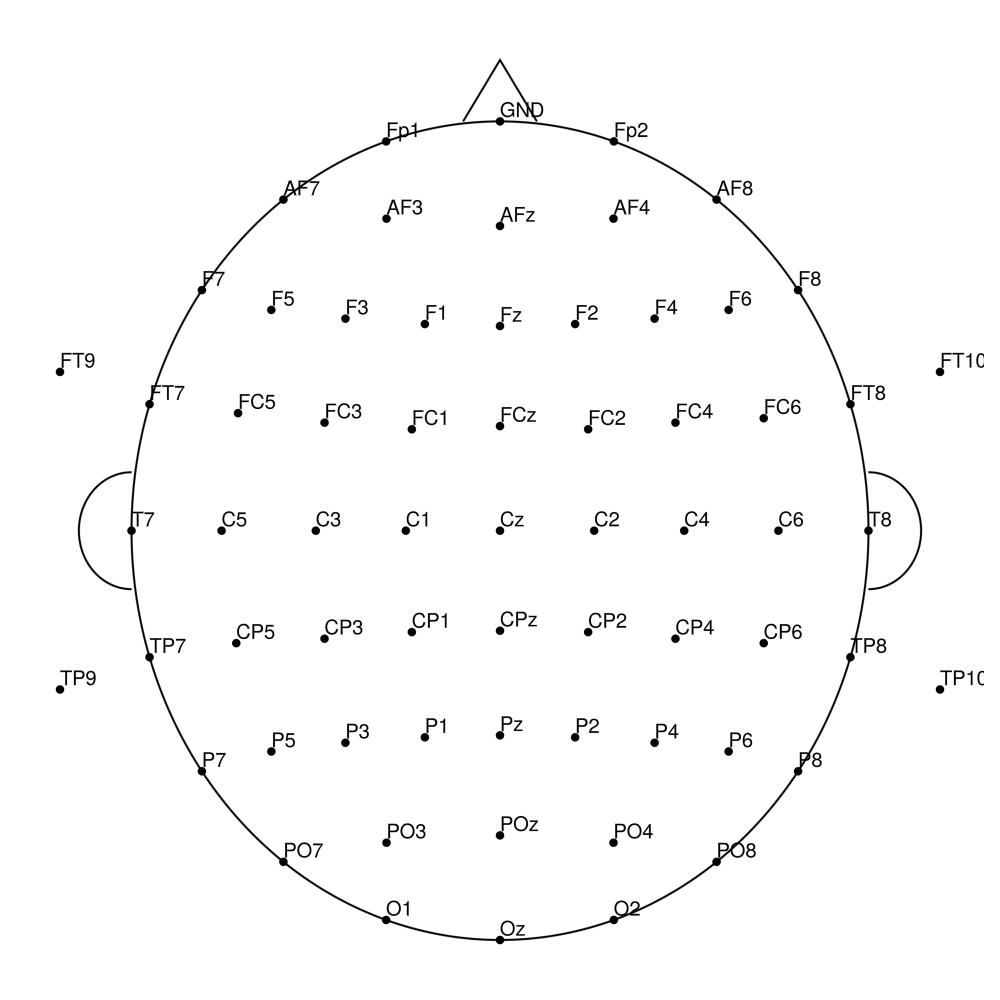

CMA-64 (64 channels) - actiCHamp Plus (no REF)

CMA-96 (96 channels) - BrainAmp (with REF)

CMA-96 (96 channels) - actiCHamp (no REF)

CMA-96 (96 channels) - actiCHamp Plus (no REF)

CMA-128 (128 channels) - BrainAmp (with REF)

CMA-128 (128 channels) - actiCHamp (no REF)

CMA-128 (128 channels) - actiCHamp Plus (no REF)

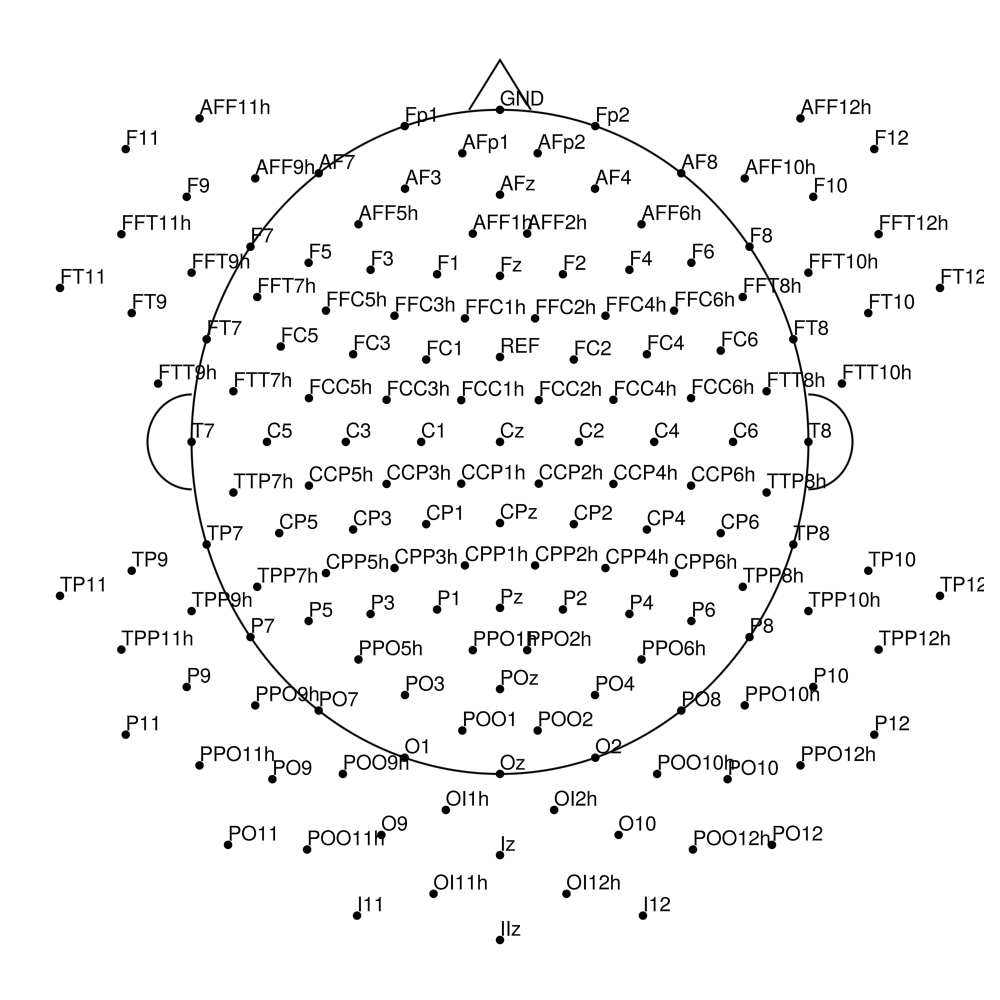

CMA-160 (160 channels) - BrainAmp (with REF)

CMA-160 (160 channels) - actiCHamp (no REF)

CMA-160 (160 channels) - actiCHamp Plus (no REF)

actiCAP Slim (AS)

AS-32 (32 channels) - with REF

AS-32 (32 channels) - no REF

AS-64 (64 channels) - with REF

AS-64 (64 channels) - no REF

AS-96 (96 channels) - with REF

AS-96 (96 channels) - no REF

AS-128 (128 channels) - with REF

AS-128 (128 channels) - no REF

AS-160 (160 channels) - with REF

AS-160 (160 channels) - no REF

actiCap for LiveAmp

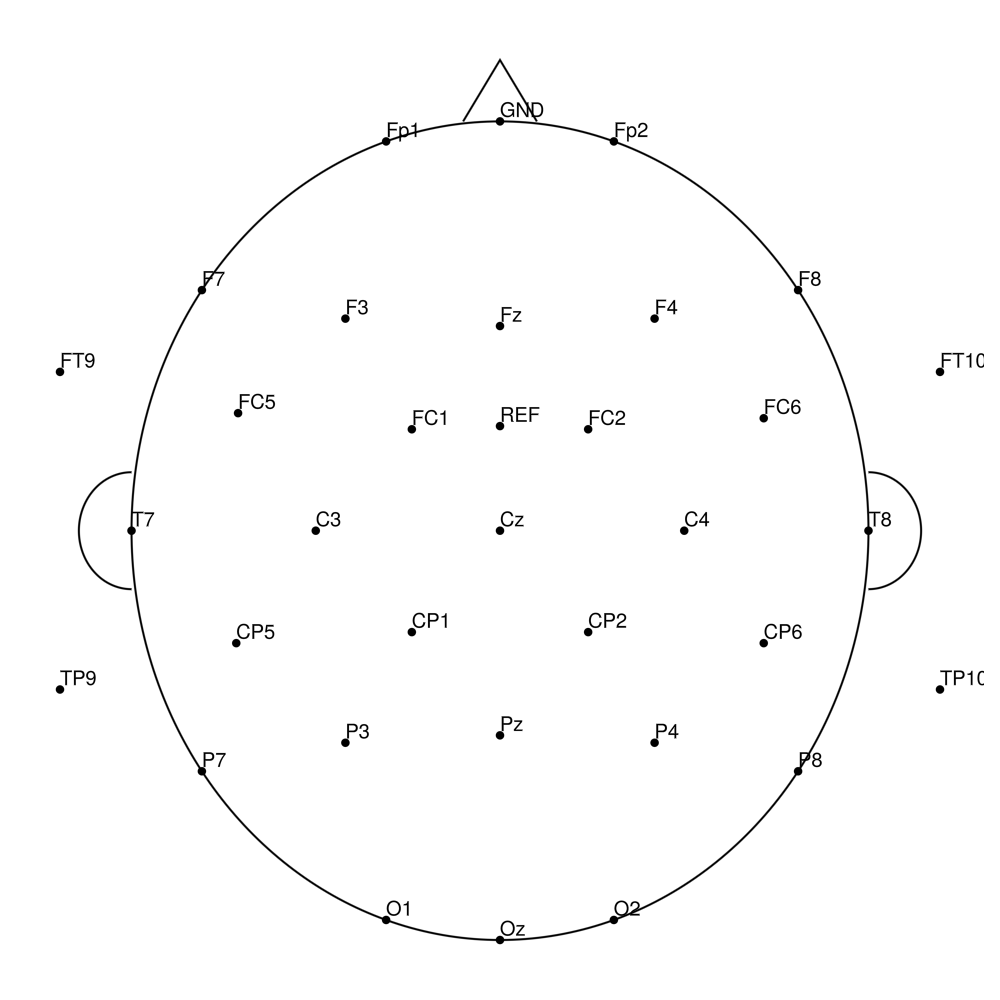

CLA-32 (32 channels) - actiCap for LiveAmp

actiCap Slim (ASP) — for BrainAmpDC

CACS-32 (32 channels) - for BrainAmpDC (with REF)

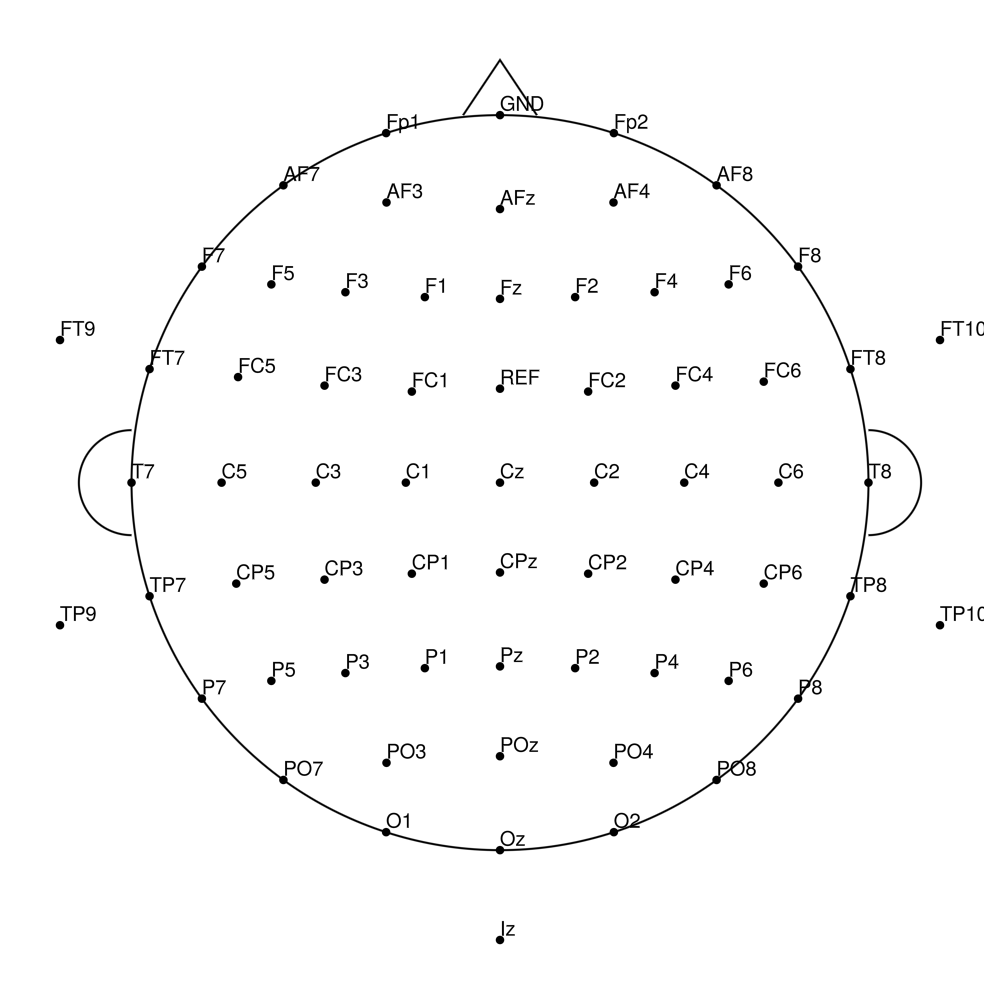

CACS-64 (64 channels) - for BrainAmpDC (with REF)

CACS-96 (96 channels) - for BrainAmpDC (with REF)

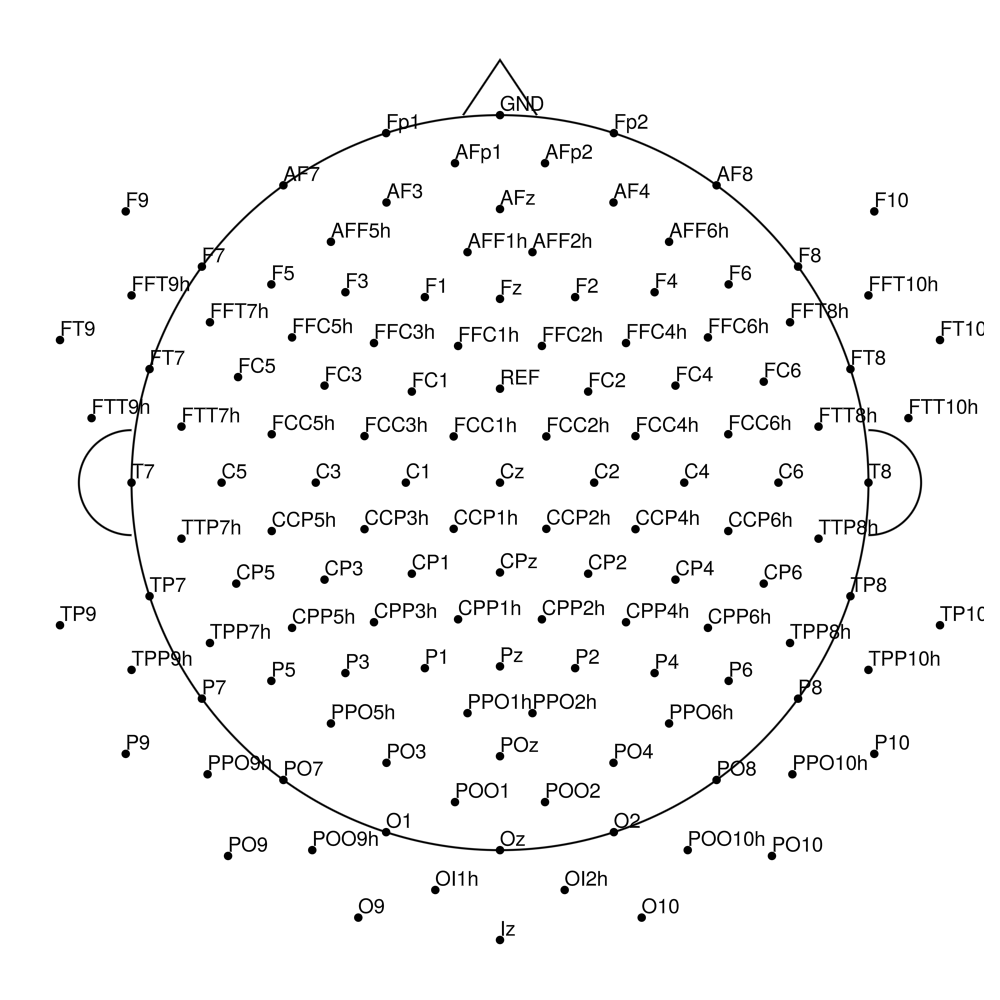

CACS-128 (128 channels) - for BrainAmpDC (with REF)

actiCap Slim (ASP) — for LiveAmp

CACS-32 (32 channels) - for LiveAmp (with REF)

CACS-64 (64 channels) - for LiveAmp (with REF)

actiCap Slim (ASP) — for actiCHamp Plus

CACS-32 (32 channels) - for actiCHamp Plus (no REF)

CACS-64 (64 channels) - for actiCHamp Plus (no REF)

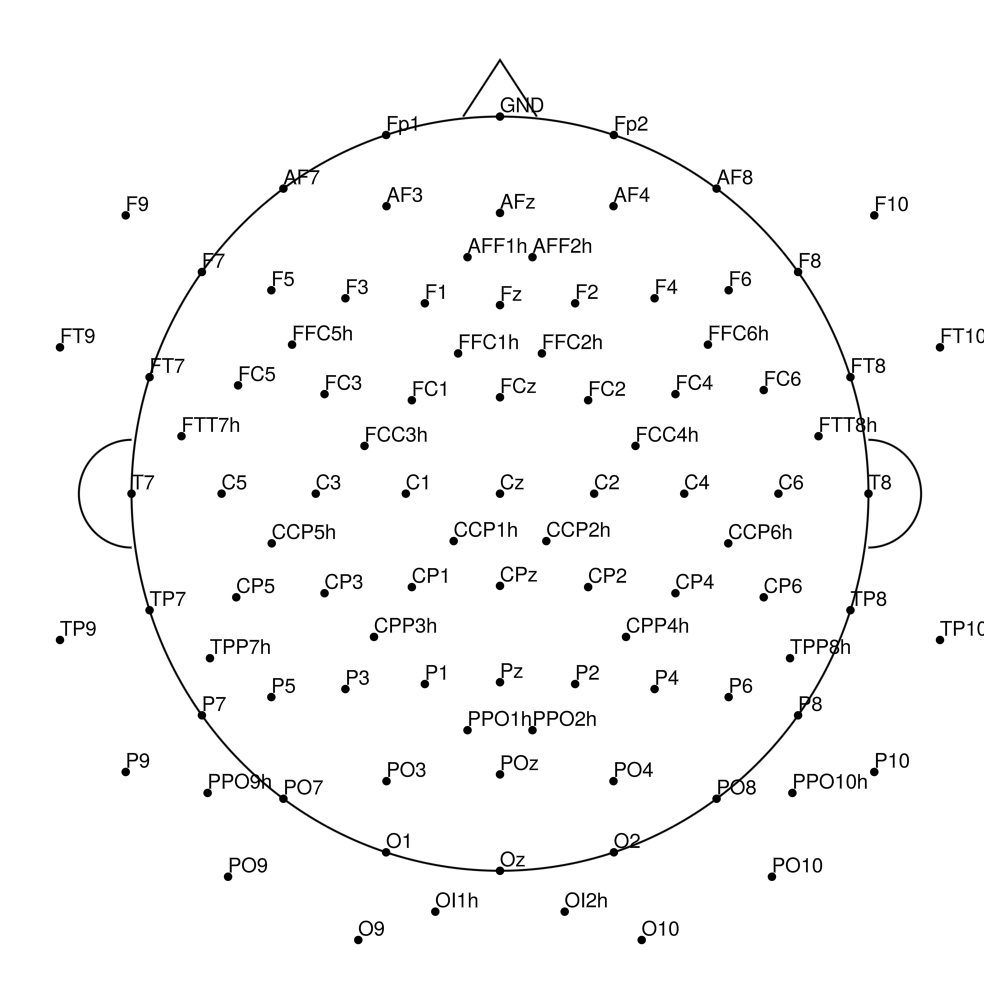

CACS-96 (96 channels) - for actiCHamp Plus (no REF)

CACS-128 (128 channels) - for actiCHamp Plus (no REF)

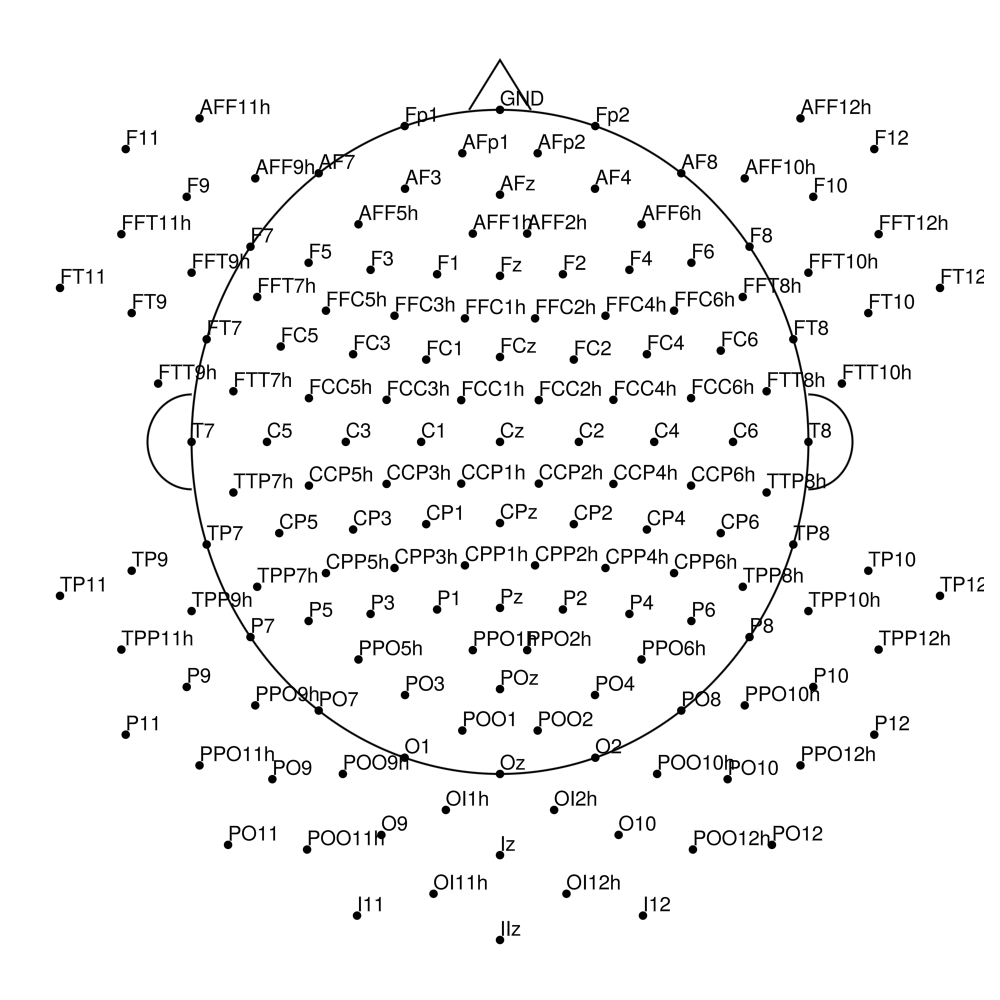

CACS-160 (160 channels) - for actiCHamp Plus (no REF)

actiCap Snap — for BrainAmpDC

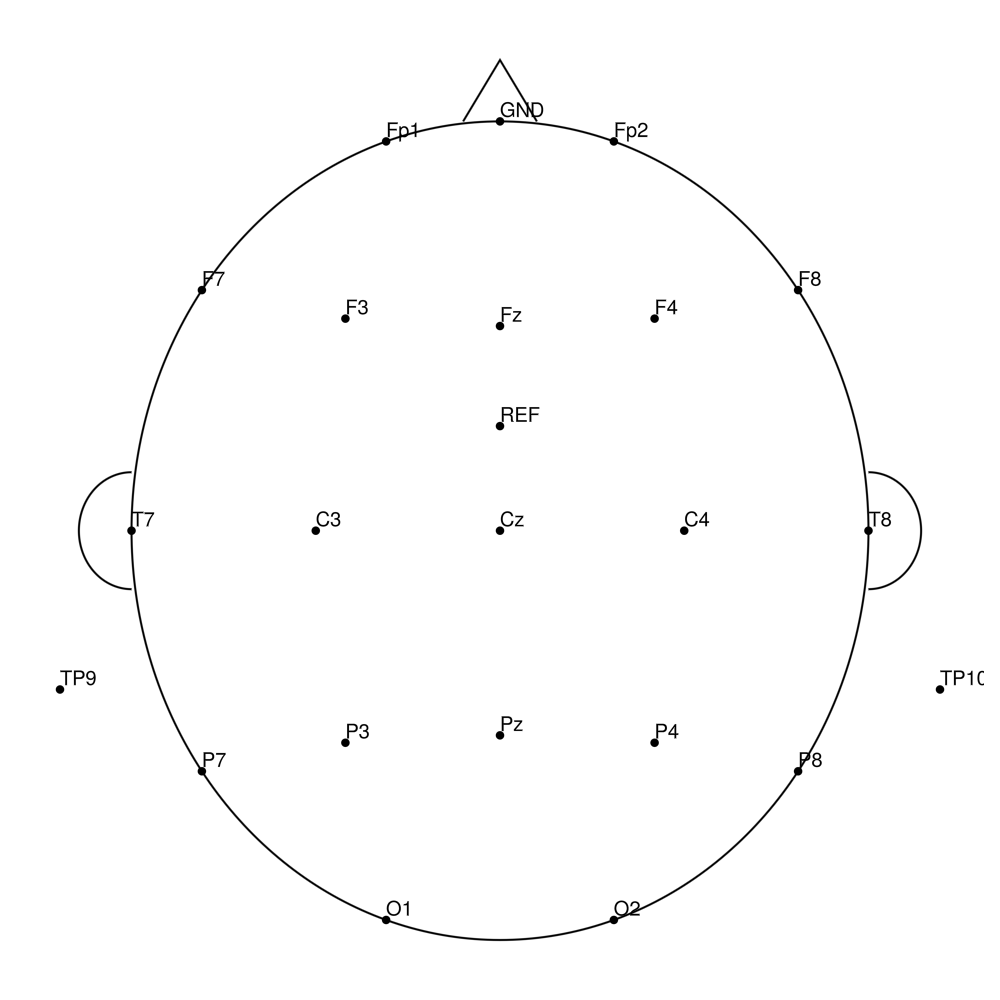

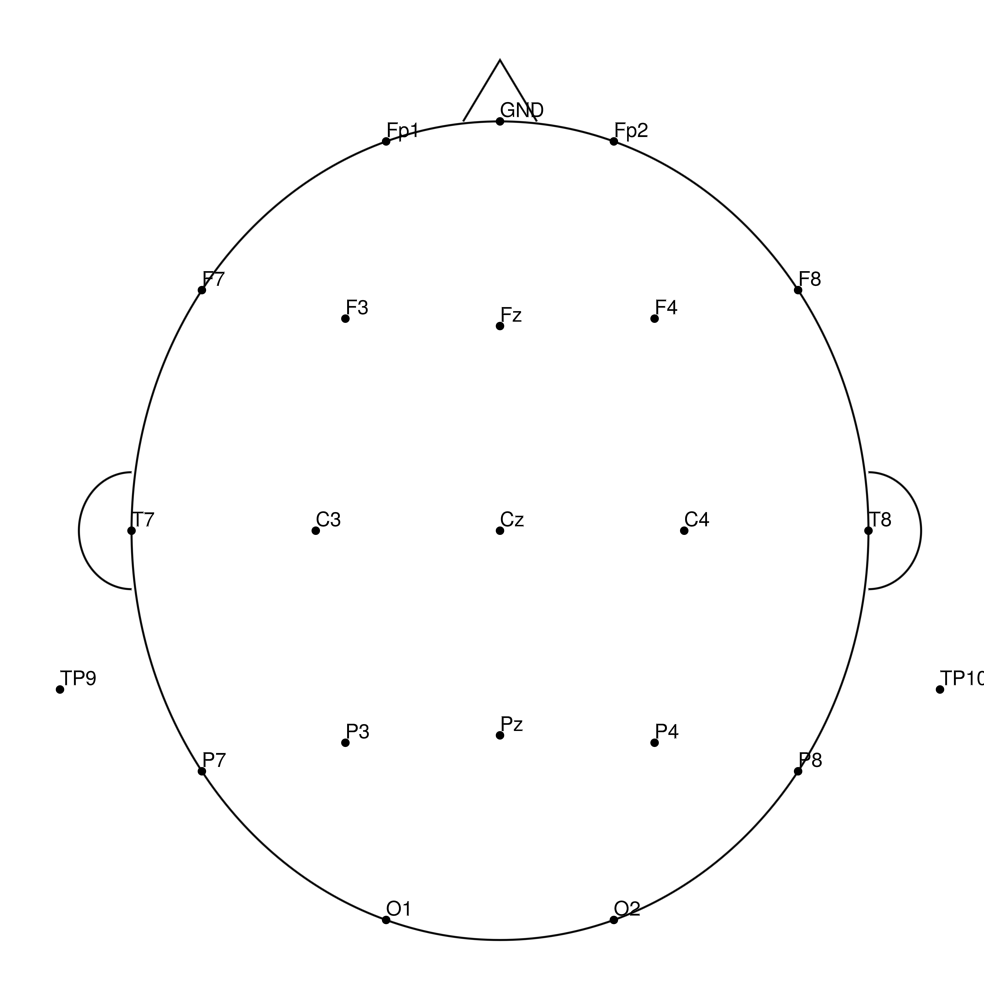

CACS-21 (21 channels) - for BrainAmpDC (with REF)

CACS-32 (32 channels) - snap for BrainAmpDC (with REF)

CACS-64 (64 channels) - snap for BrainAmpDC (with REF)

CACS-96 (96 channels) - snap for BrainAmpDC (with REF)

CACS-128 (128 channels) - snap for BrainAmpDC (with REF)

actiCap Snap — for LiveAmp

CACS-21 (21 channels) - snap for LiveAmp (with REF)

CACS-32 (32 channels) - snap for LiveAmp (with REF)

CACS-64 (64 channels) - snap for LiveAmp (with REF)

actiCap Snap — for actiCHamp Plus

CACS-21 (21 channels) - snap for actiCHamp Plus (no REF)

CACS-32 (32 channels) - snap for actiCHamp Plus (no REF)

CACS-64 (64 channels) - snap for actiCHamp Plus (no REF)

CACS-96 (96 channels) - snap for actiCHamp Plus (no REF)

CACS-128 (128 channels) - snap for actiCHamp Plus (no REF)

CACS-160 (160 channels) - snap for actiCHamp Plus (no REF)

actiCap Snap for LiveAmp (CLACS)

CLACS-32 (32 channels) - actiCap snap for LiveAmp

EasyCap

EasyCap montage configurations (M-series):

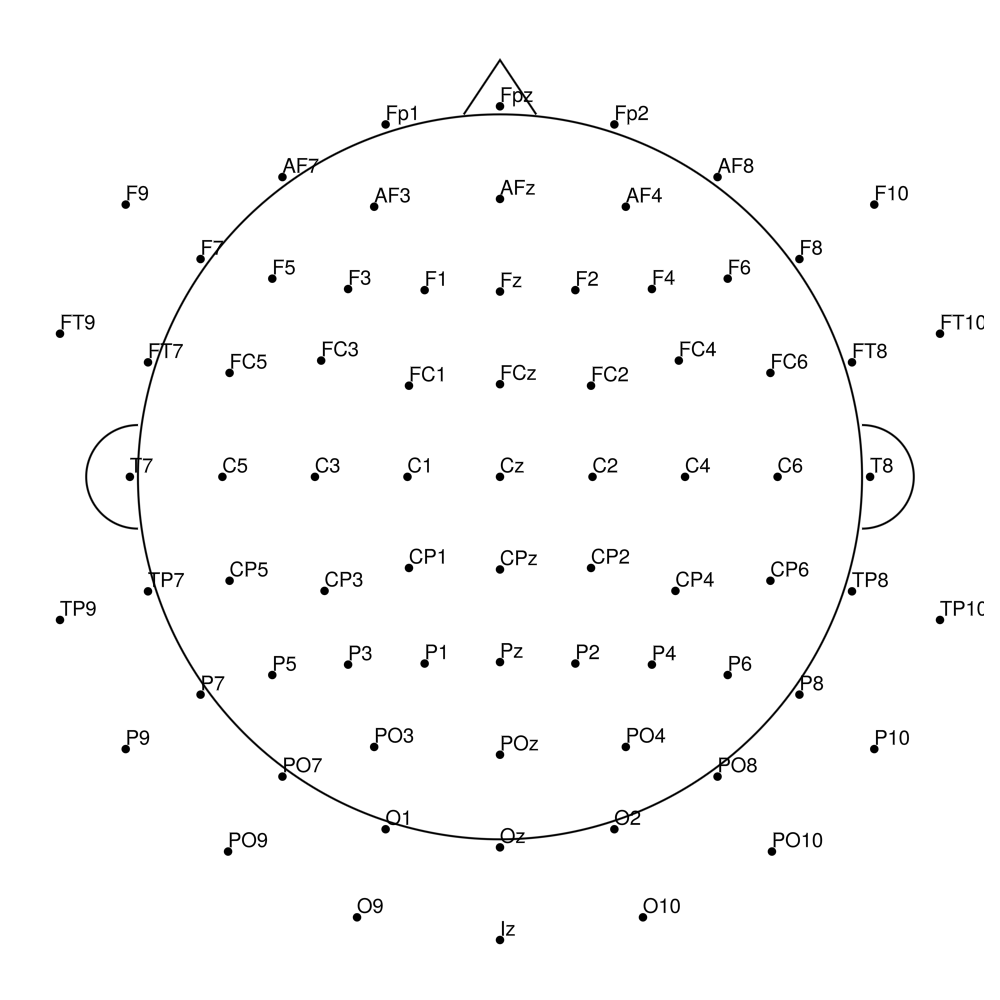

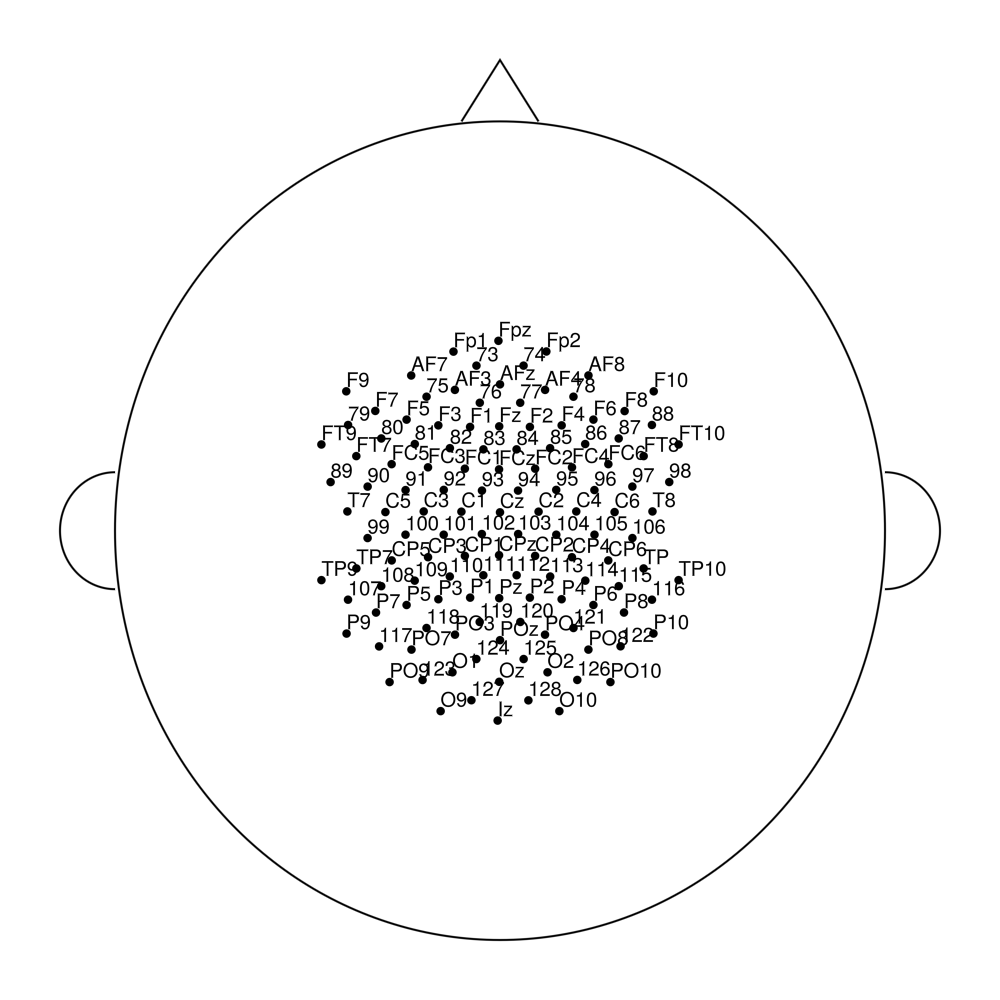

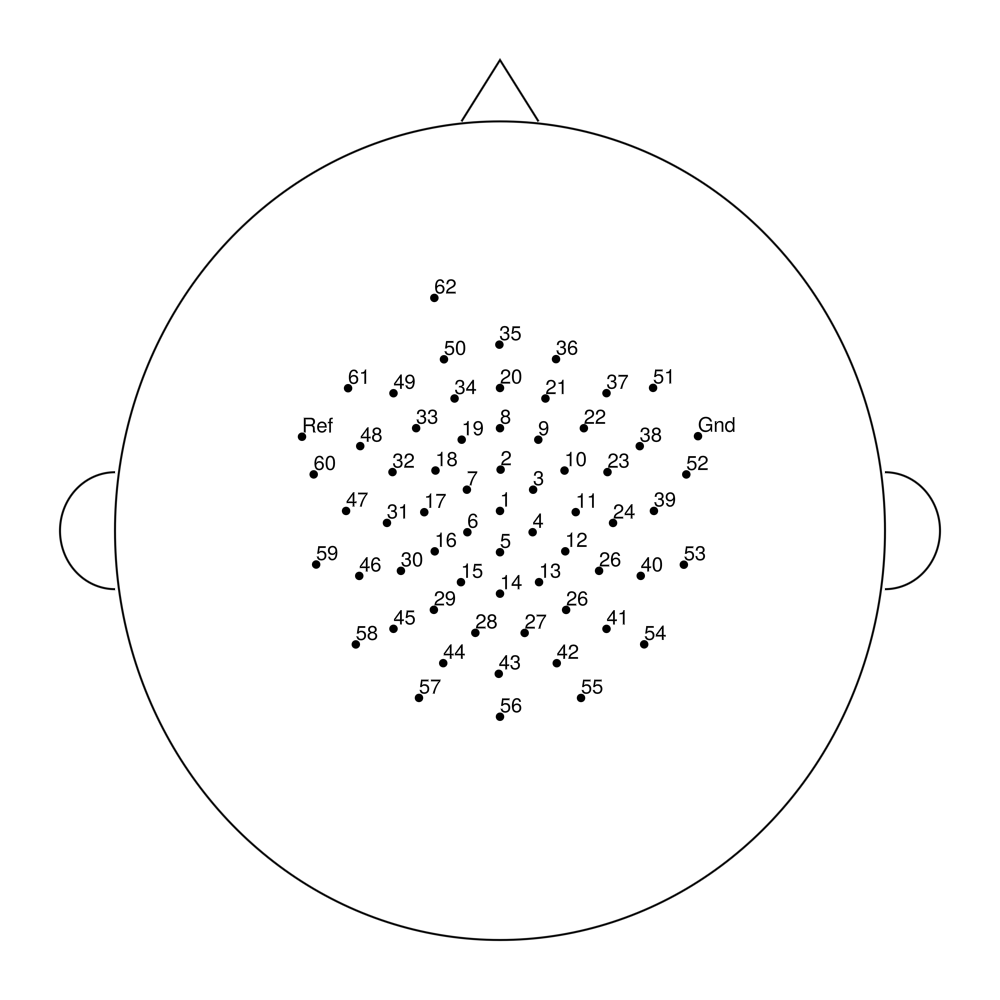

easycapM1

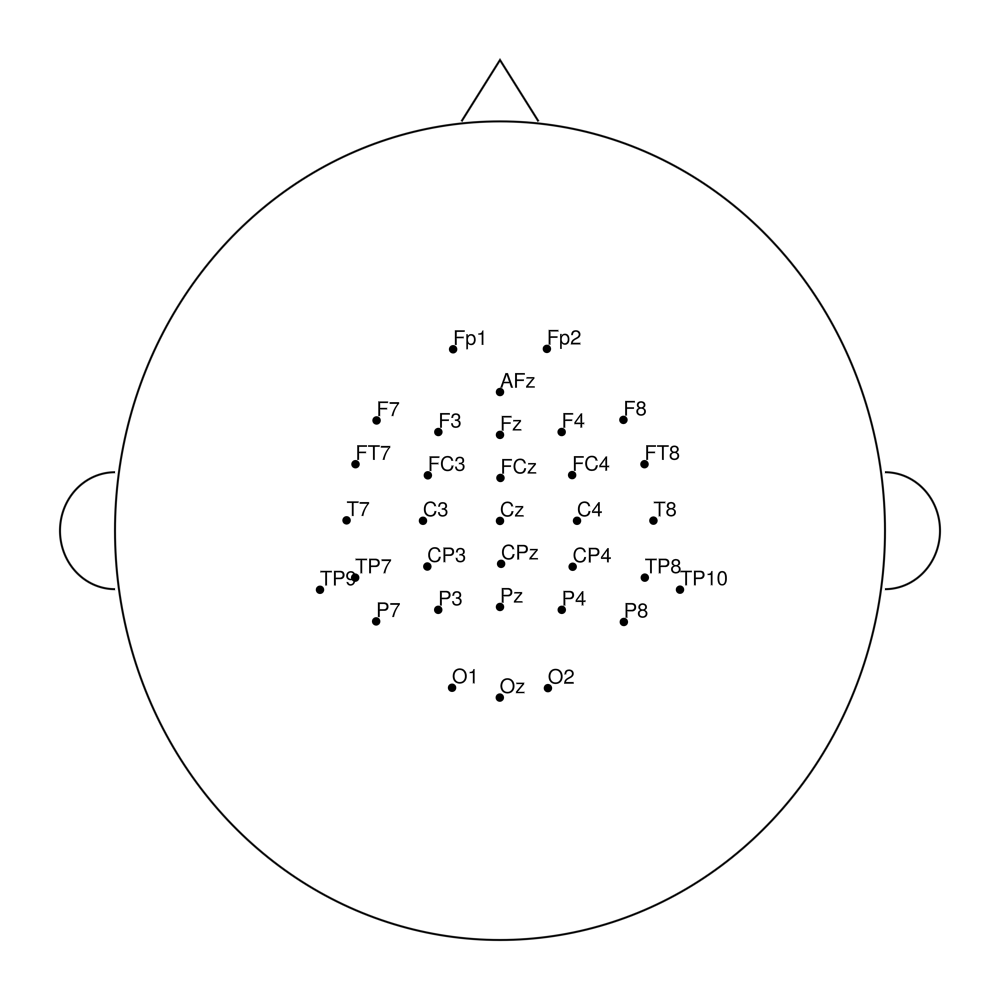

easycapM3

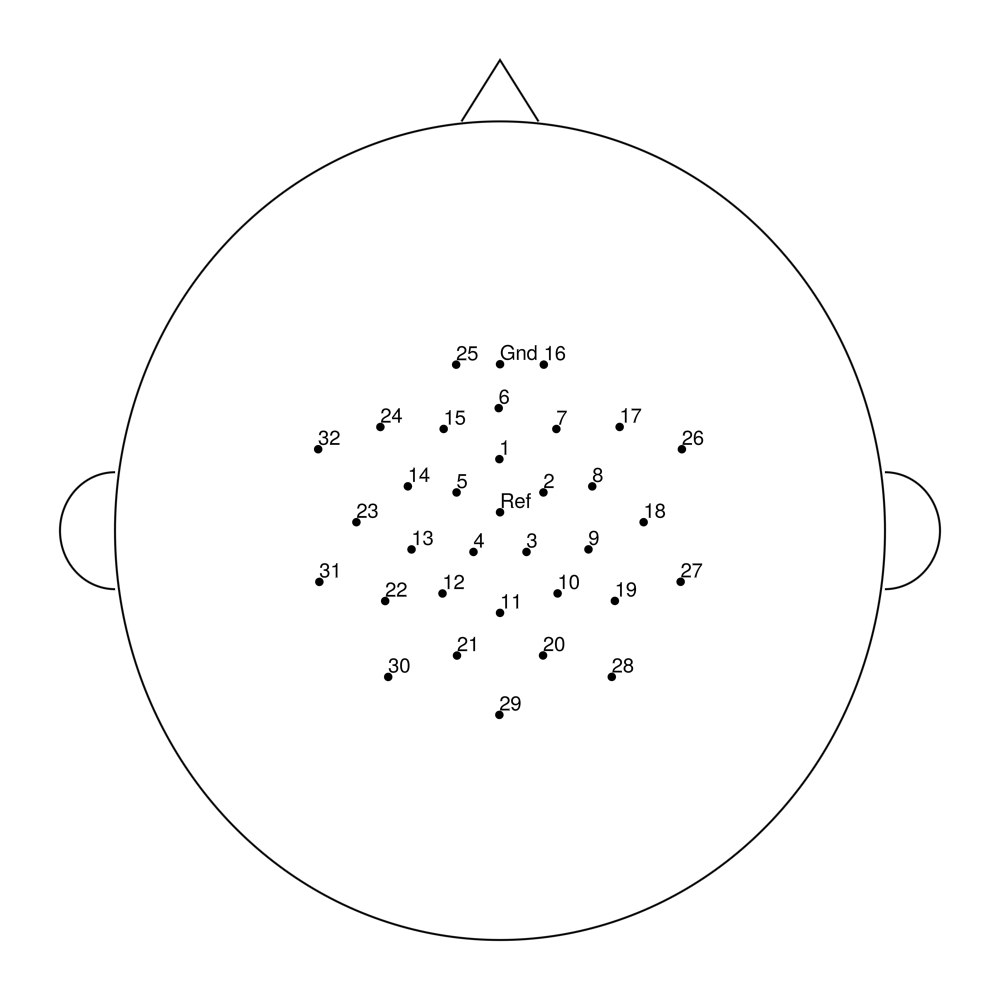

easycapM7

easycapM10

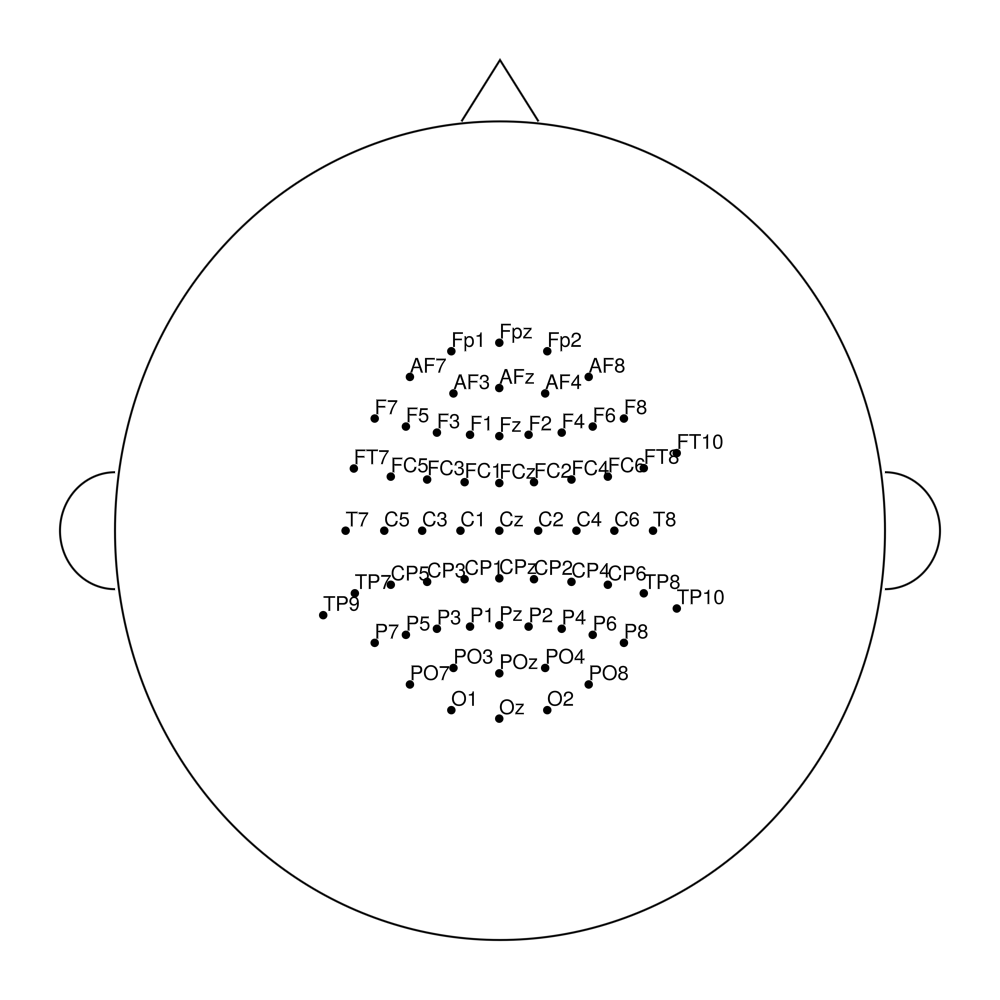

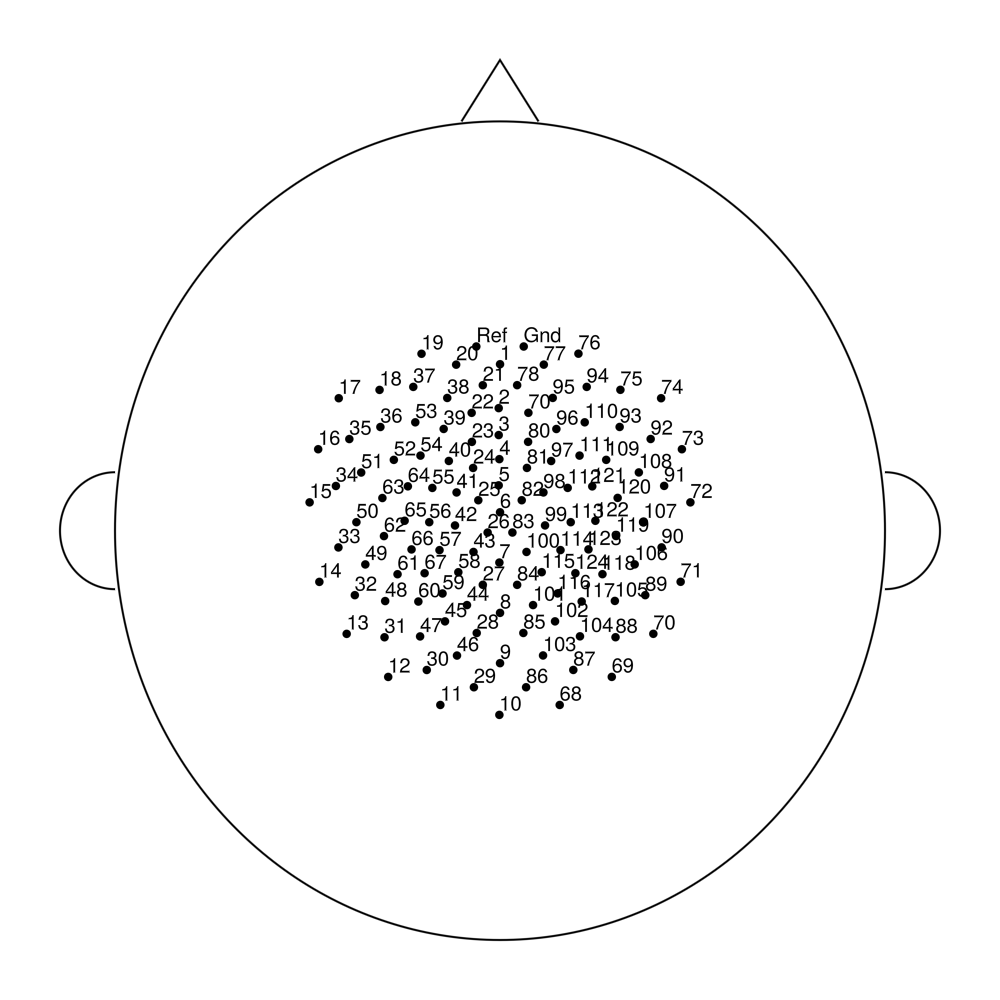

easycapM11

easycapM14

easycapM15

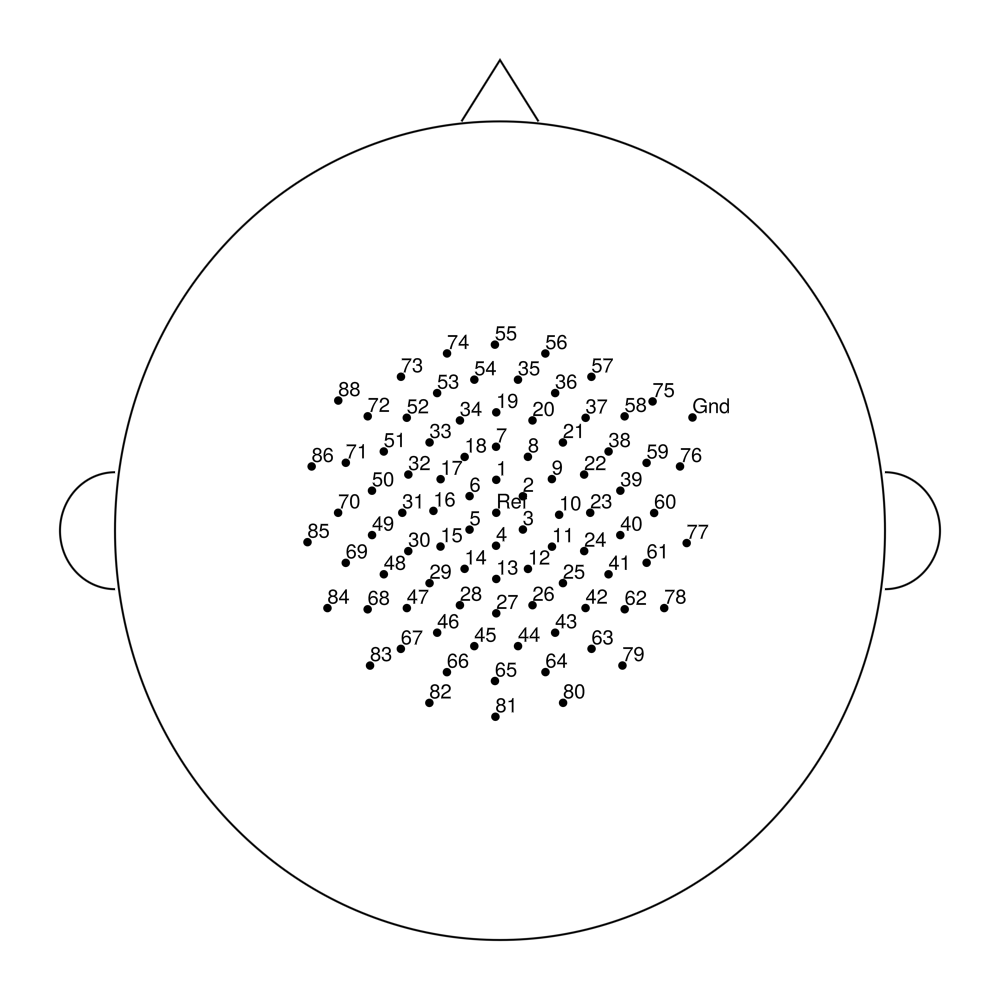

easycapM16

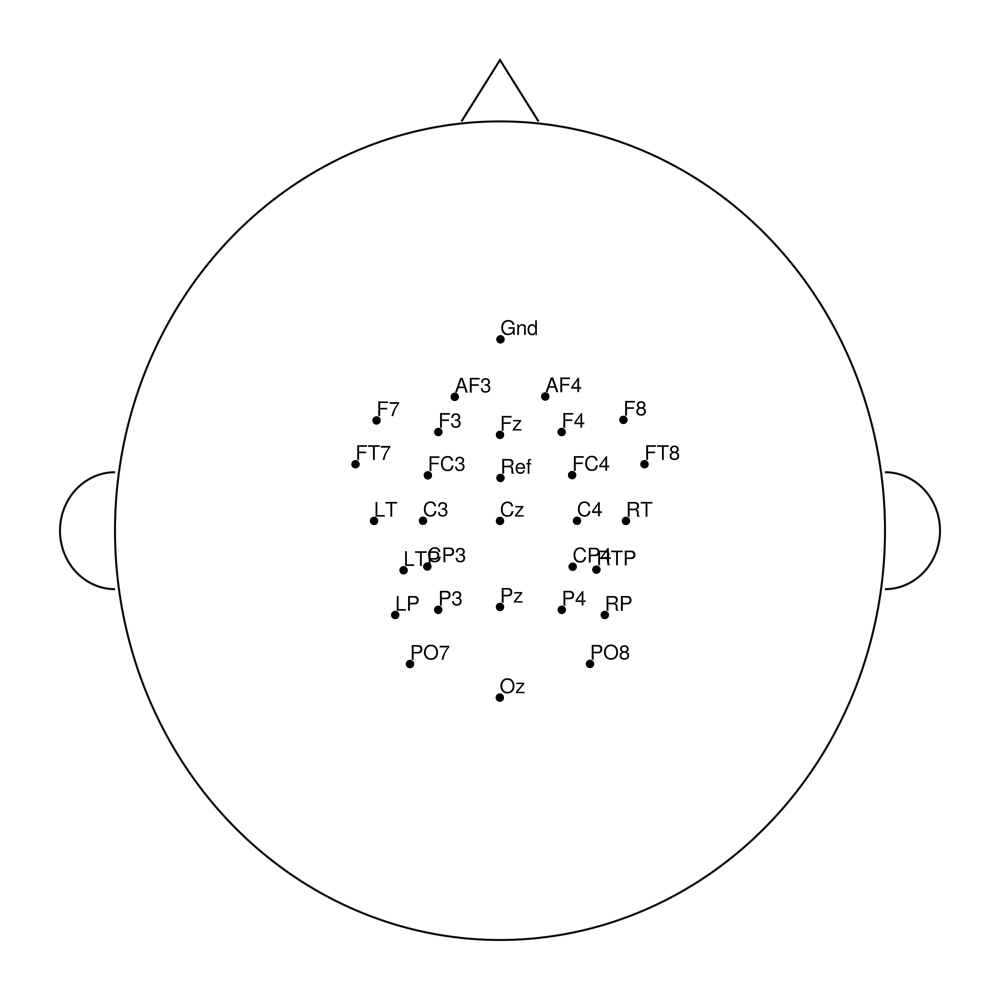

easycapM17

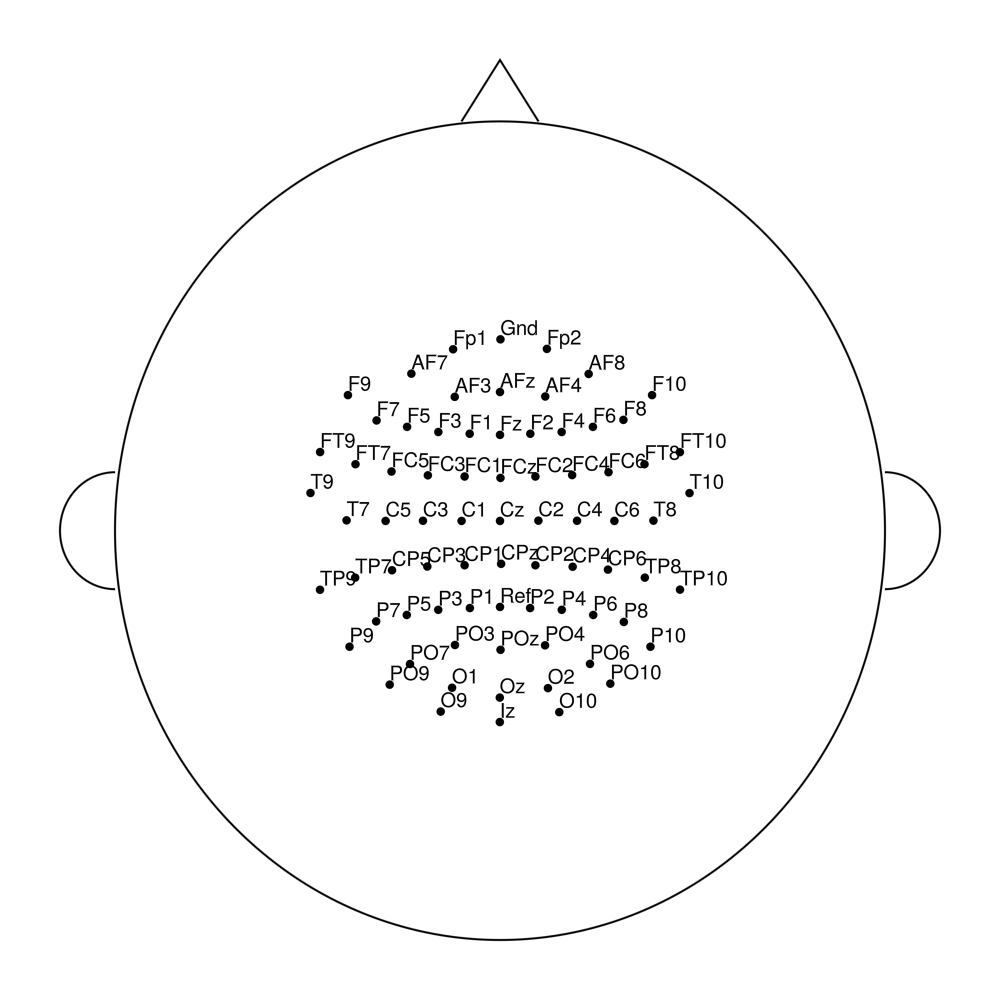

easycapM20

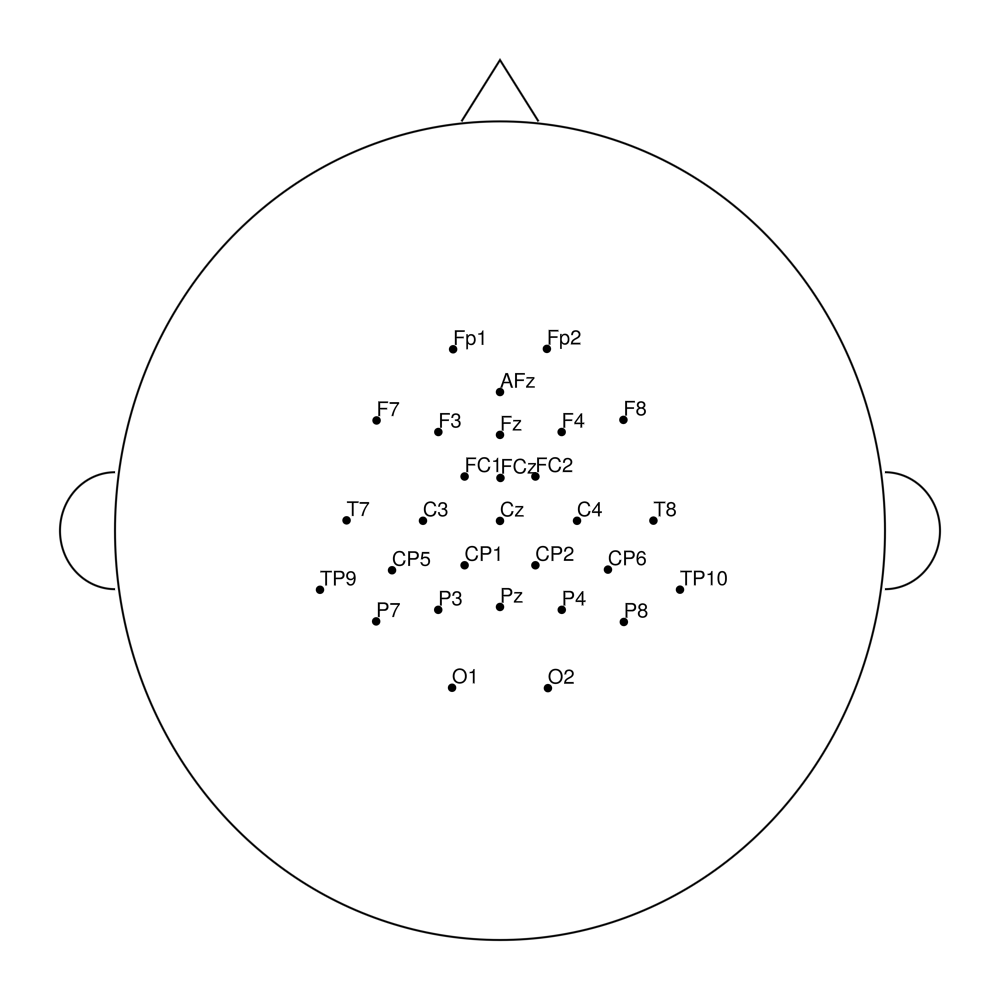

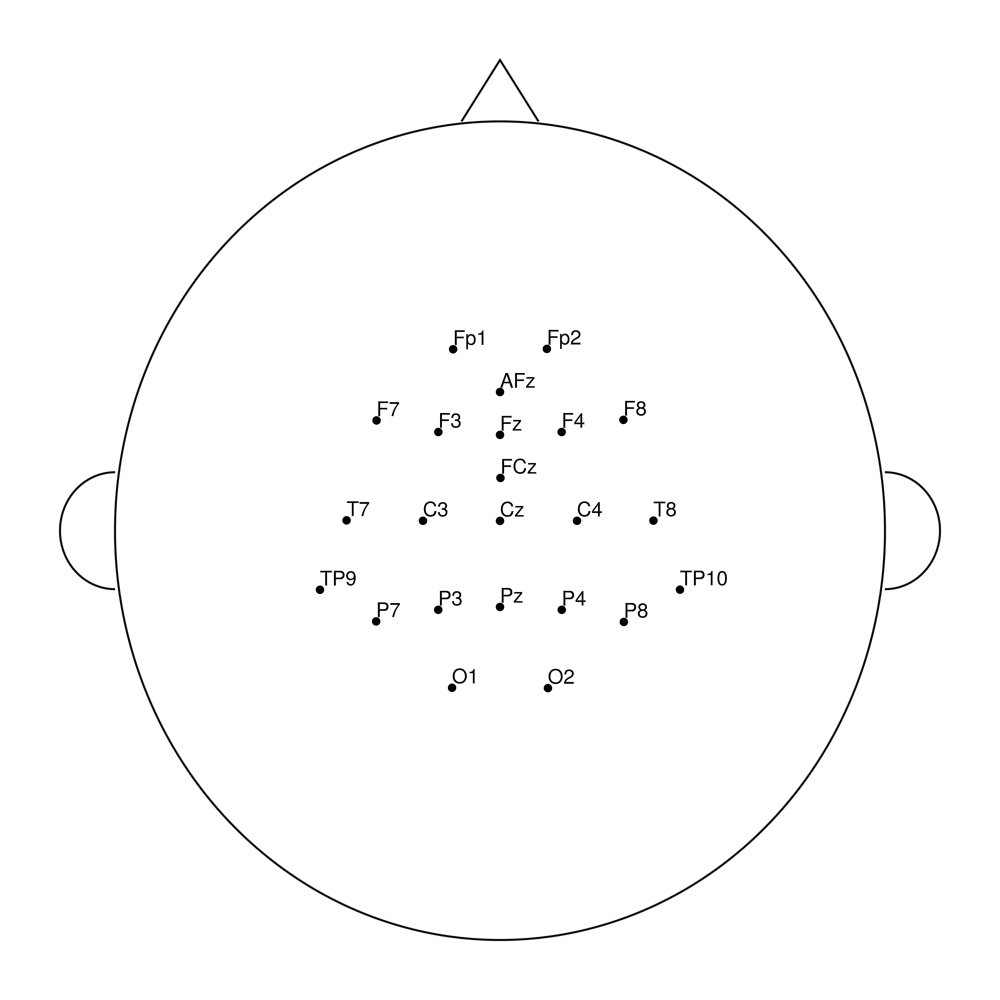

easycapM22

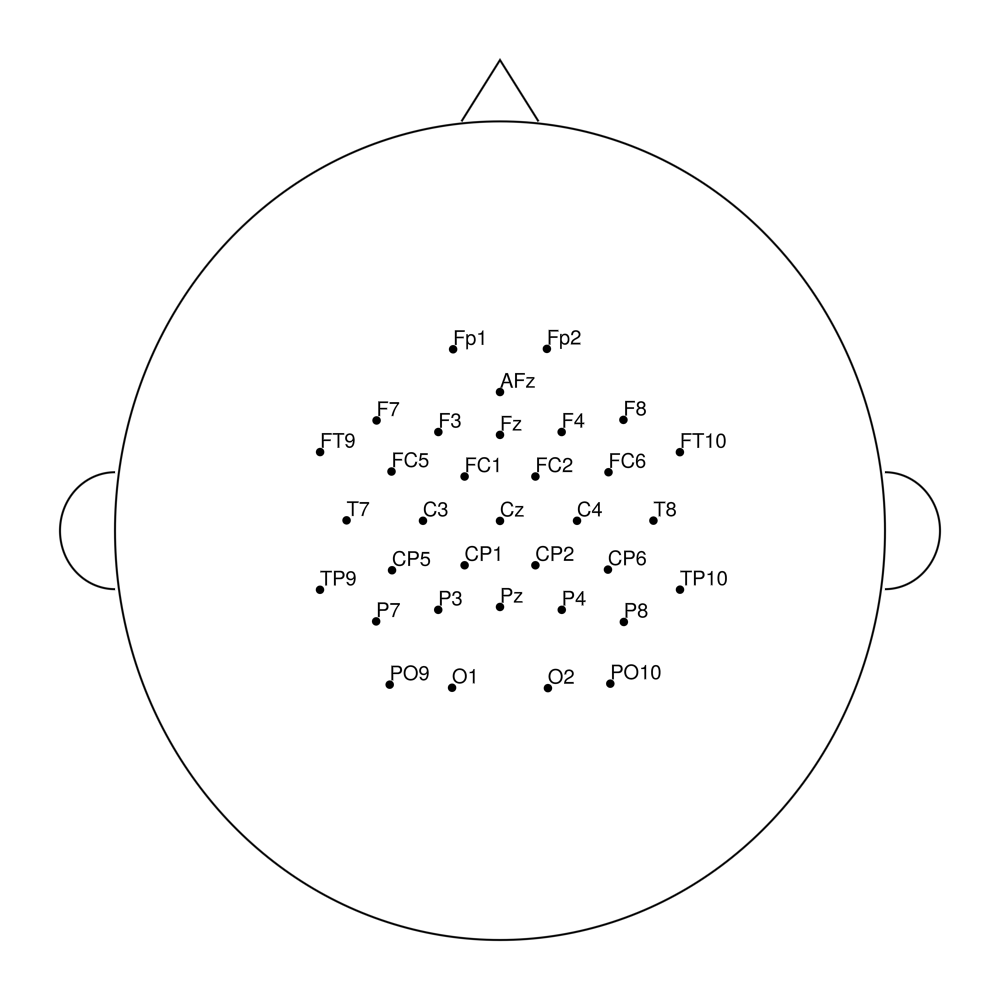

easycapM23

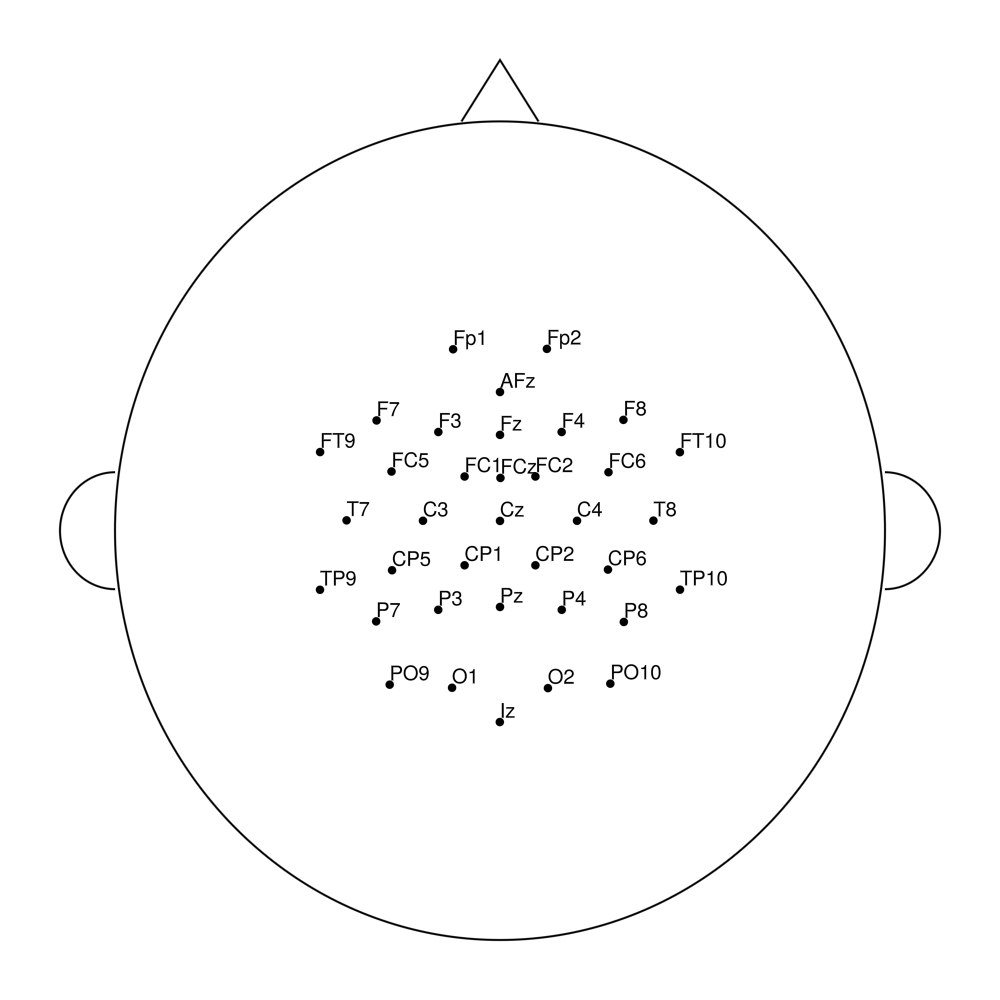

easycapM24

easycapM25

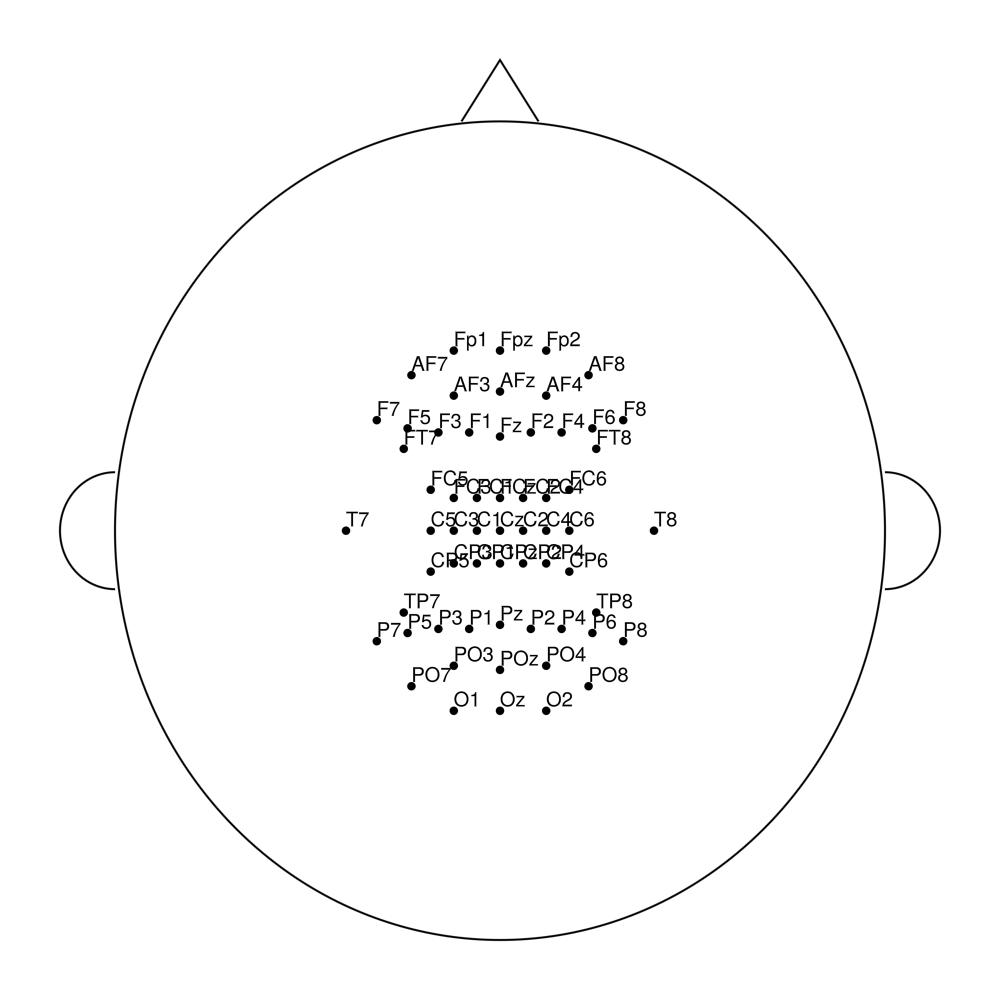

easycapM64

Coordinate Systems

Polar Coordinates (Source of Truth)

• Incidence (inc): Vertical angle in degrees from the vertex (Cz = 0°)

  • 0° = vertex (top of head)

  • 90° = equator (ear level)

  • Values > 90° indicate positions below the equator (e.g., neck electrodes)

• Azimuth (azi): Horizontal angle in degrees

  • 0° = right hemisphere

  • ±90° = midline (front/back)

  • ±180° = left hemisphere

Cartesian Coordinates

Cartesian coordinates are computed on-demand from polar coordinates:

• 2D (x2, y2): Topographic projection for 2D plotting

  • By default, preserve_radial_distance=true maintains anatomical accuracy

  • Electrodes with inc > 90° appear outside the unit circle

• 3D (x3, y3, z3): Spherical projection for 3D visualization

  • Normalized to unit sphere

Related Functions

Layout management and manipulation:

EegFun.read_layout Function

read_layout(file::String)

Reads a layout file in CSV format and returns a DataFrame containing the layout information.

Arguments

• file::String: The path to the CSV file containing the layout data.

Returns

• DataFrame: A DataFrame containing the layout data, with columns for electrode labels, incidence angles, azimuth angles, and calculated Cartesian coordinates (if applicable).

Throws

• EegFunError: If the file does not exist or cannot be accessed.

source

EegFun.validate_layout Function

validate_layout(layout::Layout) -> Layout

Validate that a layout contains all required columns and data.

Check that the layout DataFrame contains the minimum required columns for EEG layout operations.

Arguments

• layout::Layout: The layout object to validate

Returns

• Layout: The validated layout object

Throws

• ArgumentError: If required columns are missing

Required Columns

• :label: Electrode labels (Symbol type)

• :inc: Incidence angles in degrees

• :azi: Azimuth angles in degrees

Examples

layout = read_layout("biosemi64.csv")
validated_layout = validate_layout(layout)

source

EegFun.polar_to_cartesian_xy! Function

polar_to_cartesian_xy!(layout::Layout; normalization_radius::Float64=1.0, preserve_radial_distance::Bool=true)

Converts polar coordinates (incidence and azimuth angles) from a layout into Cartesian coordinates (x, y).

Arguments

• layout::Layout: A Layout containing the layout information with columns for incidence angles (:inc) and azimuth angles (:azi).

• normalization_radius::Real: Maximum radius for electrode positions (default: 1.0). Only used when preserve_radial_distance=false.

• preserve_radial_distance::Bool: If true, preserves true radial distances from polar coordinates, allowing electrodes with inc>90° to appear outside the unit circle (default: true). When false, normalizes all electrodes to fit within normalization_radius.

Throws

• ArgumentError: If required :inc and :azi columns are missing or contain non-numeric values.

Modifies

• The input layout is modified in place to include new columns x2 and y2, which represent the Cartesian coordinates calculated from the polar coordinates.

• Clears any existing neighbour information since coordinates have changed.

Returns

• Nothing. The function modifies the layout directly.

Notes

• When preserve_radial_distance=true, electrodes imported from EEGLAB with inc>90° (e.g., eye electrodes beyond the scalp) will appear outside the standard head circle, matching EEGLAB's topoplot rendering.

source

EegFun.polar_to_cartesian_xyz! Function

polar_to_cartesian_xyz!(layout::Layout)

Converts polar coordinates (incidence and azimuth angles) from a layout into Cartesian coordinates (x, y, z).

Arguments

• layout::Layout: A Layout containing the layout information with columns for incidence angles (:inc) and azimuth angles (:azi).

Throws

• ArgumentError: If required :inc and :azi columns are missing or contain non-numeric values.

Modifies

• The input layout is modified in place to include new columns x3, y3, and z3, which represent the Cartesian coordinates calculated from the polar coordinates.

• Clears any existing neighbour information since coordinates have changed.

Returns

• Nothing. The function modifies the layout directly.

source

EegFun.get_neighbours_xy! Function

get_neighbours_xy!(layout::Layout, distance_criterion::Real)

Get neighbors with automatic computation if needed (mutating version).

Automatically calculate 2D neighbors if they don't exist or if the distance criterion has changed. It caches the results for efficiency.

Arguments

• layout::Layout: The layout object

• distance_criterion::Real: The distance criterion for neighbors in normalized coordinate units (e.g., 0.3–0.5; where 1.0 = the scalp equator at 90° incidence). Think of this as a fraction of the head radius: a value of 0.4 means “neighbours within 40% of the head radius.”

Modifies

• layout: Updates neighbor information and criterion

Examples

get_neighbours_xy!(layout, 0.4)

source

EegFun.get_neighbours_xyz! Function

get_neighbours_xyz!(layout::Layout, distance_criterion::Real)

Get neighbors with automatic computation if needed (mutating version).

Automatically calculate 3D neighbors if they don't exist or if the distance criterion has changed. It caches the results for efficiency.

Arguments

• layout::Layout: The layout object

• distance_criterion::Real: The distance criterion for neighbors in normalized coordinate units (e.g., 0.3–0.5; where 1.0 = the scalp equator at 90° incidence). Think of this as a fraction of the head radius: a value of 0.4 means “neighbours within 40% of the head radius.”

source

EegFun.rename_channel! Function

rename_channel!(dat::EegData, rename_dict::Dict{Symbol, Symbol})

Rename channels in EEG data using a dictionary mapping old names to new names. Modifies the data in place by updating both the data columns and the layout.

Arguments

• dat::EegData: The EEG data object to modify

• rename_dict::Dict{Symbol, Symbol}: Dictionary mapping old channel names to new names

Returns

• nothing (modifies the data in place)

Examples

# Rename Fp1 to Fpz and Fp2 to Fpz
rename_dict = Dict(:Fp1 => :Fpz, :Fp2 => :Fpz)
rename_channel!(dat, rename_dict)

# Rename a single channel
rename_channel!(dat, Dict(:Cz => :Cz_new))

Notes

• Only channels that exist in the data will be renamed

• If multiple channels would be renamed to the same name, an error is thrown to prevent duplicates

• Updates both the data columns and the layout labels

• Clears any cached neighbour information in the layout since channel names have changed

• Properly handles swaps (e.g., Dict(:A => :B, :B => :A) correctly exchanges the channels)

source

rename_channel!(layout::Layout, rename_dict::Dict{Symbol, Symbol})

Rename channels in a Layout object using a dictionary mapping old names to new names. Modifies the layout in place.

Arguments

• layout::Layout: The layout object to modify

• rename_dict::Dict{Symbol, Symbol}: Dictionary mapping old channel names to new names

Returns

• nothing (modifies the layout in place)

Examples

# Rename Fp1 to Fpz and Fp2 to Fpz
rename_dict = Dict(:Fp1 => :Fpz, :Fp2 => :Fpz)
rename_channel!(layout, rename_dict)

# Rename a single channel
rename_channel!(layout, Dict(:Cz => :Cz_new))

Throws

• EegFunError: If multiple channels would be renamed to the same name (duplicate prevention)

Notes

• Only channels that exist in the layout will be renamed

• Clears any cached neighbour information since channel names have changed

source

Layout visualization:

EegFun.plot_layout_2d Function

plot_layout_2d(layout::Layout; neighbours::Bool=false, correlation_matrix::Union{DataFrame, Nothing}=nothing, display_plot::Bool=true, kwargs...)

Create a new figure and plot a 2D EEG electrode layout.

Arguments

• layout: Layout containing electrode positions

• neighbours: Boolean to show interactive neighbour connections (default: false). Ignored if correlation_matrix is provided.

• correlation_matrix: Optional DataFrame from correlation_matrix() to show correlation values on hover (default: nothing). When provided, neighbours is ignored.

• display_plot: Boolean to display the plot (default: true)

Keyword Arguments

All keyword arguments below have sensible defaults. You can override any by passing the corresponding keyword argument.

General Plot Settings

• head_color::Nothing = nothing: Color of the head shape outline.

• head_linewidth::Int64 = 2: Line width of the head shape outline.

• head_radius::Int64 = 1: Radius of the head shape (normalized units).

Further Legend Options EegFun.jl passes any argument prefixed with legend_ directly to Makie's legend system. While only the most common options are listed above, you can pass any standard Makie legend attribute (e.g., legend_bgcolor, legend_patchsize). See the Makie.jl documentation for a full list of discoverable arguments.

Keyword Arguments

All keyword arguments below have sensible defaults. You can override any by passing the corresponding keyword argument.

General Plot Settings

• point_color::Nothing = nothing: Color of electrode points.

• point_marker::Symbol = :circle: Marker style for electrode points.

• point_markersize::Int64 = 12: Size of electrode point markers.

• point_plot::Bool = true: Whether to plot electrode points.

Further Legend Options EegFun.jl passes any argument prefixed with legend_ directly to Makie's legend system. While only the most common options are listed above, you can pass any standard Makie legend attribute (e.g., legend_bgcolor, legend_patchsize). See the Makie.jl documentation for a full list of discoverable arguments.

Keyword Arguments

All keyword arguments below have sensible defaults. You can override any by passing the corresponding keyword argument.

General Plot Settings

• label_align::Tuple{Symbol, Symbol} = (:left, :bottom): Text alignment for electrode labels (e.g., (:center, :center)).

• label_color::Nothing = nothing: Color of electrode labels.

• label_fontsize::Int64 = 20: Font size for electrode labels.

• label_plot::Bool = true: Whether to plot electrode labels.

• label_xoffset::Int64 = 0: X-axis offset for electrode labels.

• label_yoffset::Int64 = 0: Y-axis offset for electrode labels.

• label_zoffset::Int64 = 0: Z-axis offset for electrode labels (3D only).

Further Legend Options EegFun.jl passes any argument prefixed with legend_ directly to Makie's legend system. While only the most common options are listed above, you can pass any standard Makie legend attribute (e.g., legend_bgcolor, legend_patchsize). See the Makie.jl documentation for a full list of discoverable arguments.

Returns

• The figure and axis objects

Example

layout = read_layout("./layouts/biosemi64.csv")
polar_to_cartesian_xy!(layout)
plot_layout_2d(layout)
# With neighbour interactivity
plot_layout_2d(layout, neighbours=true)
# With correlation matrix
cm = correlation_matrix(dat)
plot_layout_2d(layout, correlation_matrix=cm)

source

EegFun.plot_layout_3d Function

plot_layout_3d(layout::Layout; neighbours::Bool=false, display_plot::Bool=true, kwargs...)

Create a new figure and plot a 3D EEG electrode layout.

Arguments

• layout: Layout containing electrode positions

• neighbours: Boolean to show interactive neighbour connections (default: false)

• display_plot: Boolean to display the plot (default: true)

Keyword Arguments

All keyword arguments below have sensible defaults. You can override any by passing the corresponding keyword argument.

General Plot Settings

• head_color::Nothing = nothing: Color of the head shape outline.

• head_linewidth::Int64 = 2: Line width of the head shape outline.

• head_radius::Int64 = 1: Radius of the head shape (normalized units).

Further Legend Options EegFun.jl passes any argument prefixed with legend_ directly to Makie's legend system. While only the most common options are listed above, you can pass any standard Makie legend attribute (e.g., legend_bgcolor, legend_patchsize). See the Makie.jl documentation for a full list of discoverable arguments.

Keyword Arguments

All keyword arguments below have sensible defaults. You can override any by passing the corresponding keyword argument.

General Plot Settings

• point_color::Nothing = nothing: Color of electrode points.

• point_marker::Symbol = :circle: Marker style for electrode points.

• point_markersize::Int64 = 12: Size of electrode point markers.

• point_plot::Bool = true: Whether to plot electrode points.

Further Legend Options EegFun.jl passes any argument prefixed with legend_ directly to Makie's legend system. While only the most common options are listed above, you can pass any standard Makie legend attribute (e.g., legend_bgcolor, legend_patchsize). See the Makie.jl documentation for a full list of discoverable arguments.

Keyword Arguments

All keyword arguments below have sensible defaults. You can override any by passing the corresponding keyword argument.

General Plot Settings

• label_align::Tuple{Symbol, Symbol} = (:left, :bottom): Text alignment for electrode labels (e.g., (:center, :center)).

• label_color::Nothing = nothing: Color of electrode labels.

• label_fontsize::Int64 = 20: Font size for electrode labels.

• label_plot::Bool = true: Whether to plot electrode labels.

• label_xoffset::Int64 = 0: X-axis offset for electrode labels.

• label_yoffset::Int64 = 0: Y-axis offset for electrode labels.

• label_zoffset::Int64 = 0: Z-axis offset for electrode labels (3D only).

Further Legend Options EegFun.jl passes any argument prefixed with legend_ directly to Makie's legend system. While only the most common options are listed above, you can pass any standard Makie legend attribute (e.g., legend_bgcolor, legend_patchsize). See the Makie.jl documentation for a full list of discoverable arguments.

Returns

• The figure and axis objects

Example

layout = read_layout("./layouts/biosemi64.csv")
polar_to_cartesian_xyz!(layout)
plot_layout_3d(layout)
# With neighbour interactivity
plot_layout_3d(layout, neighbours=true)

source

See Also

• Layout plotting demo

• Layout types

• Data structures
